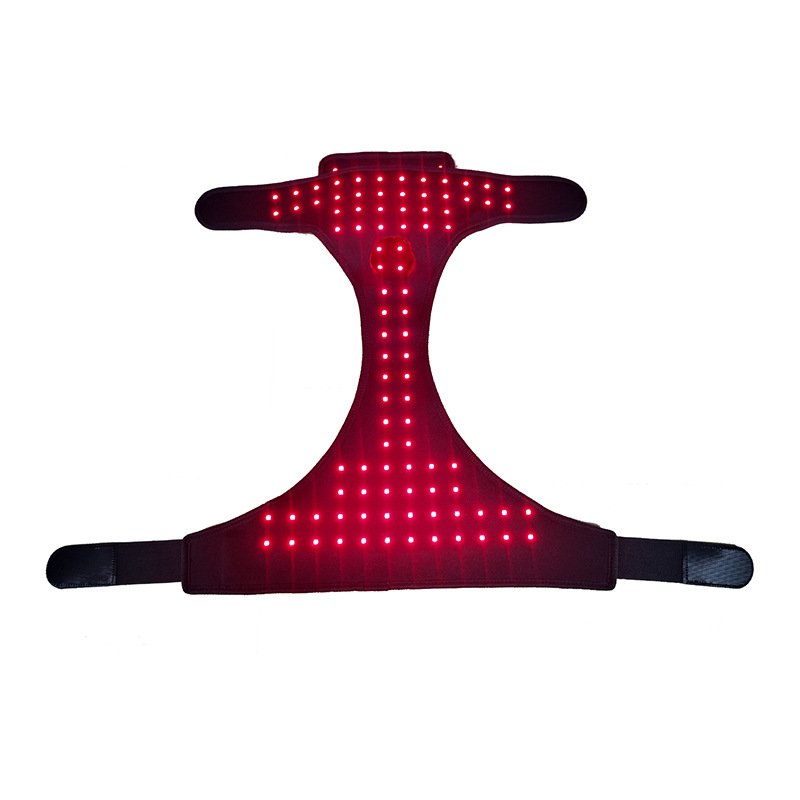

This rechargeable Red Light Therapy Underwear Device combines 660 nm red light and 850 nm near-infrared light in an adjustable two-panel design. It provides targeted light coverage around the lower abdomen, pelvic and groin areas for men’s personal wellness routines.
The device features 128 triple-chip LED packages, representing 384 individual LED chips, together with selectable wavelength modes, 10 Hz pulse mode and an automatic 15-minute timer. Private label and OEM customization options are available for brands, distributors and specialized wellness retailers.
Product Overview
This product is a purpose-built wearable light therapy device rather than everyday underwear.
The main light panel covers the front pelvic area, while the independently adjustable lower panel provides closer coverage around the groin. Both sections are secured by adjustable Velcro straps, allowing the user to position the light panels according to body shape and preferred coverage.
Compared with a single Red Light Therapy Underwear Pad, the two-panel structure provides wider and more controlled light placement while remaining easy to wear at home.
Key Features
- 660 nm red light and 850 nm near-infrared light
- 128 triple-chip LED packages with 384 individual LED chips
- Combined, red-only and near-infrared-only modes
- Continuous light and 10 Hz pulse operation
- Two-panel design for pelvic and groin coverage
- Adjustable Velcro waist and lower straps
- Rechargeable 3600 mAh battery
- USB Type-C charging
- Automatic 15-minute timer
- Simple one-button operation
- Cordless and suitable for personal use at home
- Wipe-clean surface
- OEM and private label options available
Two-Panel Coverage Design
The main panel sits across the front of the lower abdomen and pelvic area. A second panel can be adjusted separately to provide closer coverage around the groin.
This structure offers several practical advantages:
- The two light areas can be positioned independently.
- Adjustable straps help keep both panels close to the body.
- The design fits a wider range of body shapes.
- Users can wear it directly against the skin or over thin underwear.
- The rechargeable battery allows cordless use.
For more efficient light delivery, the LED surface should remain flat and close to the intended area during use.
Selectable Light Modes
| Mode | Description |
|---|---|
| Combined Mode | Operates 660 nm red light and 850 nm near-infrared light together |
| Red Light Mode | Operates visible 660 nm red light only |
| Near-Infrared Mode | Operates 850 nm near-infrared light only |
| Pulse Mode | Delivers the selected wavelength mode at 10 Hz |
| Continuous Mode | Keeps the selected wavelengths operating continuously |
The 850 nm near-infrared LEDs produce little or no visible light. This is normal and does not mean that the LEDs are not working.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Wearable red and near-infrared light device |
| Intended Area | Lower abdomen, pelvic and groin areas |
| Wavelengths | 660 nm red light and 850 nm near-infrared light |
| LED Configuration | 128 triple-chip LED packages |
| Total LED Chips | 384 |
| LED Chip Ratio | 128 × 660 nm and 256 × 850 nm |
| Light Modes | Red only, near-infrared only or combined |
| Operating Modes | Continuous or 10 Hz pulse |
| Intensity Adjustment | Not included in the standard version |
| Timer | 15 minutes with automatic shut-off |
| Operation | One-button control |
| Battery | Built-in 3600 mAh rechargeable battery |
| Charging | USB Type-C |
| Fit | Adjustable Velcro waist and lower straps |
| Reference Dimensions | 86.3 × 53.3 × 58.4 cm |
| Main Panel Width | Approximately 53.3 cm |
| Lower Panel Width | Approximately 17.7 cm |
| Lower Strap Span | Approximately 86.3 cm |
| Standard Color | Blue |
| Cleaning Method | Wipe clean only |
| Reference Compliance | CE, UKCA, RoHS and SAA options, subject to final configuration |
| Standard Warranty | One year |
| Customization | Logo, color, packaging, manual and selected functions |
Specifications may be adjusted according to the confirmed production version and customization requirements.
Suitable Business Applications
This product can be considered by:
- Men’s wellness and personal care brands
- Red light therapy brands
- Health and wellness product distributors
- Online and specialty retailers
- Private label product companies
- Wellness clinics with retail product programs
- Companies expanding their range of wearable Red Light Therapy Products
Product positioning, labeling and permitted claims should be reviewed according to the regulations of the intended market.
OEM and Private Label Customization
We can support standard private label projects as well as selected product modifications. Available options may include:
Branding
- Logo printing or label application
- Customized product name
- Branded controller markings
- Barcode, SKU and product labels
Product Appearance
- Fabric and trim colors
- Strap color and length
- Packaging design
- Carrying or storage bag
Product Configuration
- Wavelength combinations
- LED wavelength ratio
- Panel dimensions and coverage layout
- Timer, pulse and controller functions
- Battery and charging configuration
Technical modifications are subject to engineering evaluation, testing requirements and order quantity.
Packaging and Documents
- Custom retail box
- User manual and quick-start guide
- Warning and compliance labels
- Market-specific language versions
- Product photography and packaging files
- Testing and compliance support for the selected configuration
For customized orders, please provide the target market, estimated quantity, preferred branding and required product functions. We will review the most practical production solution before sampling.
What Is Included
- 1 × Red Light Therapy Underwear for Men
- 1 × USB Type-C charging cable
- 1 × User manual
- 1 × Standard or customized packaging box
Packaging contents can be adjusted for private label orders.
How to Use
- Fully charge the battery before the first use.
- Position the main panel across the lower abdomen and pelvic area.
- Adjust the waist straps until the panel lies flat against the body.
- Position and secure the lower panel around the intended area.
- Press the power button to begin the combined red and near-infrared mode.
- Press the button again to select a different wavelength mode.
- Press and hold the button for approximately three seconds to activate the 10 Hz pulse mode.
- The device will switch off automatically after 15 minutes.
Follow the approved user manual for recommended session frequency and maximum daily use.
Cleaning and Storage
- Disconnect the charging cable before cleaning.
- Wipe the surface gently with a soft, slightly damp cloth.
- Allow the device to air-dry completely.
- Do not machine wash or submerge it in water.
- Do not sharply fold, twist or compress the LED sections.
- Store the device flat in a cool and dry place.
- Keep it away from direct sunlight and high temperatures.
Important Use Information
This product is intended to support general wellness and personal comfort. It is not intended to diagnose, treat, cure or prevent any disease or medical condition.
Users should consult a qualified healthcare professional before use if they:
- Have a pacemaker or another electronic implant
- Take photosensitizing medication
- Have a known condition affecting the pelvic or groin area
- Have recently received an injection or undergone a medical procedure in the intended area
- Have active or suspected cancerous lesions
- Experience unusual sensitivity to light
Stop using the device if persistent irritation, pain or discomfort occurs.
Frequently Asked Questions
1. Does “384 LEDs” mean 384 separate lamp beads?
The device uses 128 triple-chip LED packages containing a total of 384 individual LED chips. The standard chip ratio is 128 red-light chips and 256 near-infrared chips.
2. Can red and near-infrared light operate separately?
Yes. Users can select red light only, near-infrared light only or both wavelengths together.
3. Why are some LEDs not visibly illuminated?
The 850 nm near-infrared wavelength is outside the main visible range of the human eye. It may appear very dim or completely invisible even when operating normally.
4. Is the product size adjustable?
Yes. The waist and lower straps use adjustable Velcro closures to accommodate different body shapes. Final size ranges can also be reviewed for customized projects.
5. Should the device be used directly against the skin?
The product can be worn directly against clean, dry skin or over thin underwear. Closer contact normally reduces light loss caused by fabric or distance.
6. Can the product be washed?
No. The LED panels and electrical components must not be submerged or machine washed. Clean the surface with a slightly damp cloth and allow it to air-dry.
7. How long is one session?
The standard timer is 15 minutes, after which the device switches off automatically. Recommended frequency should follow the approved user manual.
8. Can we order a sample before placing a bulk order?
Sample evaluation is normally available. The sample configuration, cost and delivery arrangement can be confirmed according to the intended market and customization requirements.
9. Can the product carry our own brand?
Yes. Private label services can include logo application, packaging, labels, user manuals and selected appearance or functional changes.
10. Can this product be marketed as a medical or fertility device?
The standard version should be positioned as a general wellness product. Medical, fertility or disease-treatment claims require appropriate evidence, testing and regulatory approval in the destination market.
Develop Your Private Label Version
Please send us your target market, estimated order quantity, preferred logo and packaging requirements. We can provide a standard sample or review a customized WP062 solution for your product line.
