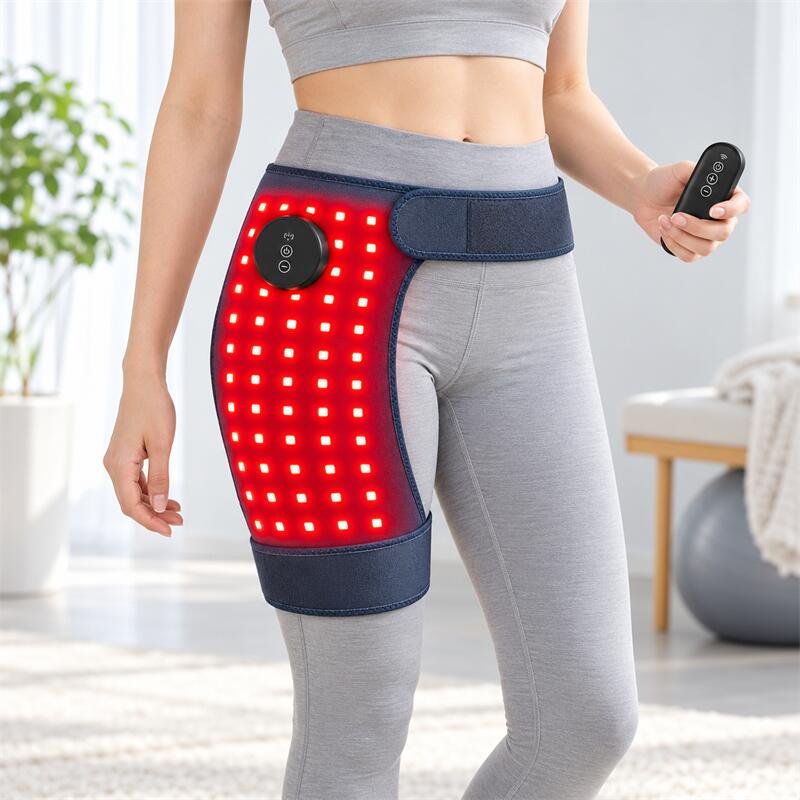

This rechargeable red light therapy hip wrap combines 660nm red light, 850nm near-infrared light and adjustable vibration in one wearable design.

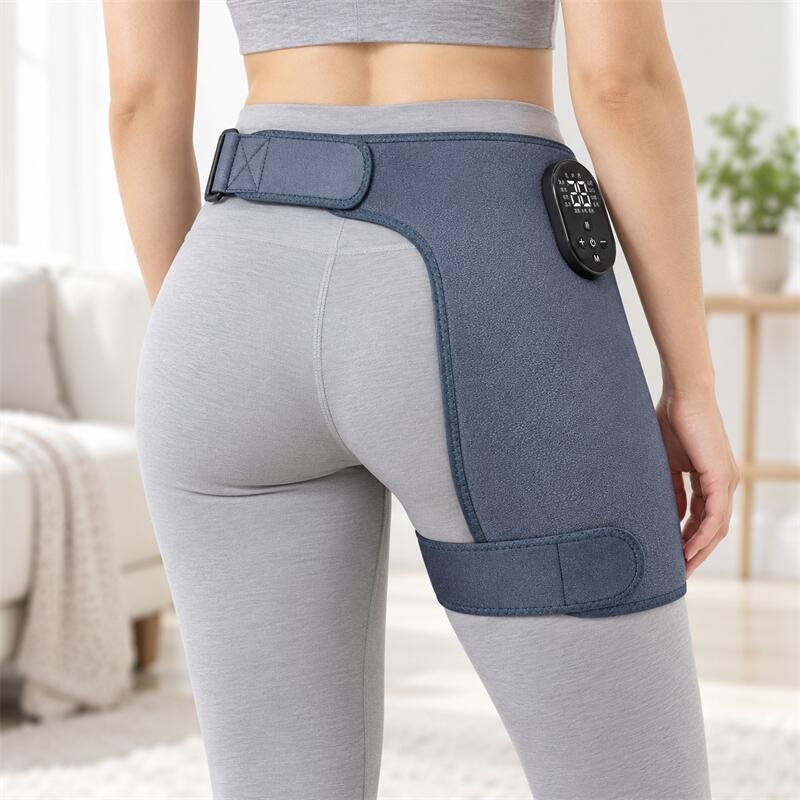

The flexible pad sits over the hip, outer thigh or gluteal area. Adjustable fastening sections keep it in position while the user is sitting, standing or resting. As it works without a wall connection during use, it is suitable for home routines, gyms, clinics and travel.
Three LED configurations are available: 42, 56 and 72 LEDs. Buyers can also choose between 2000mAh and 3000mAh controllers, with or without a wireless remote.
Key Features
660nm and 850nm Dual Wavelengths
The LED modules combine visible 660nm red light with 850nm near-infrared light for targeted use around the hip and upper leg.
Three LED Configurations
Choose from 42, 56 or 72 LEDs. All three versions use the same wrap dimensions, while the higher LED counts provide a denser light layout.
Adjustable Vibration
Depending on the selected controller, the wrap provides up to eight vibration modes and 19 or 20 intensity levels. Users can begin at a low setting and adjust it according to personal comfort.
Three Light Levels
The red and near-infrared light output can be adjusted through three levels, making it easier to select a comfortable setting for different routines.
Rechargeable and Portable
The controller supports Type-C charging. A fully charged battery allows cordless use without staying close to a power outlet.
Secure, Adjustable Fit
The wrap uses hook-and-loop fasteners and an extension strap to fit around the hip and upper thigh. The anti-slip fastening design helps reduce movement during use.

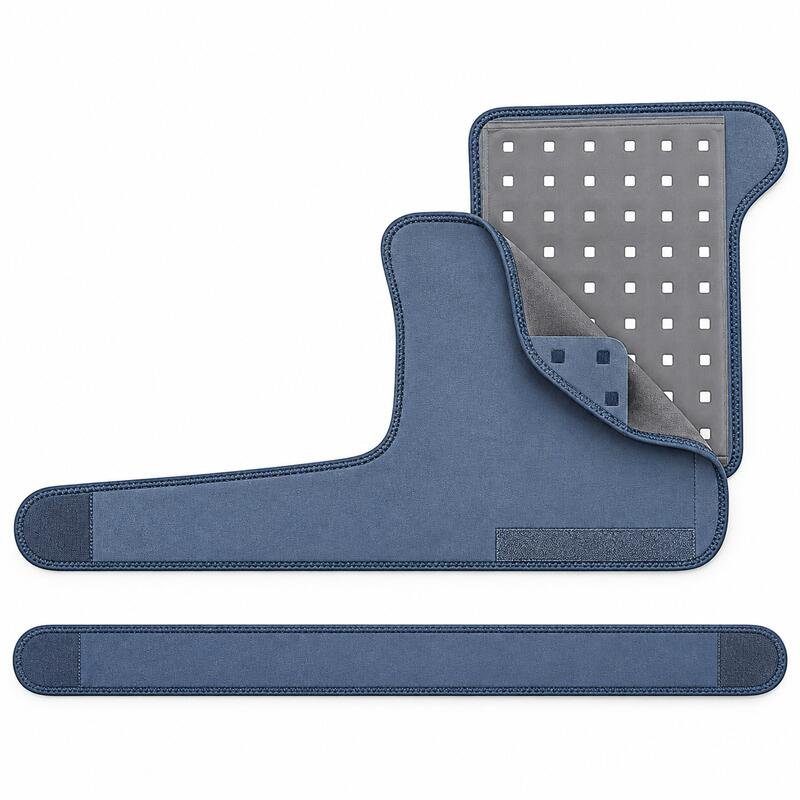

Easy-to-Clean Inner Layer
The replaceable inner liner can be removed for easier cleaning and routine maintenance.
Product Specifications
| Item | Specification |
|---|---|
| Model | WF064 |
| Product type | Rechargeable red light therapy hip wrap |
| Wavelengths | 660nm red light and 850nm near-infrared light |
| LED options | 42, 56 or 72 LEDs |
| Light intensity | 3 levels |
| Vibration modes | Up to 8 modes |
| Vibration intensity | 19 or 20 levels, depending on controller |
| Controller options | Round 2000mAh, curved 2000mAh or 3000mAh controller |
| Remote control | Optional |
| Charging port | Type-C |
| Rated charging voltage | 5V |
| Input current | Up to 3000mA |
| Output power | Up to 10W |
| Main wrap size | Approximately 56 × 23 cm |
| Light area | Approximately 25 × 23 cm |
| Extension strap | Approximately 90 cm |
| Fastening | Adjustable hook-and-loop straps |
| Controller housing | ABS |
| Battery type | Rechargeable lithium-polymer battery |
| Warranty | 12 months |

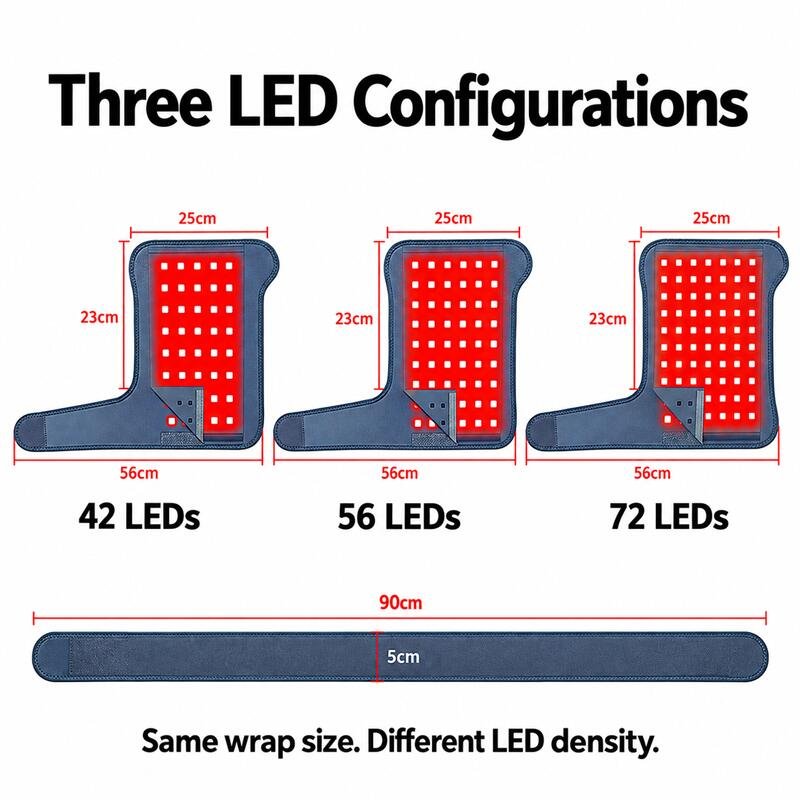

LED Options
| Version | LED Quantity | Wrap Size | Suitable For |
|---|---|---|---|
| Standard | 42 LEDs | 56 × 23 cm | Basic targeted light coverage |
| Enhanced | 56 LEDs | 56 × 23 cm | A more closely spaced LED layout |

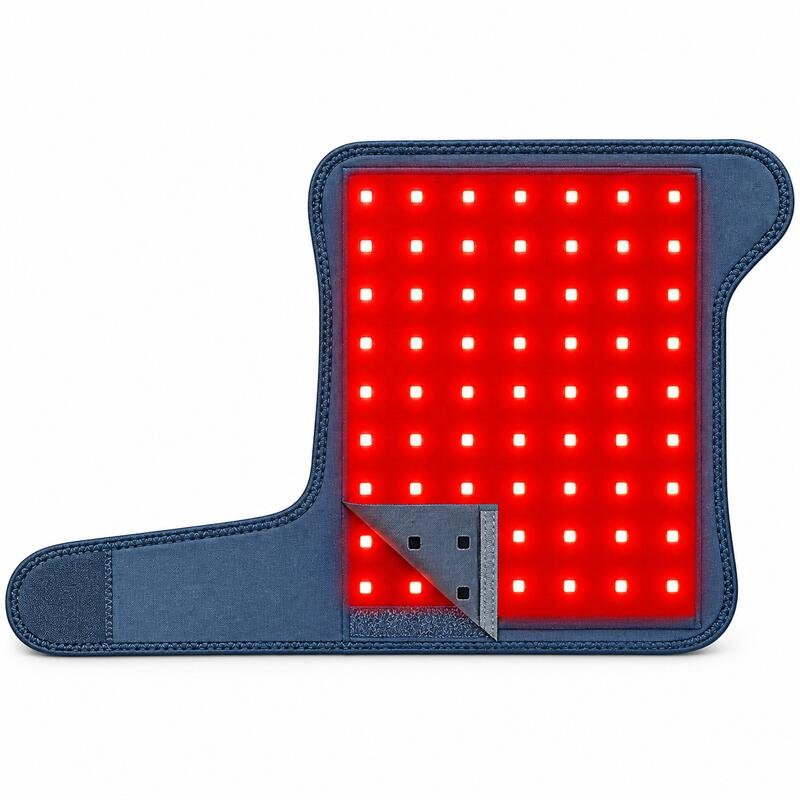

| High Density | 72 LEDs | 56 × 23 cm | The highest LED density in this series |
The outside dimensions remain the same. The main difference is the number and spacing of the LED modules.
Controller and Battery Options
| Controller | Battery Capacity | Approximate Runtime | Remote Control |
|---|---|---|---|
| Round controller | 2000mAh | Up to 180 minutes | Optional |
| Curved controller | 2000mAh | Up to 180 minutes | Optional |
| High-capacity controller | 3000mAh | Up to 270 minutes | Optional |
Charging takes approximately 45 minutes under suitable charging conditions. Actual runtime depends on the selected light level, vibration setting, battery condition and operating environment.
Designed for Targeted Coverage
The wrap can be positioned around areas such as:
- Hip
- Outer thigh
- Gluteal area
- Upper leg
- Side of the pelvis
Its wearable shape keeps the light-emitting surface close to the selected area while leaving the user’s hands free.
How to Use
- Fully charge the controller before first use.
- Place the LED side against the intended hip or upper-thigh area.
- Secure the waist and leg fastening sections without overtightening.
- Turn on the light and select one of the three output levels.
- If required, activate vibration and begin with a low intensity.
- Turn the unit off after use and clean the contact surface according to the instructions.

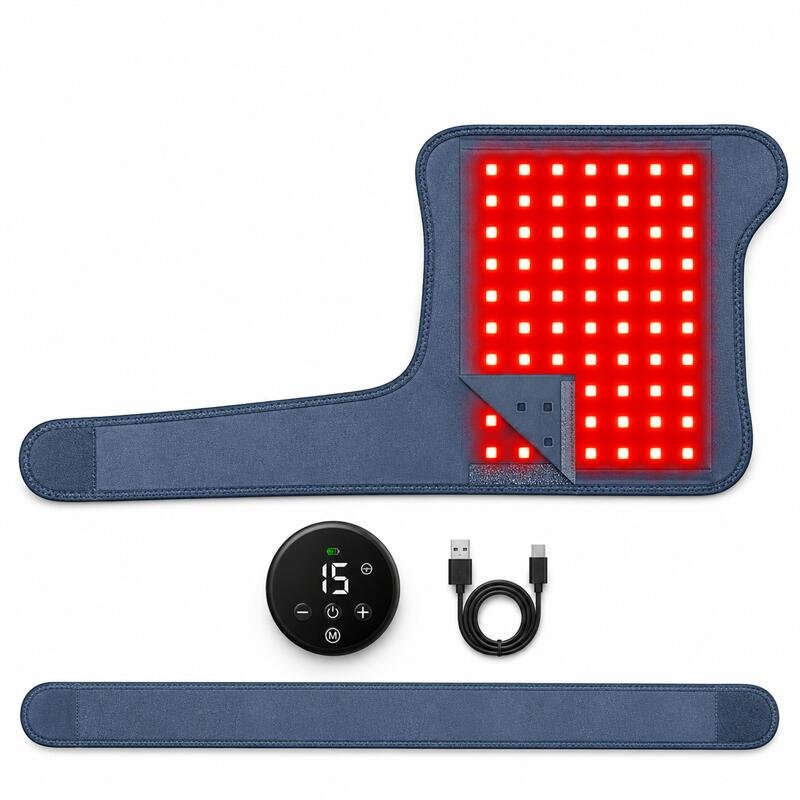

What Is Included
- Red light therapy hip wrap
- Rechargeable controller
- Extension strap
- Type-C charging cable
- Instruction manual
- Packaging box
- Wireless remote control, if selected
Available Customization
The product can be configured for different market requirements. Available options include:
- 42, 56 or 72 LED layouts
- 2000mAh or 3000mAh battery
- Round, curved or high-capacity controller
- Remote-control or non-remote version
- Logo printing
- Instruction manual and packaging design
- Plug and charging-accessory selection
- LED and functional configuration subject to order requirements
Final specifications should be confirmed before production.
Frequently Asked Questions
What is the difference between the 42, 56 and 72 LED versions?
The wrap size is the same. The higher-count versions use a denser LED arrangement across the treatment area.
Does the product include a separate heating function?
The confirmed functions are red and near-infrared light plus vibration. The light may produce mild warmth during use, but it should not be described as an independently temperature-controlled heating pad unless that function is added to the selected configuration.
Can the vibration be turned off?
Yes. The light and vibration settings can be adjusted according to the controller configuration, allowing the wrap to be used with light only when required.
Is the wireless remote included?
The remote is optional. Versions with and without a remote are available.
Can the wrap be washed?
Do not immerse the controller, battery or electrical parts in water. Remove the detachable inner liner where applicable and follow the supplied cleaning instructions.
Is it suitable for every user?
This product is intended for external wellness use. Users who are pregnant, photosensitive, using implanted electronic devices or receiving medical treatment should consult a qualified professional before use. Do not use it over open wounds or irritated skin.
