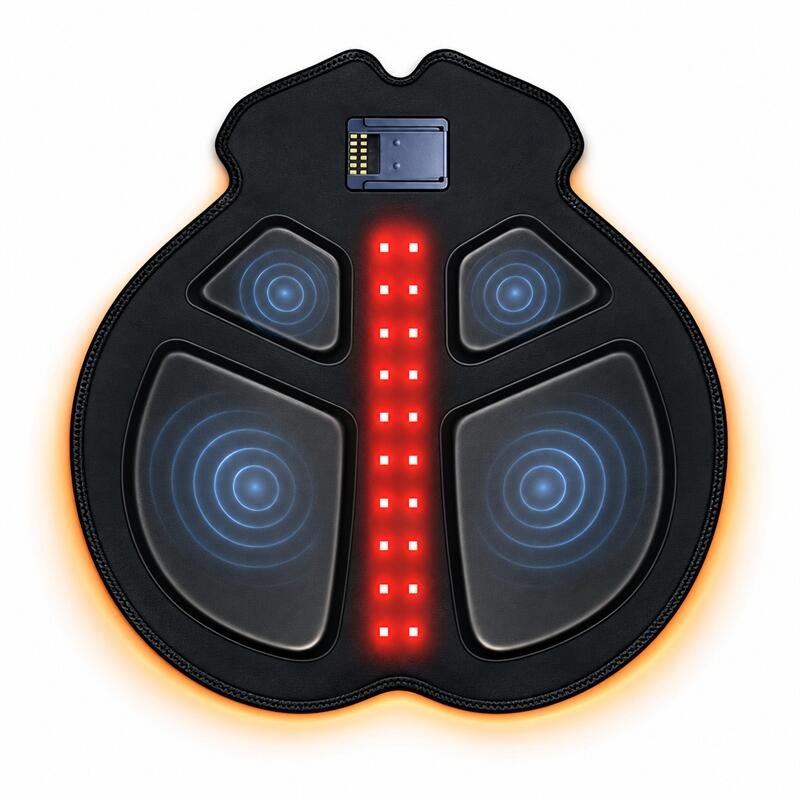

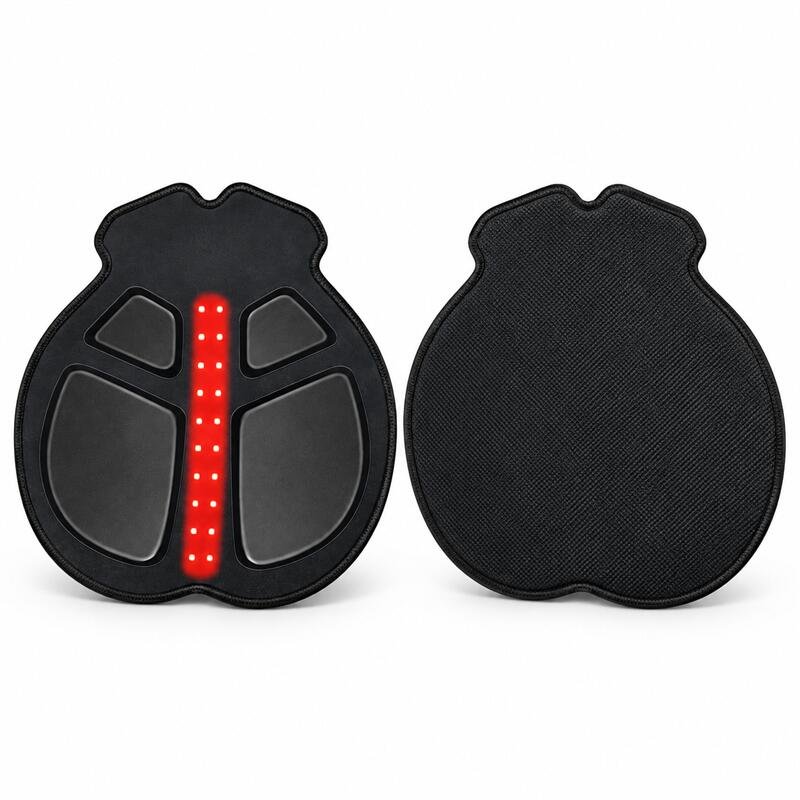

This rechargeable red light therapy seat cushion combines red and near-infrared light, EMS massage and gentle heat in one portable pad. Its contoured shape covers the hips, glutes and upper thighs while the user is seated.
The cushion has 20 triple-chip LED light points and four large EMS electrode areas. Light intensity, massage mode, EMS strength and temperature can be adjusted through the controller. Depending on the selected configuration, the functions can be used separately or together.
It is suitable for home seating, office chairs, car seats during breaks, yoga areas and wellness facilities. Different controllers, battery capacities, protective films, remote controls and private-label options are available.
Key Features
- 20 triple-chip LED light points
- Standard 660 nm red light and 850 nm near-infrared light
- Three adjustable light intensity levels
- Four large EMS electrode areas
- Six or eight massage modes, depending on the controller
- Nineteen or twenty EMS intensity levels
- Three heat settings from approximately 38°C to 43°C
- Rechargeable 2,000–3,000 mAh battery
- USB Type-C charging
- Optional wireless remote control
- Optional transparent protective film
- Non-slip surface suitable for different types of seats
Product Specifications
| Item | Specification |
|---|---|
| Model | WF056 |
| Product Type | Red Light Therapy Seat Cushion |
| Main Functions | Red/NIR light, EMS massage and heat |
| LED Light Points | 20 triple-chip LED light points |
| Standard Wavelengths | 660 nm + 850 nm |
| Light Intensity | 3 adjustable levels |
| EMS Electrode Areas | 4 |
| EMS Modes | 6 or 8 modes, depending on controller |
| EMS Intensity | 19 or 20 levels, depending on controller |
| EMS Output Frequency | 1–200 Hz |
| Heating Levels | 3 |
| Heating Temperature | Approximately 38°C–43°C |
| Product Size | Approximately 42.5 × 42 cm |
| Top Width | Approximately 24.5 cm |
| Battery Capacity | 2,000–3,000 mAh |
| Working Time | Approximately 120–180 minutes |
| Charging Time | Approximately 3–4 hours |
| Charging Port | USB Type-C |
| Input | DC 5V, ≥2A |
| Main Materials | Neoprene fabric, EMS conductive film, graphene heating layer, LED modules and ABS controller |
| Remote Control | Optional |
| Transparent Protective Film | Optional |
Battery capacity, massage modes and intensity levels vary according to the selected controller. Final specifications are confirmed before sampling or production.
Red and Near-Infrared Light
The central LED section provides 660 nm red light and 850 nm near-infrared light. Three intensity levels allow the user to choose a comfortable setting for different routines.
Other wavelength combinations and LED configurations can be evaluated for customized orders.
EMS Massage with Four Contact Areas
Four conductive electrode areas are positioned across the cushion to cover both sides of the hips and glutes. The EMS function offers multiple massage patterns and adjustable intensity.
Available modes may include relaxation, training, kneading, tapping, tightening and activation. The exact mode names and quantity depend on the selected controller program.
Gentle, Adjustable Heat
The built-in graphene heating layer provides three temperature settings between approximately 38°C and 43°C. The low-temperature heat is designed to add warmth and comfort without turning the product into a high-temperature heating pad.
Red light, EMS massage and heat can be configured for separate or combined operation.

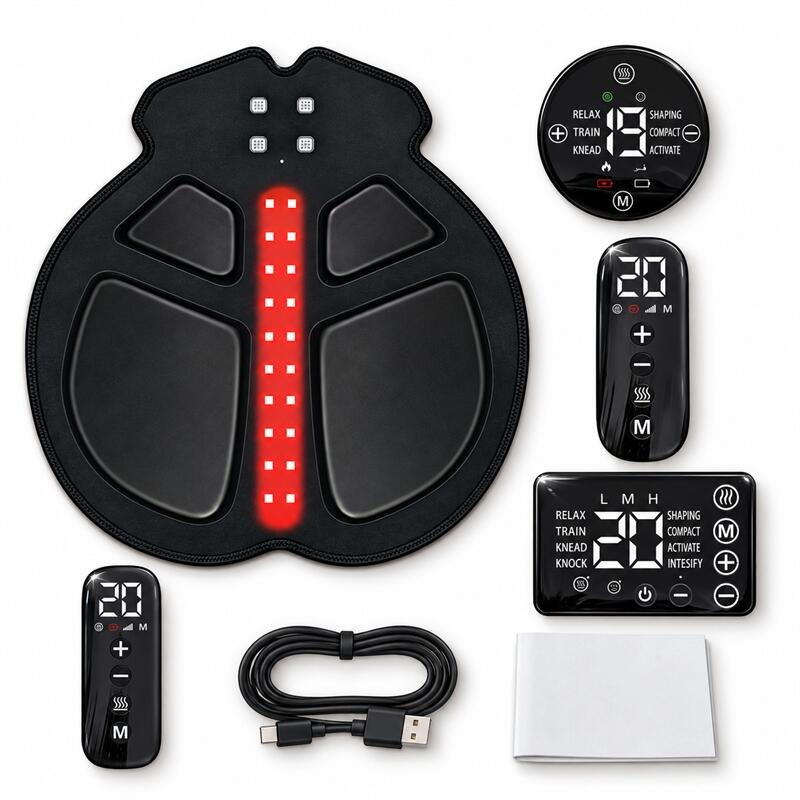

Controller Options
| Controller Option | Main Characteristics |
|---|---|
| Round Controller | Compact design with a 2,000 mAh battery |
| Curved Controller | Slim handheld design with a 2,000 mAh battery |
| Large-Screen Controller | Larger display with a 2,500–3,000 mAh battery |
| Wireless Remote | Optional for compatible controller versions |
This range allows buyers to choose a simpler entry-level configuration or a larger-screen version with longer operating time.
Where It Can Be Used
The flexible shape and non-slip surface make the cushion suitable for:
- Office chairs
- Home chairs and sofas

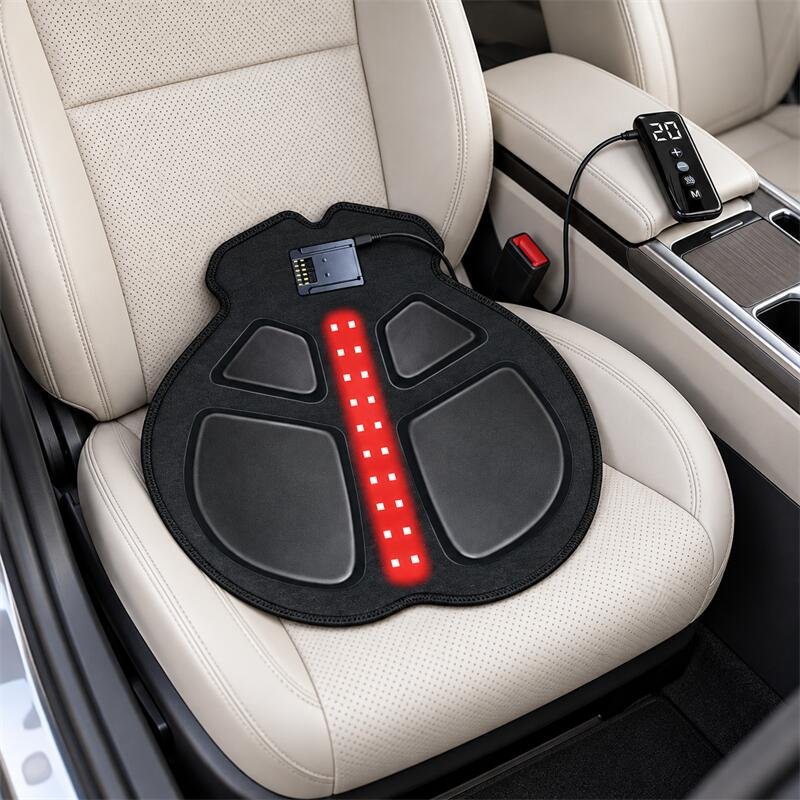

- Car seats during rest periods
- Yoga and relaxation areas
- Wellness and recovery facilities
Its rechargeable design avoids the need to remain connected to a wall outlet during use.
How to Use
- Place the cushion flat on a stable seat.
- Sit centrally so the hips and glutes align with the four EMS areas.
- Turn on the controller.
- Select red light, heat or EMS massage.
- Begin with a low EMS intensity and adjust gradually.
- Turn off the cushion after use and wipe the surface clean.

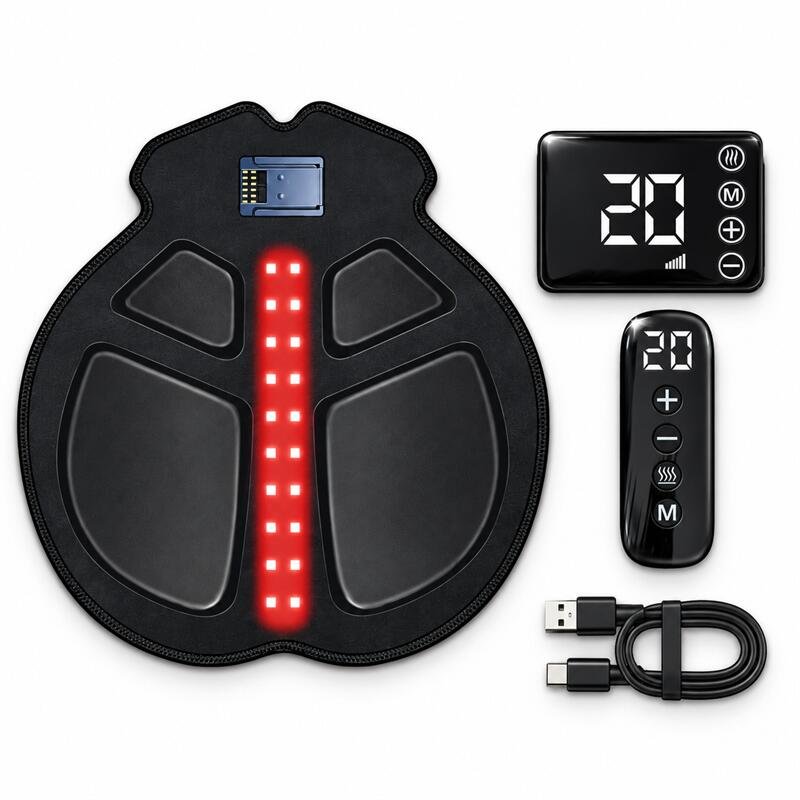

What Is Included
- Red light therapy seat cushion
- Rechargeable controller
- USB Type-C charging cable
- User manual
- Wireless remote control, if selected
Customization Options
The cushion can be adjusted for different brands and markets. Available services include:
- Logo printing
- Custom packaging
- Controller style and interface
- Battery capacity
- EMS modes and intensity levels
- Red and near-infrared wavelength combinations
- Heating settings
- Transparent protective film
- Wireless remote control
- Fabric color and surface finish
- Multilingual user manuals
The final configuration can be confirmed through a sample before volume production.
FAQ
Can the light, EMS and heat functions be used separately?
Yes. Separate or combined operation can be provided, depending on the selected controller program.
What areas does the cushion cover?
It is mainly designed for the hips, glutes and upper thighs while the user is seated.
How many LEDs does it have?
The standard version uses 20 triple-chip LED light points arranged in the center of the cushion.
What wavelengths are available?
The standard configuration uses 660 nm red light and 850 nm near-infrared light. Other wavelength combinations can be discussed for customized orders.
Is the remote control included?
The remote control is optional and must be selected when confirming the product configuration.
What is the transparent protective film for?
It covers the working surface and makes routine cleaning easier. Versions with or without the film are available.
Can the cushion be washed?
The electronic cushion should not be immersed in water or machine-washed. Disconnect the controller and wipe the surface according to the supplied care instructions.
Can the controller and packaging be customized?
Yes. Controller appearance, operating programs, logo, packaging and manuals can be customized subject to technical review and order quantity.
