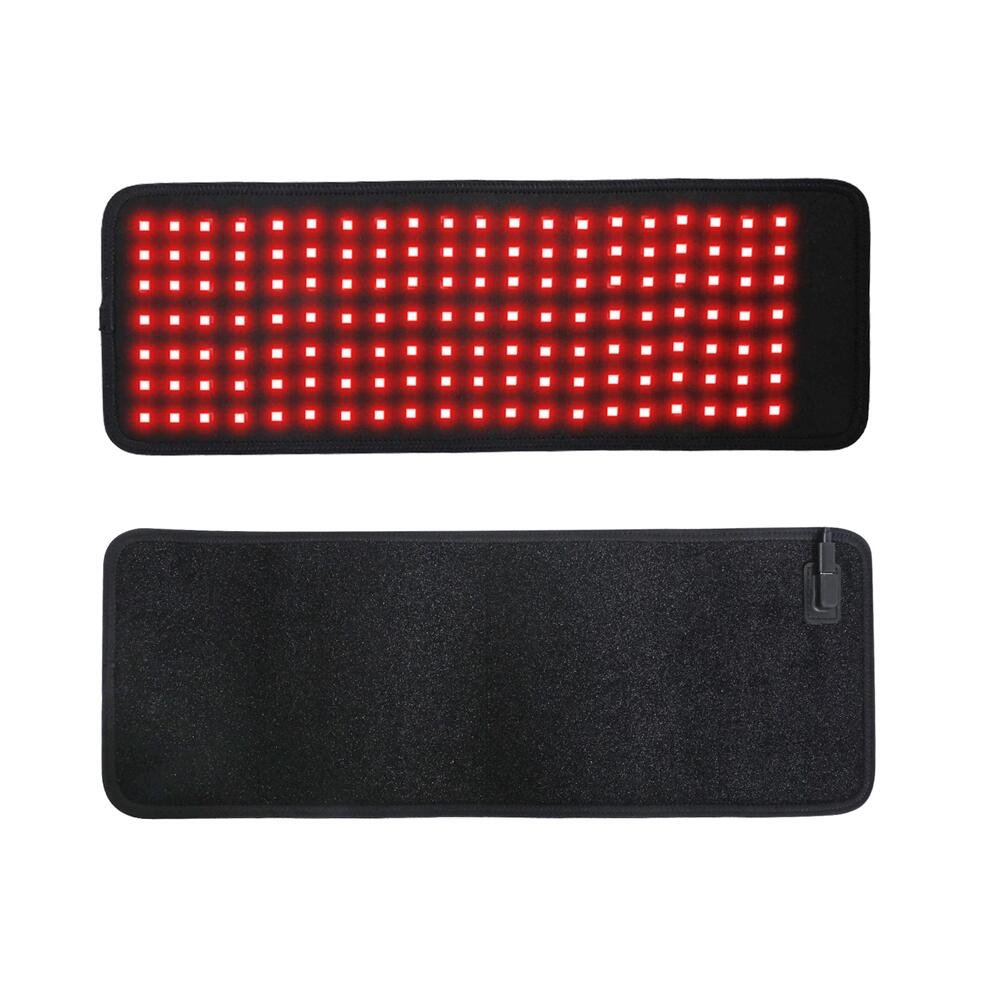

This flexible red light therapy pad is designed for targeted use on the neck, shoulders, back and other body areas. Its 460 × 170 mm size provides practical coverage while remaining compact and easy to position.
The pad contains 140 triple-chip LED diodes. Each diode combines one 660nm red light chip with two 850nm near-infrared chips, providing a total of 420 individual LED chips.
Key Features
- 460 × 170 mm flexible treatment area
- 140 triple-chip LED diodes
- 420 individual LED chips in total
- 660nm red light and 850nm near-infrared light
- 660nm to 850nm chip ratio of 1:2
- Irradiance up to 120mW/cm² at contact
- Separate red and near-infrared light control
- 30-minute automatic timer
- Pulse, EMS massage and temperature adjustment
- Custom size, functions, branding and packaging
Technical Specifications
| Item | Specification |
|---|---|
| Model | WF054 |
| Product type | Flexible red light therapy pad |

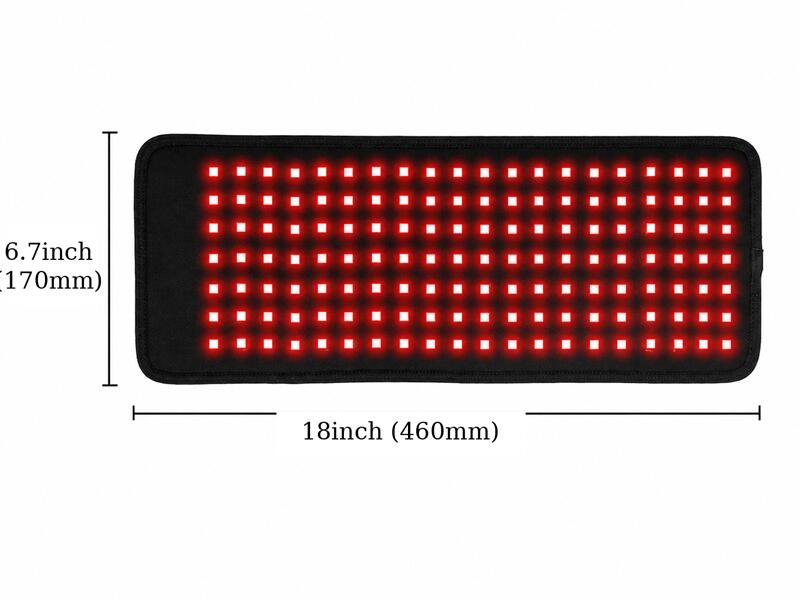

| Product size | 460 × 170 mm |
| Material | SBR |
| LED type | Triple-chip LED diodes |
| LED quantity | 140 diodes |
| Total light chips | 420 chips |
| Wavelengths | 660nm red light and 850nm near-infrared light |
| Chip ratio | 660nm × 1 + 850nm × 2 per diode |
| Rated power | 84W |
| Irradiance | Up to 120mW/cm² at 0 inch |
| Operating voltage | 12V |
| Timer | 30 minutes |
| Light control | Red and near-infrared light can be controlled separately |
| Additional functions | Pulse, EMS massage and temperature adjustment |
| Net weight | Approx. 700g |
| Packaging | Customized according to project requirements |
Red and Near-Infrared Light
660nm Red Light
Visible red light is commonly used in skin-focused wellness routines. It may support skin appearance and general surface-level care.
850nm Near-Infrared Light
Near-infrared light is barely visible to the human eye and reaches deeper areas than red light. It is commonly used in relaxation and post-exercise recovery products.
The two wavelengths can operate together or be controlled separately, depending on the selected controller configuration.
Flexible Use Across Different Body Areas
Although developed as a Red Light Therapy Pad For Neck and back, its rectangular shape also makes it suitable for:
- Neck and shoulders
- Upper and lower back
- Waist and abdomen
- Arms and legs
- Knees and other joints
The flexible SBR material helps the pad sit closer to the body and makes it easier to use in different positions.
Functions Can Be Selected for Your Market
Not every product line needs the same functions. The controller and internal structure can be configured according to your target price and customer requirements.
| Function | Available Configuration |
|---|---|
| Light modes | Red light, near-infrared light or combined light |
| Timer | 30-minute timer or custom timing settings |
| Intensity | Multiple brightness levels |
| Pulse | Continuous or pulsed light |
| EMS massage | Optional intensity levels and programs |
| Temperature | Adjustable heating settings |

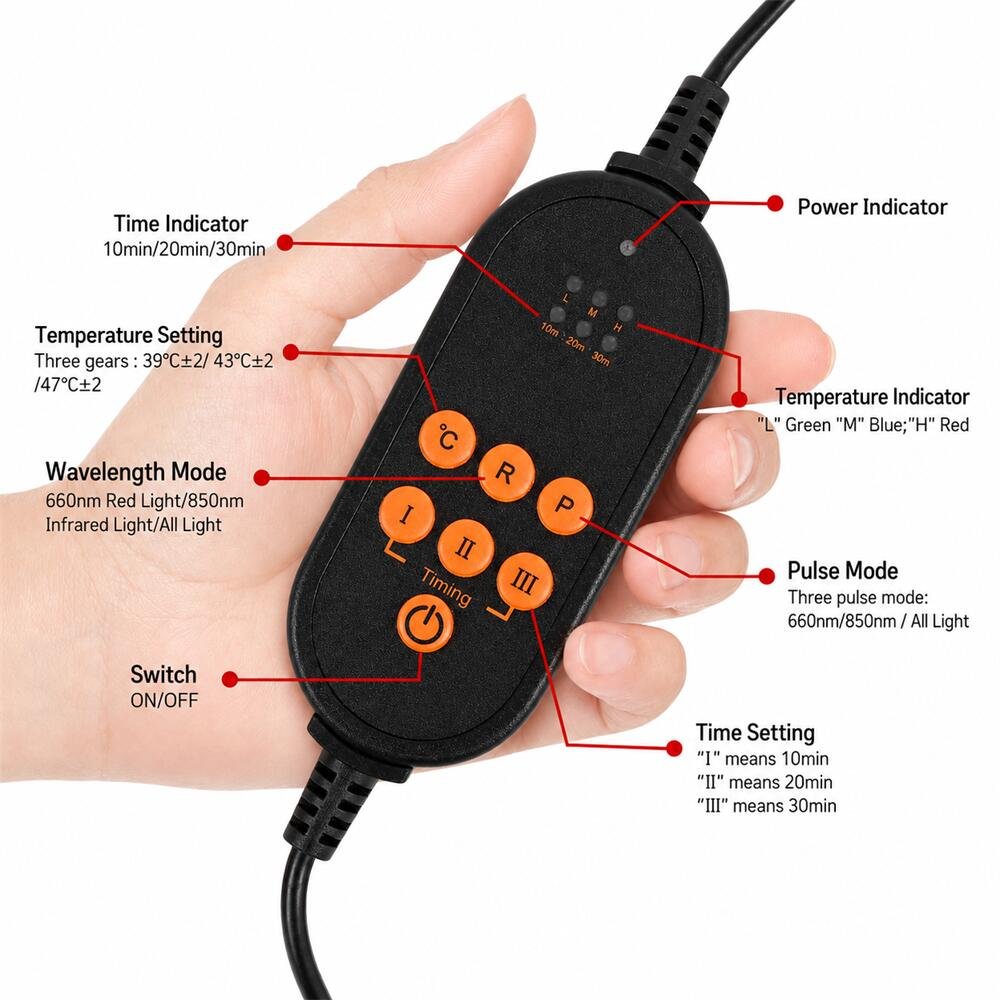

| Controller | Button, display and housing customization |
Custom Red Light Neck Pad Service
The standard size is 460 × 170 mm, but the pad can also be developed in different dimensions and shapes. We can adjust the product according to the intended body area, selling market and price range.
| Customization Area | Available Options |
|---|---|
| Pad size | Length, width and coverage area |
| Pad shape | Neck, shoulder, back, waist or multi-area design |
| LED layout | LED quantity, spacing and distribution |
| Wavelengths | Wavelength combination and chip ratio |
| Functions | Timer, intensity, pulse, EMS and temperature |
| Power system | Voltage, adapter and plug type |
| Materials | Fabric, SBR thickness, color and edge finish |
| Branding | Product logo, sewn label and controller graphics |

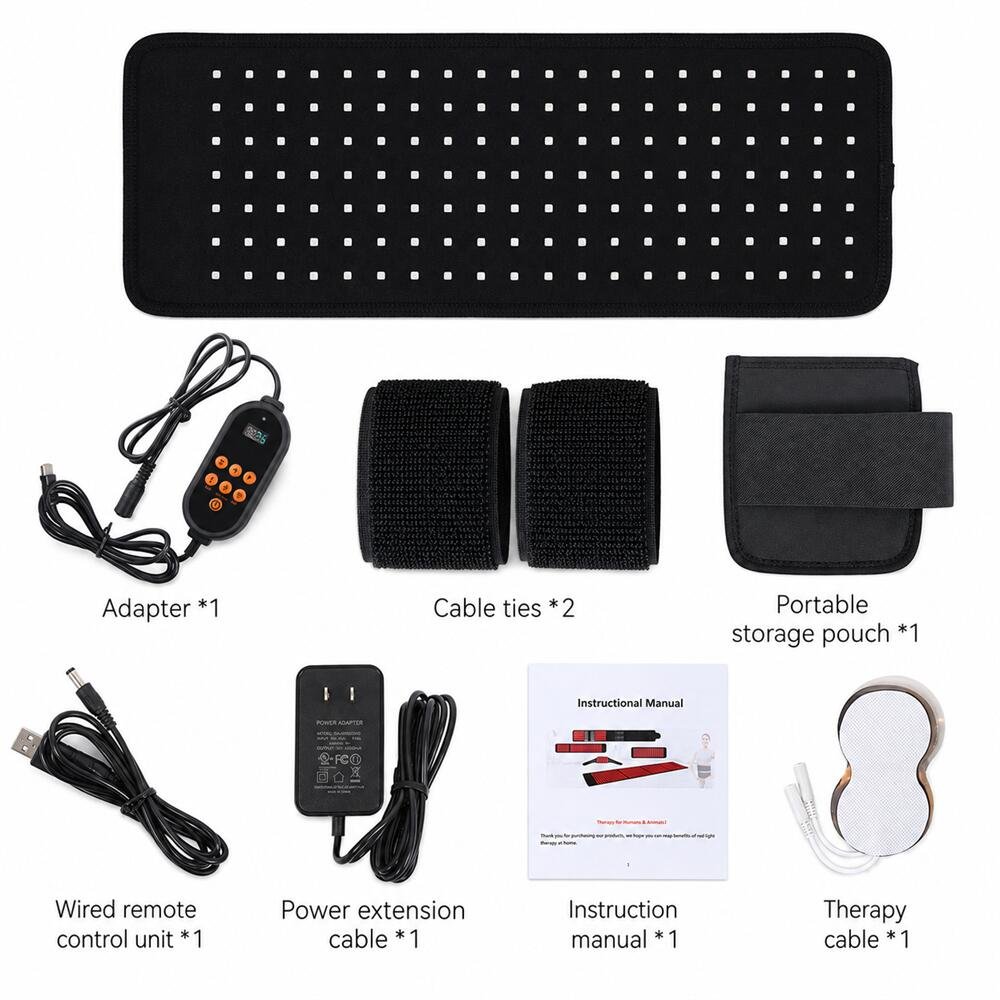

| Packaging | Color box, manual, inserts and shipping carton |
All technical details are confirmed before sample production. Changes to the dimensions, LED quantity or functions may require a new circuit and controller design.
Frequently Asked Questions
Why does the pad have 140 LEDs but 420 light chips?
Each triple-chip diode contains three individual light chips: one 660nm red light chip and two 850nm near-infrared chips. Therefore, 140 diodes provide 420 individual chips.
Can red light and near-infrared light work separately?
Yes. The controller can be configured to operate red light, near-infrared light or both wavelengths together.
Can the 460 × 170 mm size be changed?
Yes. The pad dimensions, shape and LED layout can be adjusted according to the required treatment area.
Are EMS massage and temperature control required?
No. These functions can be included or removed depending on the intended product positioning and target price.
Can we add our own logo and packaging?
Yes. Custom logos, labels, controller graphics, instruction manuals and retail packaging are available for private-label projects.
Request a Custom Quote
Send us your required pad size, wavelengths, functions, power supply, branding details and estimated order quantity. We will confirm the product configuration and provide a quotation and sampling plan.
