A rechargeable therapy wrap combining red light, near-infrared light, gentle heat and adjustable vibration. The compact pad can be secured around a pet’s back, shoulder, hip or leg for convenient localized care at home or in professional pet care settings.
The detachable magnetic controller allows cordless operation. Two controller designs and an optional remote control are available for different product lines.
Product Introduction
This pet red light therapy massager is designed for dogs, cats and other small animals. It uses 660 nm red light and 850 nm near-infrared light together with vibration massage and gentle heat.

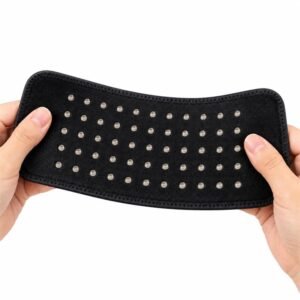

The flexible 28 × 13 cm pad is small enough for targeted areas while the adjustable hook-and-loop straps help keep it in place. A built-in 2000 mAh battery makes the device suitable for use without a power cable.
It can be used as part of a pet’s regular comfort and recovery routine, especially for older pets, active dogs or animals needing localized care under veterinary guidance.
Key Features
Red and Near-Infrared Light

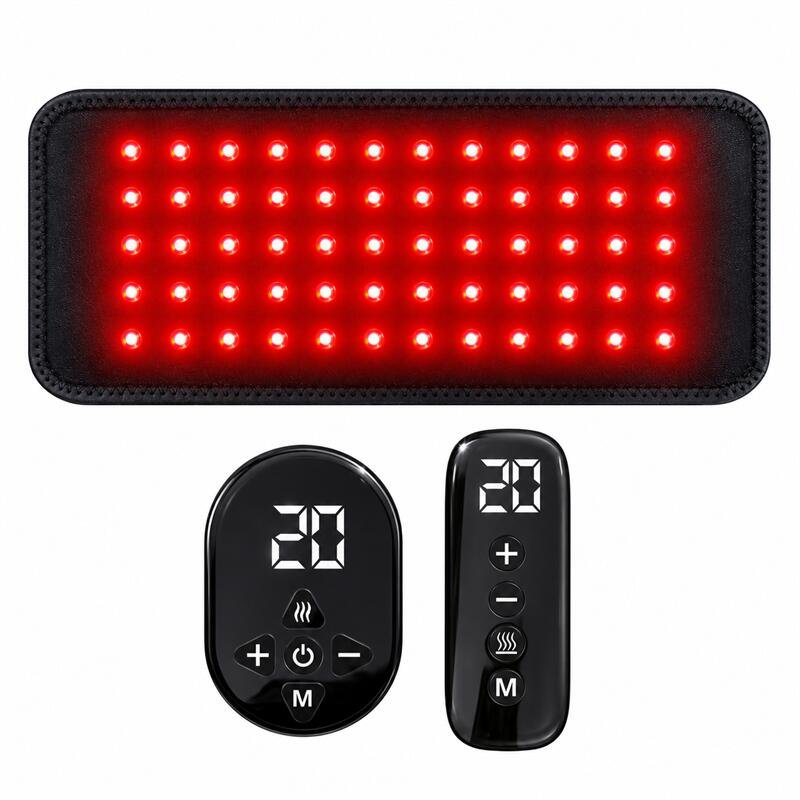

The pad contains 60 triple-chip LEDs:
- 120 × 660 nm red-light chips
- 60 × 850 nm near-infrared chips
- Three adjustable light levels
The 660 nm light provides surface-level illumination, while 850 nm near-infrared light reaches deeper tissue. The 850 nm wavelength is not as visibly bright as red light, which is normal.
Light, Heat and Vibration in One Device
The device combines three functions in one compact wrap:
- 660 nm and 850 nm light
- Gentle heat
- Adjustable vibration massage
The settings can be adjusted according to the pet’s size, comfort and sensitivity.
Rechargeable and Cordless

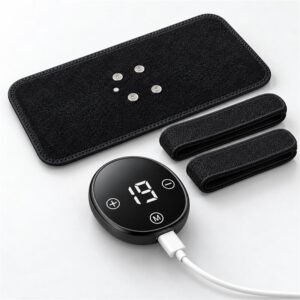

The controller contains a 2000 mAh rechargeable battery and supports Type-C charging. Once charged, it attaches magnetically to the therapy pad, so no power cable is needed during use.
Adjustable Fit

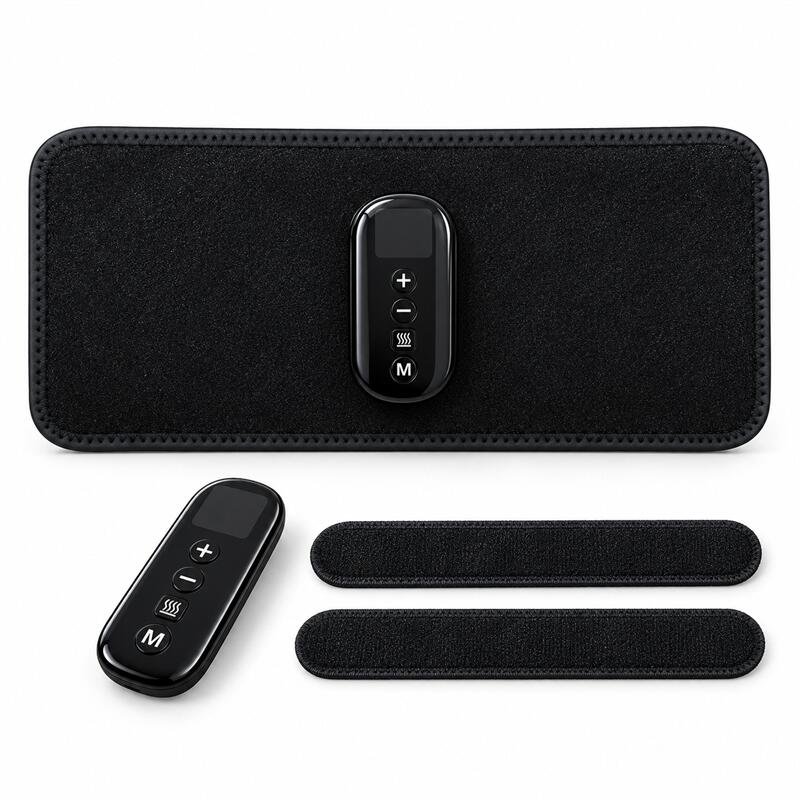

The soft pad comes with hook-and-loop straps for placement on different areas of the body. The standard set includes both long and short straps for easier adjustment.

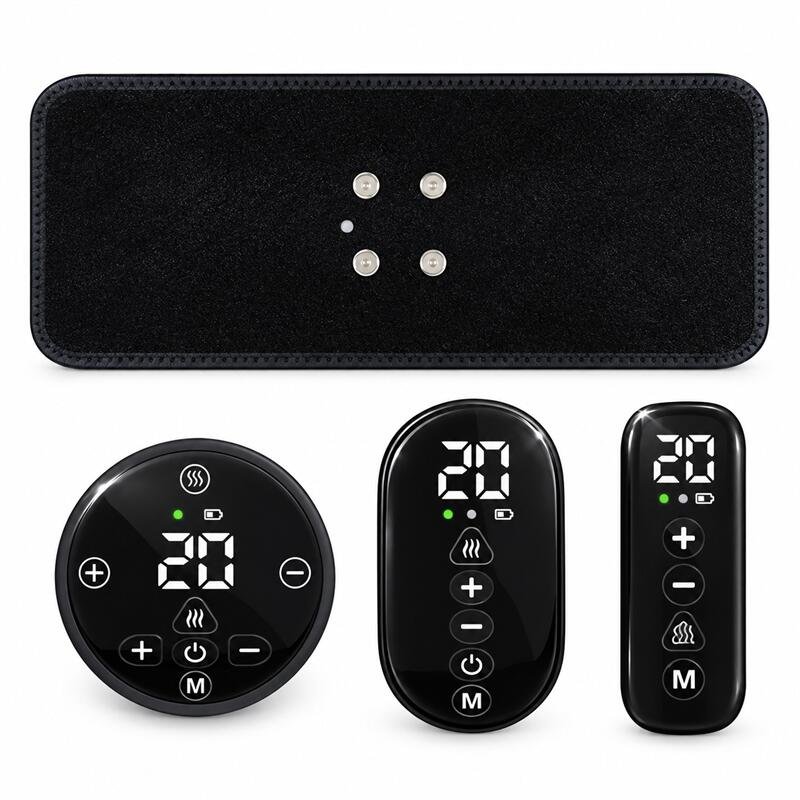

Two Controller Options
Buyers can choose between a round controller and a curved controller. Both versions can also be supplied with an optional remote control.
Product Specifications
| Item | Specification |
|---|---|
| Model | PT009 |
| Product type | Rechargeable pet red light therapy massager |
| Main functions | Red light, near-infrared light, heat and vibration |
| Wavelengths | 660 nm + 850 nm |
| LED quantity | 60 triple-chip LEDs |
| LED chip configuration | 120 × 660 nm chips + 60 × 850 nm chips |
| Light levels | 3 levels |
| Massage modes | 6 or 8 modes, depending on controller |
| Massage intensity | 19 or 20 levels, depending on controller |
| Therapy pad size | 28 × 13 cm |
| Long strap size | Approximately 67 × 5 cm |
| Short strap size | Approximately 23 × 5 cm |
| Battery capacity | 2000 mAh |
| Charging connection | Type-C |
| Rated charging voltage | 5V |
| Input current | Up to 2000 mA |
| Rated output power | 0.5–10W |
| Charging time | Approximately 45 minutes |
| Operating time | Up to approximately 180 minutes, depending on settings |
| Round controller size | Approximately 4.8 cm diameter |
| Curved controller size | Approximately 7 × 4.8 cm |
| Controller attachment | Magnetic |
| Remote control | Optional |
| Standard color | Black |
Controller Configurations
| Configuration | Controller | Massage Settings | Remote Control |
|---|---|---|---|
| Option 1 | Round controller | 6 modes, 19 intensity levels | No |
| Option 2 | Curved controller | 8 modes, 20 intensity levels | No |
| Option 3 | Round controller | 6 modes, 19 intensity levels | Included |
| Option 4 | Curved controller | 8 modes, 20 intensity levels | Included |
The final control program can also be reviewed for customized orders.
Suitable Treatment Areas
The compact wrap can be positioned around different parts of the pet’s body, including:
- Back
- Shoulders
- Hips
- Upper legs
- Knees and other joints
- Localized muscle areas
The product is suitable for dogs and cats. It may also be used for other small animals when the pad fits correctly and the animal can be supervised throughout the session.
Simple Operation
- Place the light-emitting side against the target area.
- Secure the pad using the appropriate strap.
- Attach the charged controller to the pad.
- Select the light, heat and vibration settings.
- Begin with a low setting and a short session.
- Monitor the pet and stop if it shows discomfort.
Do not fasten the strap too tightly.
Customization Options
The standard design can be adapted to suit different markets and product ranges.
Available customization includes:
- Round or curved controller
- Remote control option
- Massage modes and intensity settings
- Red and near-infrared LED ratio
- Pad dimensions and LED layout
- Strap length and fastening design
- Fabric and product color
- Controller icons and language
- Printed or embossed logo
- User manual
- Gift box and retail packaging
Customized functions and specifications are subject to engineering evaluation and order quantity.
What to Confirm Before Sampling
To make sure the sample matches the final product plan, we recommend confirming:
- Controller shape
- Remote control requirement
- Massage mode and intensity configuration
- LED wavelength and chip arrangement
- Standard or customized strap length
- Logo position
- Manual language
- Packaging requirements

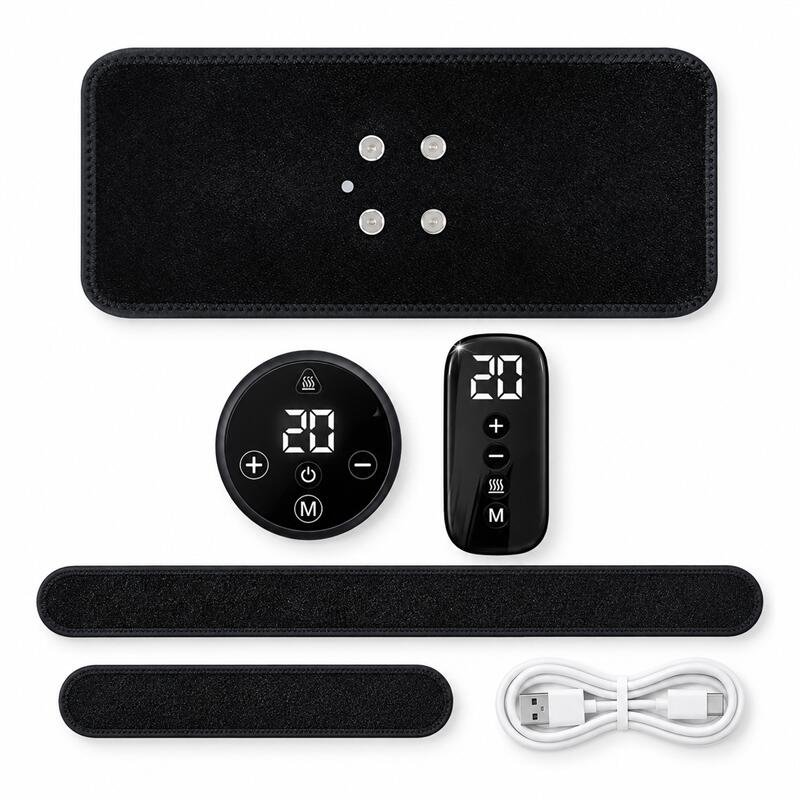

Package Includes
- 1 × Red light therapy pad
- 1 × Rechargeable magnetic controller
- 1 × Long adjustable strap
- 1 × Short adjustable strap
- 1 × Type-C charging cable
- 1 × User manual
- 1 × Remote control, if selected
Care and Safety
- Use only under supervision.
- Begin with the lowest intensity and a short session.
- Keep the controller and charging port dry.
- Do not use the device while it is charging.
- Do not place it over open wounds or severely irritated skin.
- Remove the electronic controller before cleaning the fabric parts.
- Consult a veterinarian before use following surgery or for an animal with a diagnosed medical condition.
This product is intended to support routine pet comfort and wellness. It is not a substitute for veterinary diagnosis or treatment.
Frequently Asked Questions
Is this device completely cordless?
Yes. The controller has a rechargeable 2000 mAh battery and connects magnetically to the therapy pad. No power cable is required during use.
What is the difference between the two controllers?
The round controller supports six massage modes and 19 intensity levels. The curved controller supports eight massage modes and 20 intensity levels. The display style and control layout are also different.
Is a remote control included?
The remote control is optional. Both controller designs are available with or without a remote.
Can the heat, light and vibration be adjusted?
Yes. The controller provides separate controls for the therapy functions. The exact program depends on the selected controller configuration.
Which pets can use it?
It is mainly designed for dogs and cats. It may also fit rabbits and other small animals, provided the device is used carefully and under supervision.
Why are some LEDs less visible?
The 850 nm near-infrared chips produce light that is largely outside the visible range. A weaker visible glow does not mean the LEDs are not operating.
How long does the battery last?
Operating time can reach approximately 180 minutes. Actual battery life depends on the selected light, heat and vibration settings.
Can the product be customized?
Yes. The controller, functions, wavelengths, pad size, straps, logo, manual and packaging can be customized after the required specifications are confirmed.
