This rechargeable horse head red light therapy wrap provides close-fitting light coverage around the poll, forehead, temple and cheek areas. Two openings allow the horse’s ears to remain uncovered, while the long adjustable fastening sections help keep the wrap comfortably in place.
The standard configuration combines 660 nm red light with 850 nm near-infrared light. Users can select red light, near-infrared light or both wavelengths together. Intensity, session time and pulse frequency can also be adjusted through the rechargeable controller.
Four configurations are available, covering different combinations of remote control and transparent protective film. This makes it easier to select a practical version for your market instead of paying for features your customers may not need.
Key Features
- 155 triple-chip LEDs
- Standard 660 nm red and 850 nm near-infrared light
- Red, near-infrared and combined operating modes
- Six displayed intensity levels from L0 to L5
- Adjustable timer from 5 to 100 minutes
- Pulse mode from 10 Hz to 40 Hz
- Rechargeable 3000 mAh controller
- Type-C charging
- Approximately 3–4 hours charging time
- Flexible and breathable neoprene material
- Two ear openings for a more natural fit
- Adjustable hook-and-loop fastening
- Optional remote control
- Optional transparent protective film
Product Specifications
| Item | Specification |
|---|---|
| Model | PT012 |
| Product Type | Rechargeable horse head red light therapy wrap |

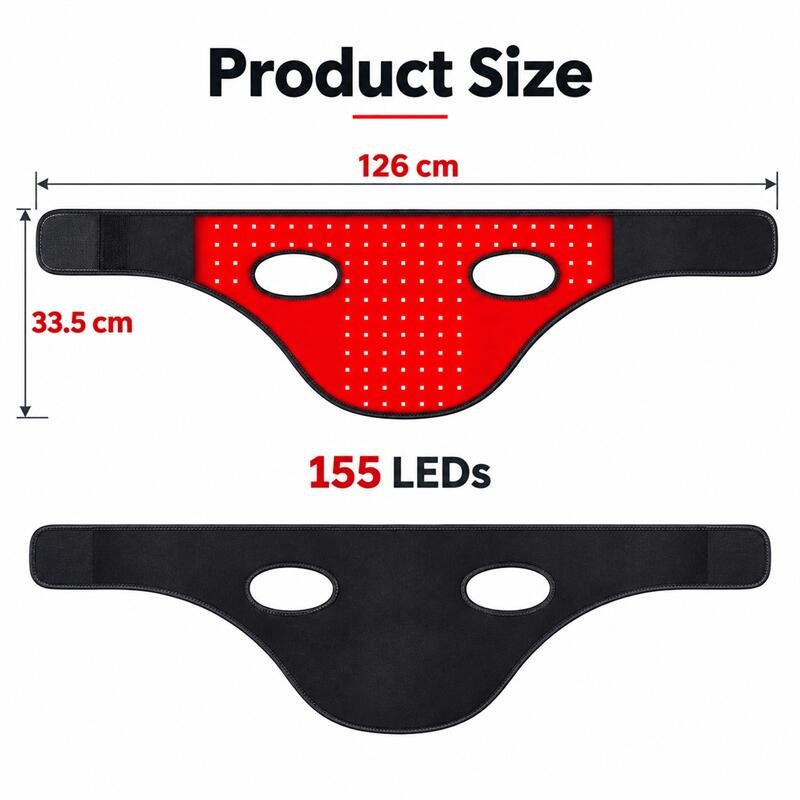

| Product Size | 126 × 33.5 cm |
| LED Quantity | 155 LEDs |
| LED Design | Triple-chip LEDs |
| Standard Wavelengths | 660 nm + 850 nm |
| Light Modes | 660 nm / 850 nm / Combined |
| Intensity Control | L0–L5 |
| Timer | 5–100 minutes |
| Timer Adjustment | 5-minute increments |
| Pulse Frequency | 10–40 Hz |
| Battery Capacity | 3000 mAh |
| Charging Port | Type-C |
| Charging Voltage | DC 5V |
| Charging Time | Approximately 3–4 hours |
| Working Time | Approximately 120–180 minutes, depending on settings |
| Output Power | 0–10W |
| Main Material | Flexible neoprene fabric |
| Fastening Method | Adjustable hook-and-loop closure |
| Remote Control | Optional |
| Transparent Protective Film | Optional |
| Customization | Wavelength, LED layout, fabric, logo, controller and packaging |

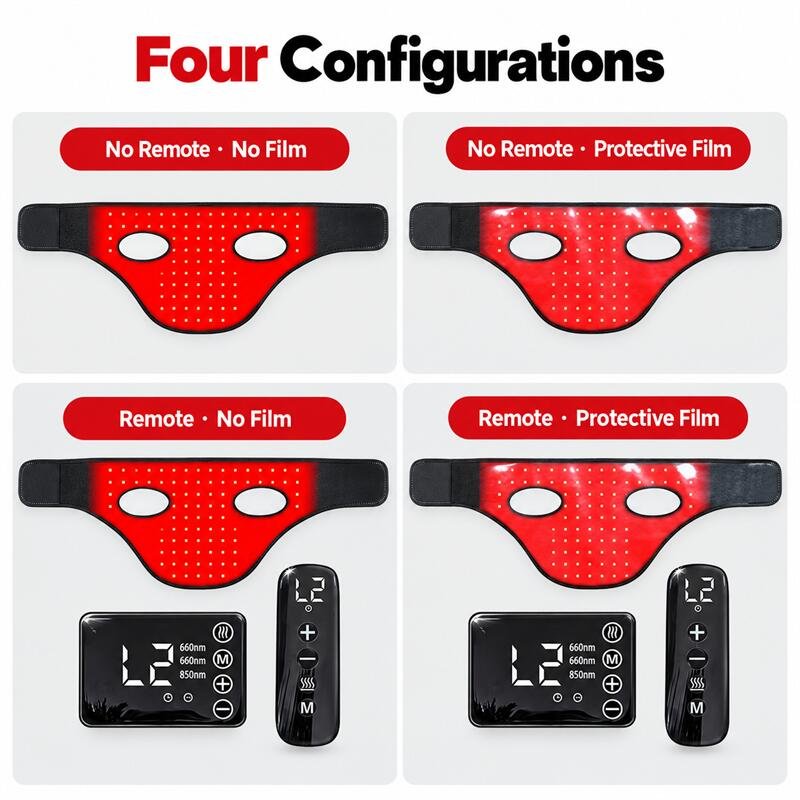

Available Configurations
| Version | Remote Control | Protective Film |
|---|---|---|
| Standard Version | No | No |
| Easy-Clean Version | No | Yes |
| Remote-Control Version | Yes | No |
| Full-Feature Version | Yes | Yes |
The version without protective film keeps the original soft and breathable fabric surface. The transparent-film version provides a smoother surface that is easier to wipe after use.
The protective film improves daily cleaning convenience but does not make the controller or complete product waterproof.

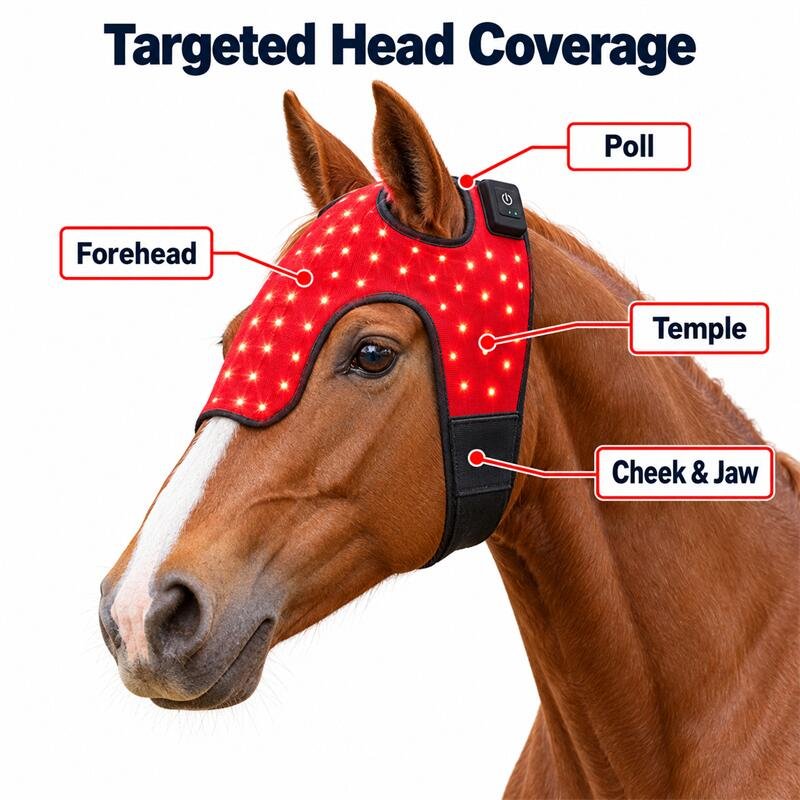

Coverage Around the Horse’s Head
The shaped design follows the contours of the horse’s head instead of using a standard rectangular pad. It can provide coverage around:
- Poll area
- Forehead
- Temple area
- Cheek and jaw muscles
- Areas around the base of the ears
The ear openings help position the wrap consistently while keeping the horse’s ears free. The eyes and nostrils should always remain unobstructed during use.

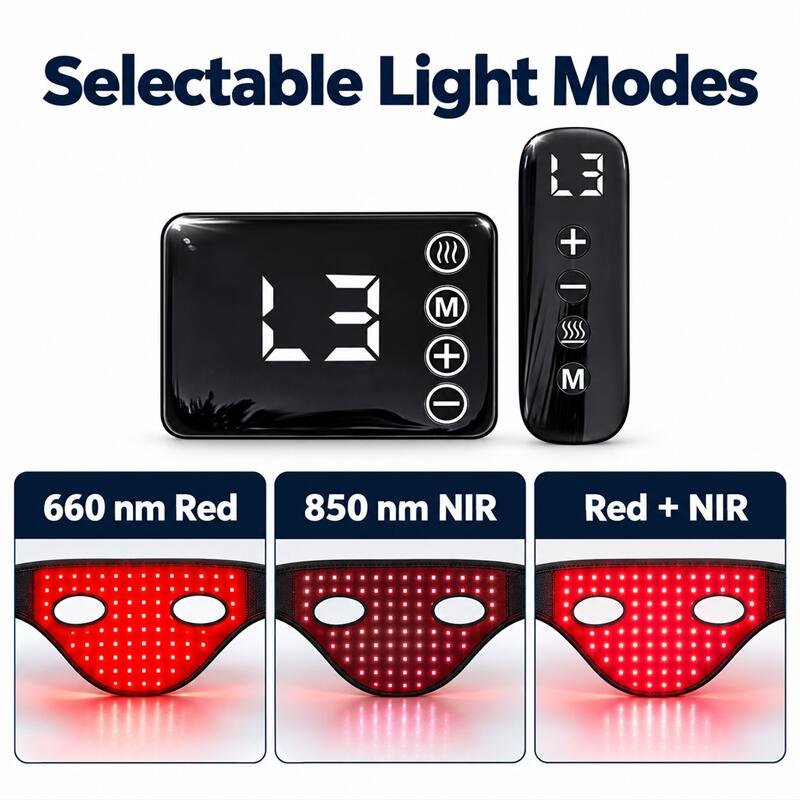

Adjustable Light Modes
The controller allows users to select the operating mode according to their routine:
- 660 nm red light: visible red light for more superficial coverage
- 850 nm near-infrared light: invisible light intended for deeper tissue coverage
- Combined mode: operates red and near-infrared light together
The standard wavelength combination is 660 nm and 850 nm. Other wavelength combinations can be evaluated for customized orders.
Rechargeable and Easy to Operate
The rechargeable controller allows the wrap to be used without keeping the horse beside a wall socket.
Users can adjust:
- Light mode
- Intensity level
- Session time
- Pulse frequency
A remote-control version is also available, making it easier to change settings without standing directly beside the controller.

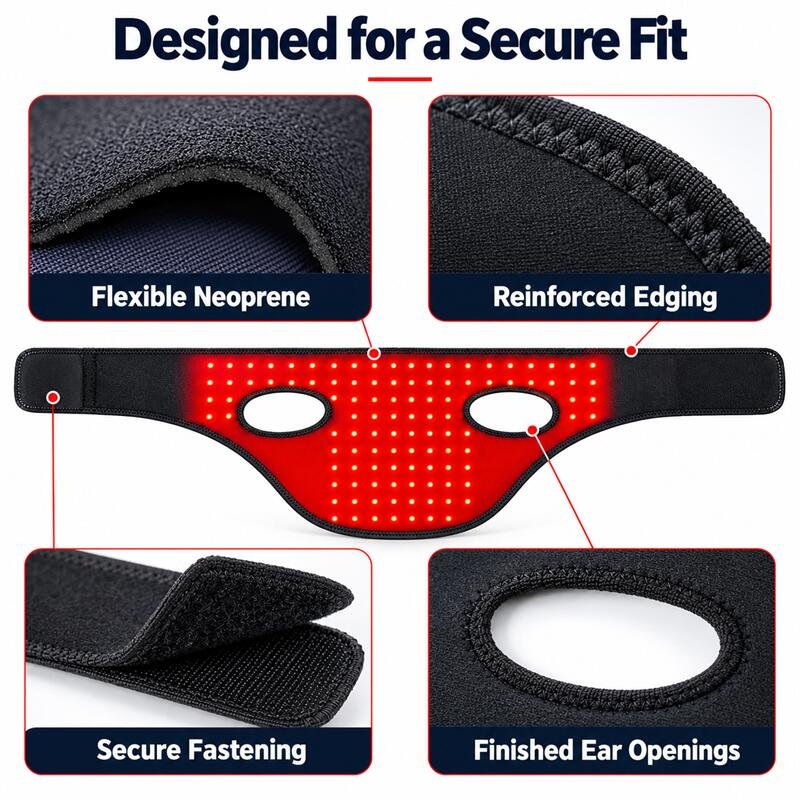

Flexible Fit
The wrap is made from soft neoprene that bends around the horse’s head. Long fastening sections provide room for adjustment, while the hook-and-loop closure allows the fit to be changed for different horses.
The wrap should be secure enough to maintain close light contact without restricting the horse or placing unnecessary pressure around the ears and face.

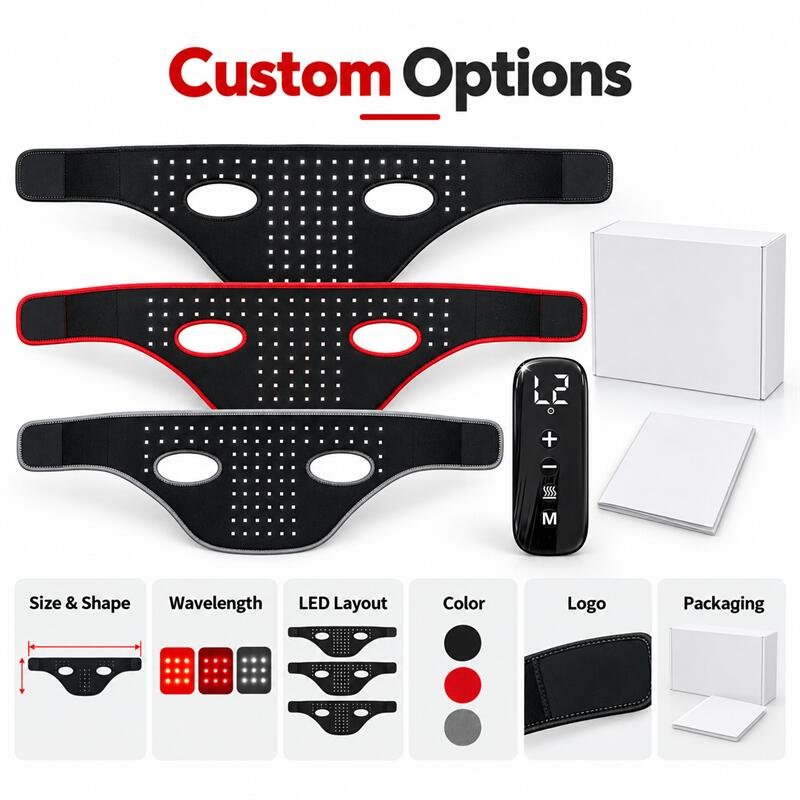

Customization Options
Different equine markets may require different controls, surface materials or branding. Available customization includes:
- Wavelength combinations
- LED quantity and layout
- Wrap dimensions and shape
- Ear-opening dimensions
- Battery capacity
- Controller functions
- Remote-control configuration
- Transparent protective film
- Fabric and edge colors
- Printed or woven logo
- User manual
- Carrying bag
- Retail packaging
A sample can be prepared to confirm the fit, controller functions and surface configuration before production.

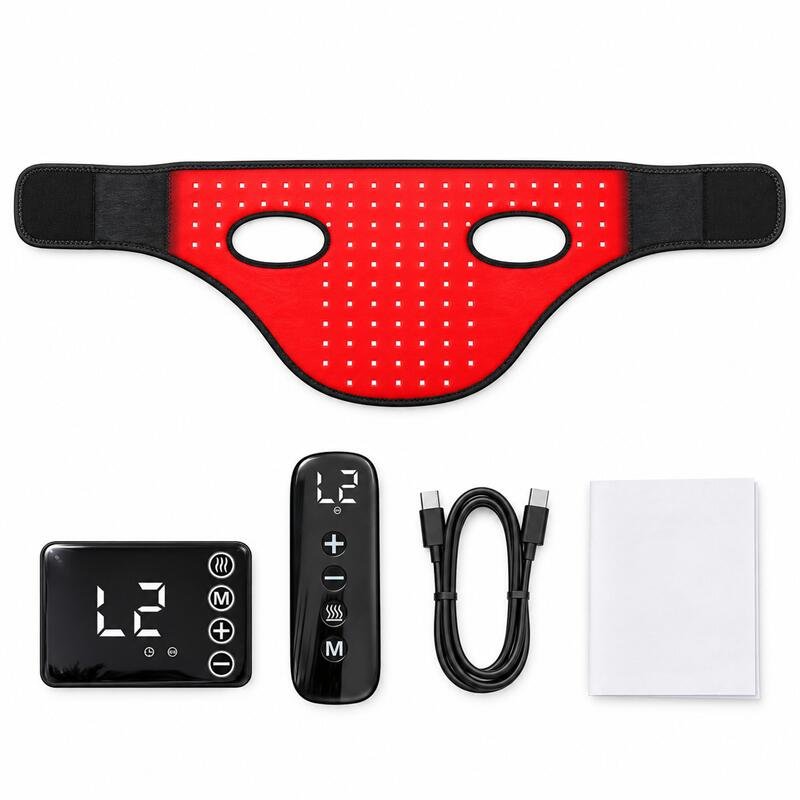

Package Contents
A standard package can include:
- 1 × Horse head red light therapy wrap
- 1 × Rechargeable controller
- 1 × Type-C charging cable
- 1 × User manual
- 1 × Storage bag or retail box
- 1 × Remote control, depending on configuration
How to Use
- Make sure the horse is calm before fitting the wrap.
- Position the horse’s ears through the two openings.
- Adjust the side sections and secure the hook-and-loop fastening.
- Check that the eyes, nostrils and mouth remain unobstructed.
- Connect the rechargeable controller.
- Select the wavelength mode, intensity and session time.
- Supervise the horse throughout the session.
- Switch off the controller and remove the wrap after use.
Frequently Asked Questions
Does the wrap cover the horse’s eyes?
No. It is designed to sit around the forehead, poll and cheek areas without covering the eyes. Correct positioning should be checked before every session.
Can red and near-infrared light operate separately?
Yes. The controller supports 660 nm red light, 850 nm near-infrared light and combined operation.
Does every version include a remote control?
No. Both remote-control and non-remote versions are available, allowing you to choose the configuration that fits your product range.
What is the purpose of the transparent film?
The transparent film creates a smoother surface over the LEDs and makes routine wiping more convenient. Versions without the film are also available.
Is the wrap cordless during treatment?
Yes. Its rechargeable controller allows cordless operation after charging.
How long does charging take?
A complete charge takes approximately three to four hours.
Can the dimensions be customized?
Yes. The overall shape, fastening length and ear openings can be adjusted after confirming the required measurements.
Can we customize the wavelength?
Yes. The standard configuration uses 660 nm and 850 nm. Other wavelength combinations can be discussed before sampling.
How should the wrap be cleaned?
Disconnect the controller and wipe the surface with a soft, slightly damp cloth. Do not immerse the controller or charging components in water.
Does this product replace veterinary treatment?
No. It is intended for equine wellness and recovery routines. Injuries, illnesses and ongoing conditions should be assessed by a qualified veterinarian.
