This rechargeable pet red light therapy massage pad combines 660 nm red light, 850 nm near-infrared light, gentle warming and adjustable vibration massage in one flexible device.
Its 44 × 28 cm treatment area can be placed on the back, hips, abdomen, shoulders or limbs. Two adjustable straps help hold the pad in position, while the rechargeable controller allows cordless use at home, in a pet care facility or during travel.
Multiple controller and battery options are available, with an optional wireless remote control.
Product Introduction

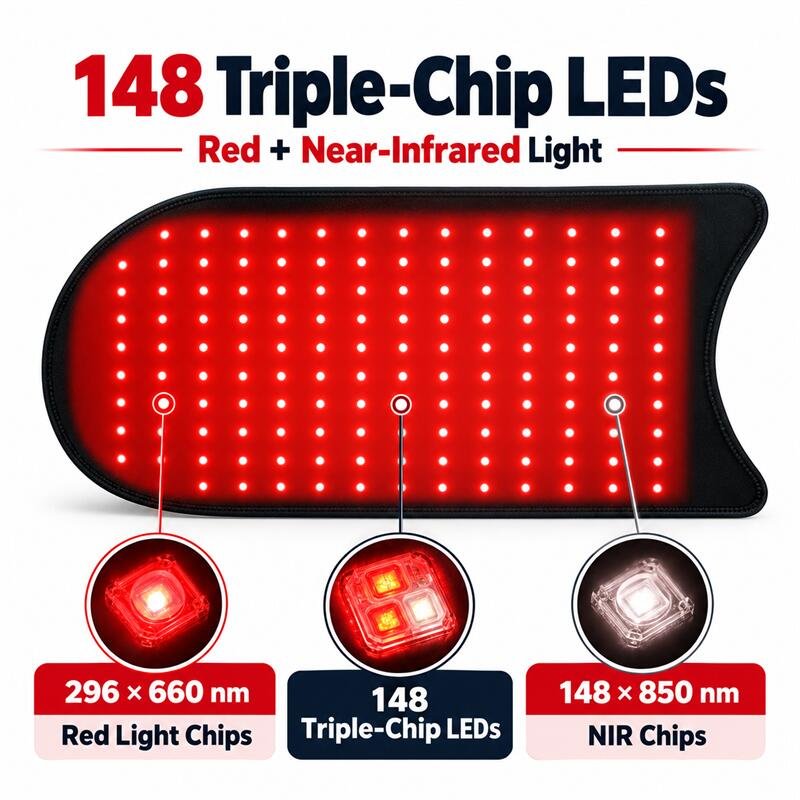

The pad uses 148 triple-chip LED packages, containing 296 red-light chips and 148 near-infrared chips. The wide LED layout provides even coverage across the treatment surface.
Three combined red and near-infrared output levels allow the user to select a suitable setting. Depending on the controller version, the device also provides six or eight massage programs and up to 19 or 20 vibration intensity levels.

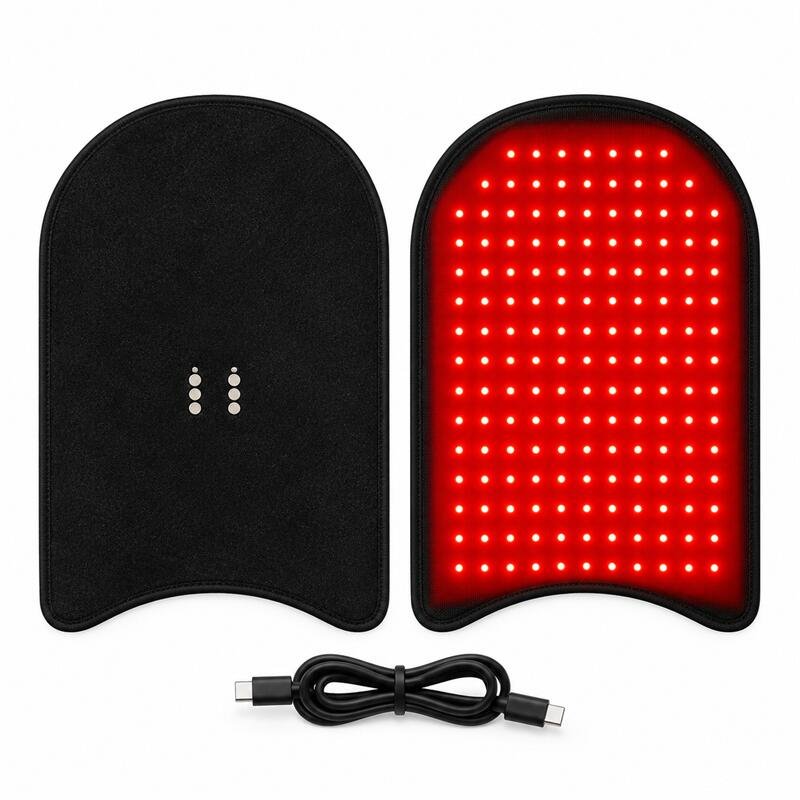

The curved pad is made from soft, flexible fabric and can be used flat, wrapped around the body or secured with the supplied straps. It is suitable for dogs, cats and other animals when the size and placement are appropriate.
Key Features
- 148 triple-chip LED packages
- 660 nm red light and 850 nm near-infrared light
- Three combined light output levels
- Adjustable vibration massage
- Integrated warming function
- Six or eight massage programs, depending on controller
- Up to 19 or 20 vibration intensity levels
- Rechargeable 2000–3000 mAh battery options
- Type-C charging
- Optional wireless remote control
- Detachable magnetic controller

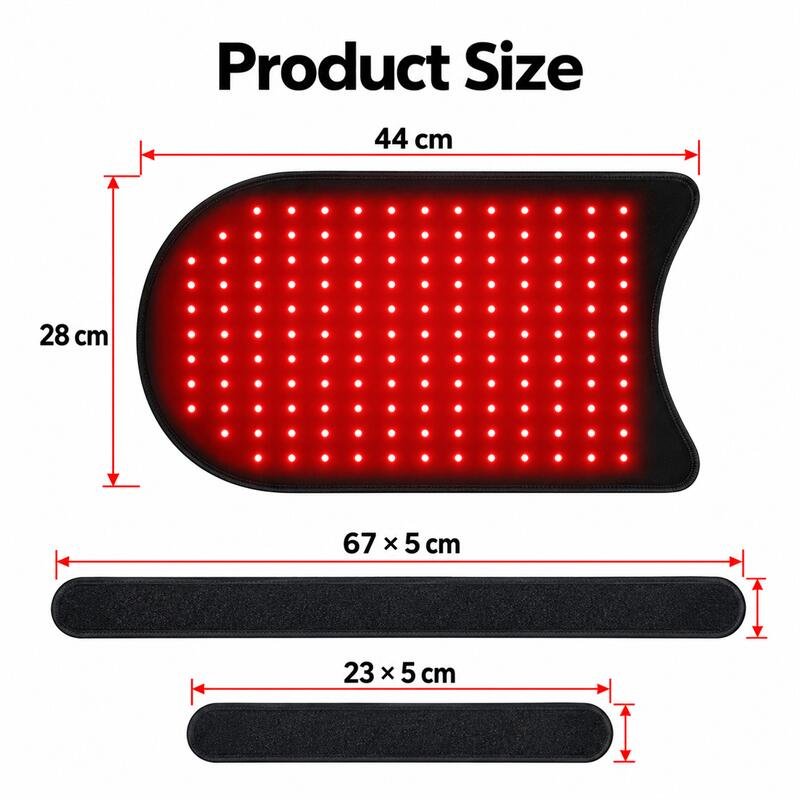

- Flexible 44 × 28 cm treatment pad
- Two straps for different placement needs
- Foldable design for storage and travel
Product Specifications
| Item | Specification |
|---|---|
| Model | PT013 |
| Product type | Rechargeable pet red light therapy massage pad |
| Pad size | 44 × 28 cm |
| LED quantity | 148 triple-chip LED packages |
| LED chip configuration | 296 × 660 nm chips + 148 × 850 nm chips |
| Wavelengths | 660 nm red light + 850 nm near-infrared light |
| Light settings | 3 levels |
| Massage programs | 6 or 8 modes, depending on controller |
| Massage intensity | 19 or 20 levels, depending on controller |
| Heating | Integrated warming function |
| Battery options | 2000 mAh, 2500 mAh or 3000 mAh |
| Rated charging voltage | 5V |
| Charging port | Type-C |
| Output power | 0.5–10W |
| Approximate operating time | 180–270 minutes, depending on battery and settings |
| Long strap | 67 × 5 cm |
| Short strap | 23 × 5 cm |
| Remote control | Optional |
| Main materials | Soft fabric, ABS controller, micro motors, LEDs and heating layer |
| Suitable animals | Dogs, cats and other pets of an appropriate size |
Specifications may vary according to the selected controller and battery configuration.
Controller Options
| Version | Controller | Battery | Remote Control |
|---|---|---|---|
| Option A | Round controller | 2000 mAh | Optional |
| Option B | Curved controller | 2000 mAh | Optional |
| Option C | Rectangular controller | 2500 or 3000 mAh | Optional |
The controller version affects the number of massage programs, intensity levels and operating time. We can recommend a suitable configuration based on your target market and expected retail positioning.
Flexible Placement
The pad can be used in several ways:
- Secured around the back, abdomen or hips with the long strap
- Wrapped around a shoulder, thigh or other localized area
- Placed flat beneath or over the treatment area
- Used without the straps when the animal is resting
The flexible construction follows the body more closely than a rigid light panel and is easier to reposition between different areas.
Designed for Everyday Pet Care
This device can be added to general pet wellness and recovery routines, including:
- Relaxation after exercise or activity
- Localized muscle comfort
- Joint and mobility support
- Senior pet care
- Post-exercise recovery
- Veterinary-directed rehabilitation routines
- General warmth and massage
It is a wellness-support device and is not intended to replace veterinary diagnosis or treatment.
Custom Pet Therapy Pad Options
We can adjust the product for different markets, brands and animal-care applications.
Available customization includes:
- Pad size and external shape
- LED quantity and layout
- Wavelength combination
- Light output levels
- Massage programs and intensity range
- Heating settings
- Controller shape and display
- Battery capacity
- Remote-control configuration
- Fabric color and edging
- Logo printing
- Packaging and instruction manual
The standard 44 × 28 cm version is suitable for general pet use. Larger or smaller versions can be developed for specific animal sizes or treatment areas.

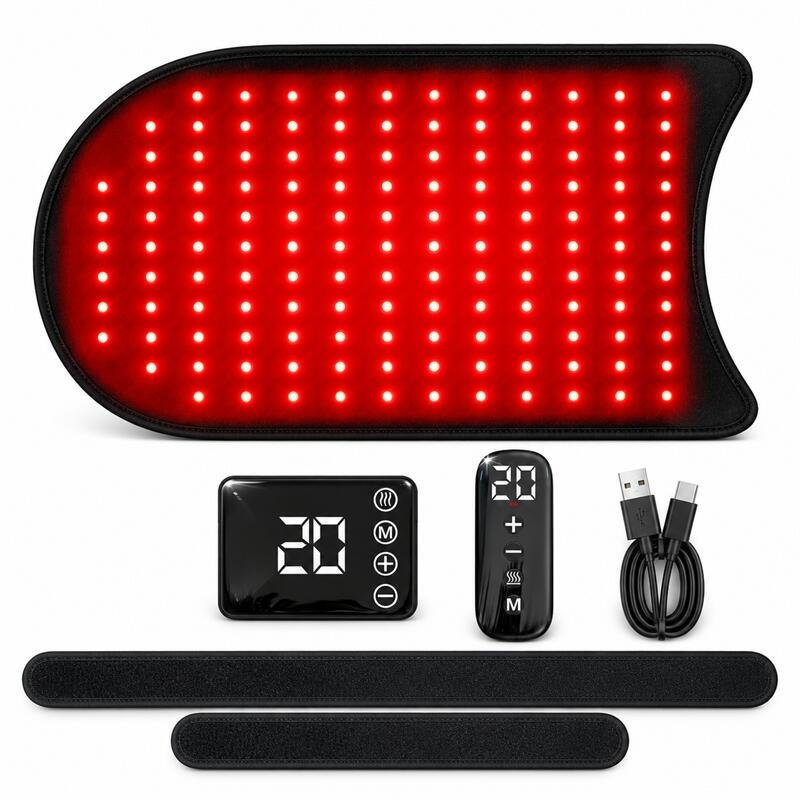

Package Contents
- 1 × Pet red light therapy massage pad
- 1 × Rechargeable controller
- 1 × 67 cm fastening strap
- 1 × 23 cm fastening strap
- 1 × Type-C charging cable
- 1 × Wireless remote control, if selected
- 1 × User manual
Basic Use
- Charge the controller before use.
- Position the illuminated side toward the required area.
- Secure the pad with the appropriate strap or place it flat.
- Select the light level, massage program and intensity.
- Begin with a low setting and observe the pet’s response.
- Stop use if the animal shows discomfort or attempts to remove the pad.
Pets should be supervised during use. For active injuries, post-operative care or ongoing medical conditions, follow the advice of a veterinarian.
FAQ
Is this pad suitable for both dogs and cats?
Yes. Its flexible design can be used with dogs and cats, provided the pad and straps fit the animal comfortably.
Are the 660 nm and 850 nm wavelengths used together?
Yes. The three light settings combine 660 nm red light with 850 nm near-infrared light at different output levels.
How many LEDs are inside the pad?
The pad contains 148 triple-chip LED packages: 296 red-light chips and 148 near-infrared chips.
Does it include vibration massage?
Yes. Depending on the controller, the device provides six or eight massage programs and up to 19 or 20 intensity levels.
Can it be used without connecting to a wall outlet?
Yes. The rechargeable battery allows cordless use after charging.
Is a remote control included?
The remote is optional. Versions with and without a remote control are available.
Can the size be customized?
Yes. The pad size, shape, straps and LED layout can be adjusted for different animals and application areas.
Can we add our own branding?
Yes. Logo printing, product colors, packaging, manuals and controller configurations can be customized.
