A flexible red and near-infrared light therapy wrap designed for the horse’s neck and surrounding muscle areas. The cordless design, adjustable straps and simple digital controller make it suitable for daily care, pre-training warm-up and post-exercise recovery.
Two sizes are available, with 156 or 236 triple-chip LEDs. Wavelengths, dimensions, protective covering, branding and packaging can be customized for different product lines.
Product Introduction
The Horse Neck Red Light Therapy Wrap combines 660 nm red light and 850 nm near-infrared light in a flexible, wearable design.
Its contoured shape follows the horse’s neck, while three adjustable straps help keep the wrap in place. The rechargeable battery removes the need for a nearby power outlet, making the product practical for use in stables, training facilities and equine care centers.
Users can select the wavelength mode, intensity level, session time and optional pulse setting directly from the controller. A handheld remote control is also available.
Main Features

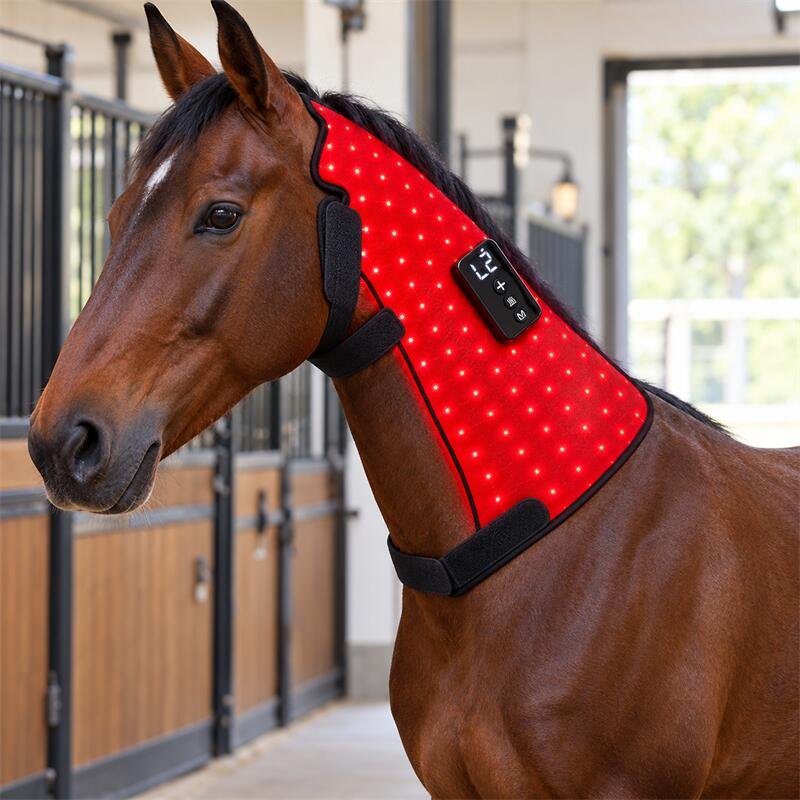

Targeted Neck Coverage
The curved wrap fits around the neck and poll area, providing broad and even LED coverage without using a rigid housing.
660 nm Red and 850 nm Near-Infrared Light
The standard configuration combines:
- 660 nm red light
- 850 nm near-infrared light
- Combined red and near-infrared mode
Three- or four-wavelength combinations can be developed for customized orders.

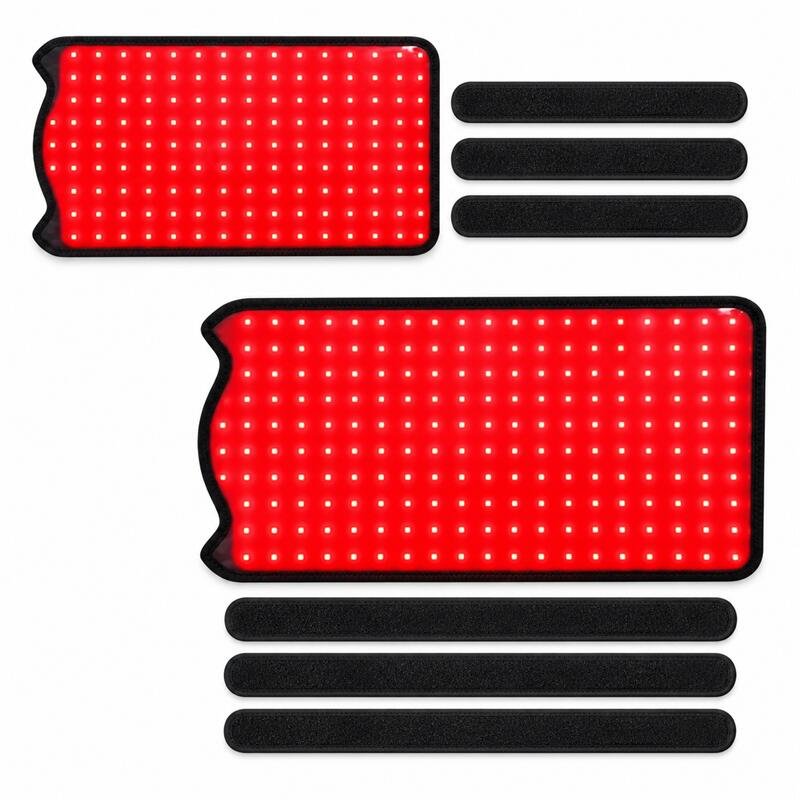

Two Sizes Available
Choose between a compact 156-LED version and a larger 236-LED version. Both use triple-chip LED packages for balanced light distribution.

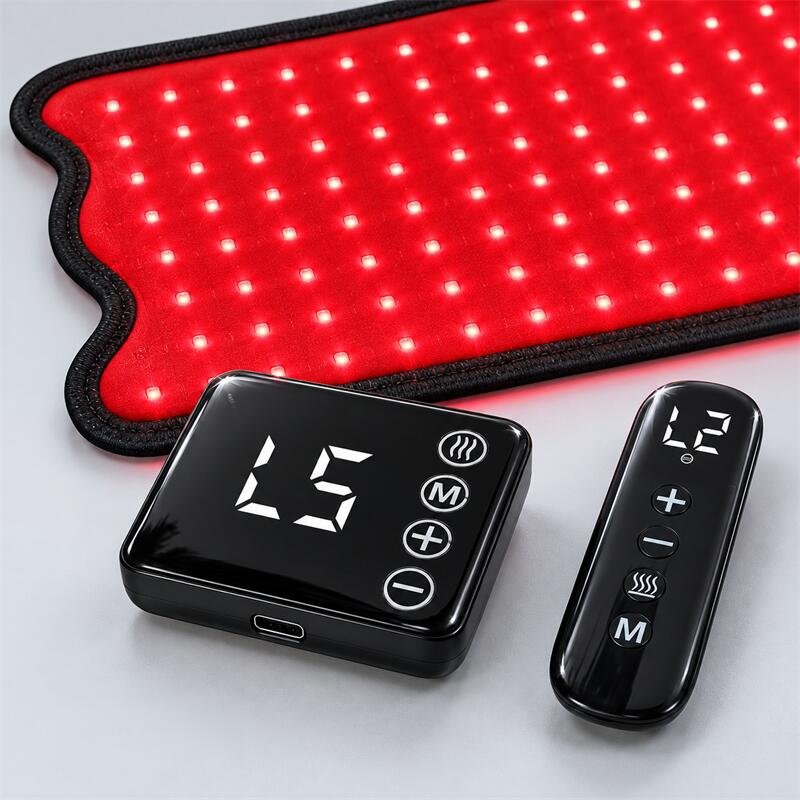

Adjustable Treatment Settings
The digital controller provides:
- Six intensity levels: L0–L5
- Adjustable timer from 5 to 100 minutes
- Five-minute timer increments
- Continuous or pulsed operation
- Adjustable pulse frequency from 10 to 40 Hz
- Individual or combined wavelength modes
Rechargeable and Portable
The built-in 2500–3000 mAh battery supports cordless operation. Type-C charging makes the unit easy to recharge with commonly available charging equipment.

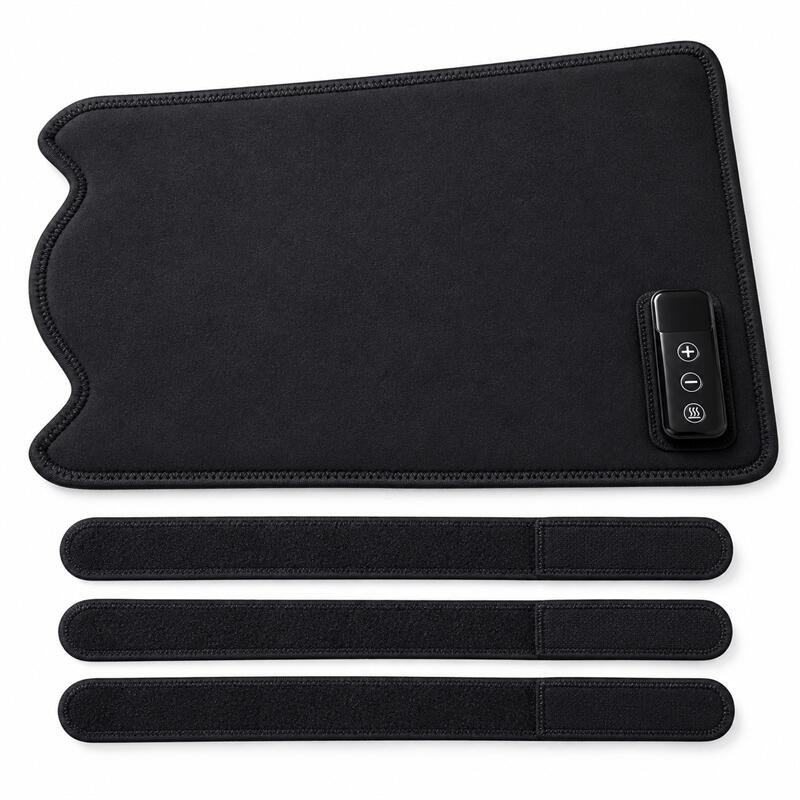

Flexible and Secure Fit
The soft neoprene construction bends around the horse’s neck. Three hook-and-loop straps can be adjusted separately to improve positioning and accommodate different neck sizes.

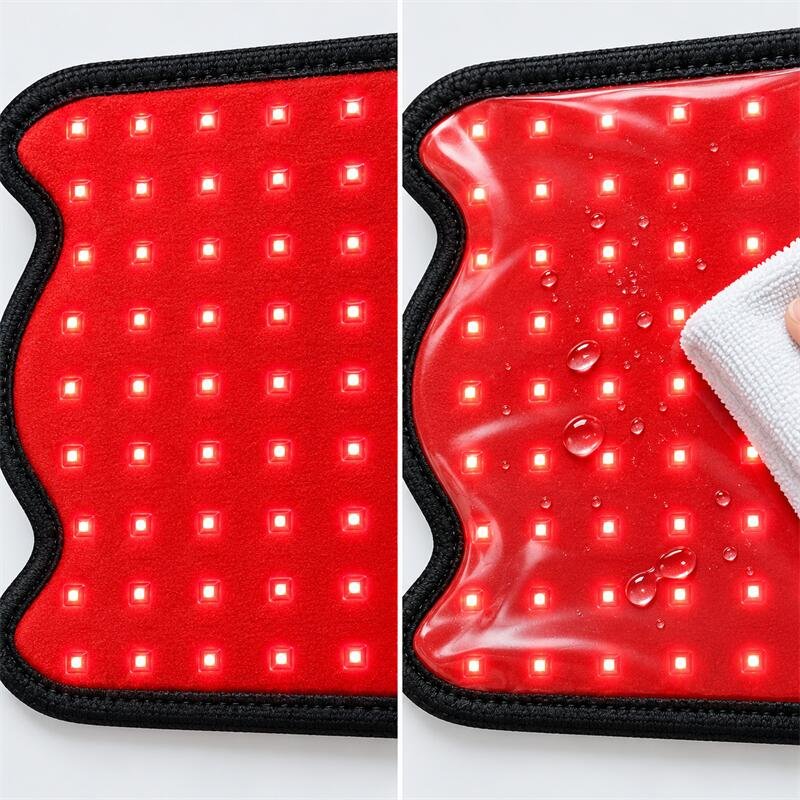

Optional Protective Film
A transparent protective covering can be added over the LED surface. It helps keep dust and hair away from the LEDs and makes routine surface cleaning easier.
Product Specifications
| Specification | Standard Version | Large Version |
|---|---|---|
| Product model | PT007 | PT007 |
| Product size | 56 × 30 cm | 63 × 40 cm |
| LED quantity | 156 triple-chip LEDs | 236 triple-chip LEDs |
| Standard wavelengths | 660 nm + 850 nm | 660 nm + 850 nm |
| Wavelength modes | Red, NIR and combined | Red, NIR and combined |
| Intensity settings | Six levels, L0–L5 | Six levels, L0–L5 |
| Timer | 5–100 minutes | 5–100 minutes |
| Pulse frequency | 10–40 Hz | 10–40 Hz |
| Output power | Up to 10 W | Up to 10 W |
| Battery capacity | 2500–3000 mAh | 2500–3000 mAh |
| Rated charging voltage | 5 V | 5 V |
| Charging port | Type-C | Type-C |
| Charging time | Approximately 3–4 hours | Approximately 3–4 hours |
| Working time | Approximately 120–180 minutes, depending on settings | Approximately 120–180 minutes, depending on settings |
| Strap size | 67 × 5 cm, three pieces | 67 × 5 cm, three pieces |
| Main material | Neoprene, ABS controller and LED components | Neoprene, ABS controller and LED components |
| Remote control | Optional | Optional |
| Transparent protective film | Optional | Optional |

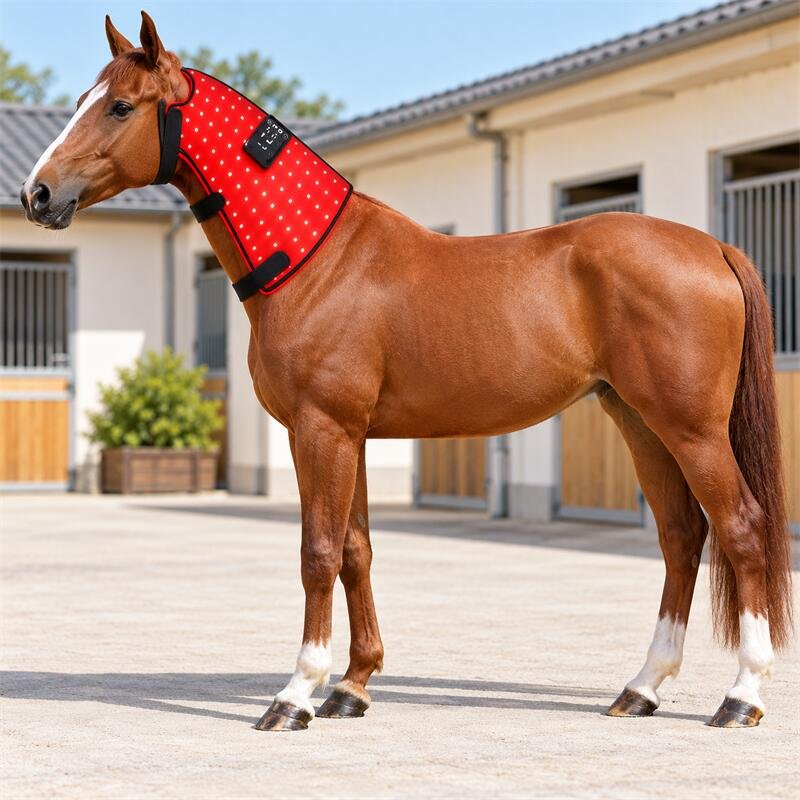

Designed for Daily Equine Care
This wrap can be included in a horse’s regular care routine for:
- Neck and poll-area care
- Pre-training warm-up
- Post-training recovery
- General muscle relaxation
- Care after transport or extended stable time
- Routine support for older or active horses
The product is intended as a wellness and recovery device. It should not replace diagnosis or treatment from a qualified veterinarian.
Simple Operation
- Place the LED side against the horse’s neck.
- Adjust the three straps until the wrap is secure but not overly tight.
- Turn on the controller.
- Select red light, near-infrared light or the combined mode.
- Set the intensity and treatment time.
- Monitor the horse throughout the session.
- Switch off the device and wipe the surface clean after use.
The horse’s coat and treatment area should be clean and dry before use.
Customization Options
The product can be adjusted to match different markets, brands and sales channels.
Available customization includes:
- Product size and shape
- LED quantity and layout
- Two-, three- or four-wavelength combinations
- Red and near-infrared LED ratio
- Controller functions
- Battery capacity
- Remote-control configuration
- Transparent LED protective film
- Fabric and edge finishing
- Strap length and position
- Product color
- Logo printing
- Label and user manual
- Retail box and complete packaging
For a new project, we can first confirm the intended horse size, coverage area, wavelength configuration and control functions before preparing a sample.

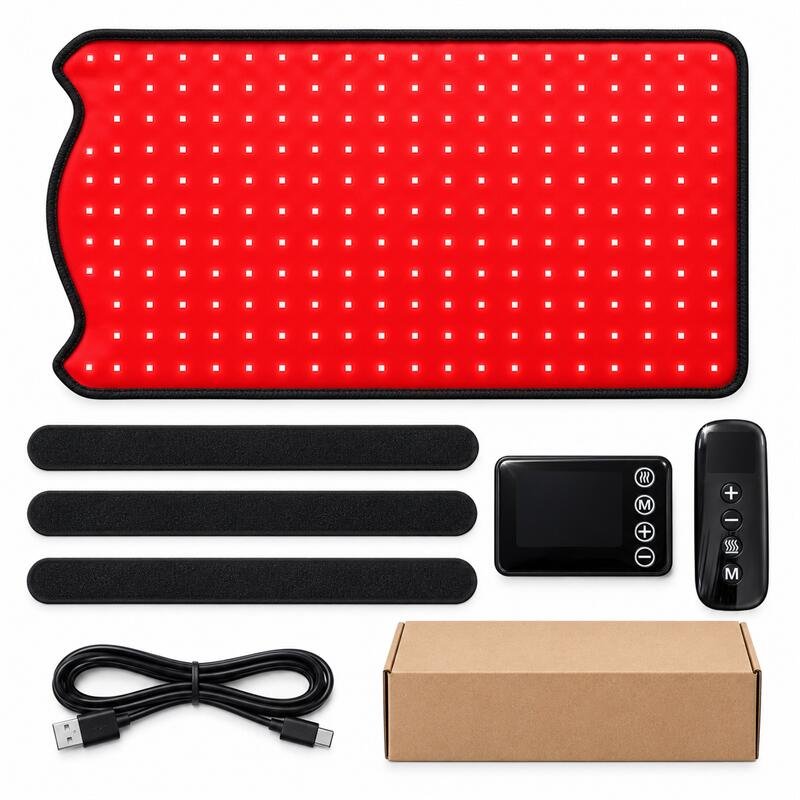

What Is Included
- 1 × Horse neck red light therapy wrap
- 3 × Adjustable fastening straps
- 1 × Digital controller
- 1 × Type-C charging cable
- 1 × User manual
- 1 × Packaging box
- 1 × Remote control, if selected
Frequently Asked Questions
What is the difference between the two sizes?
The 56 × 30 cm version contains 156 LEDs and is suitable for more compact neck coverage. The 63 × 40 cm version contains 236 LEDs and covers a larger area.
What wavelengths are included as standard?
The standard configuration uses 660 nm red light and 850 nm near-infrared light.
Can the wavelengths be customized?
Yes. Three- or four-wavelength configurations can be developed according to the intended application and market requirements.
Can the red and near-infrared light be controlled separately?
Yes. The controller allows the user to select individual wavelength modes or operate all wavelengths together.
Does the product need to stay connected to a power outlet?
No. It has a rechargeable battery and can be operated without a power cable during use.
Is a remote control included?
The remote control is optional. The wrap can also be operated directly from the digital controller.
What is the purpose of the transparent film?
The optional film covers the LED surface, helping reduce direct contact with dust, hair and dirt. It also makes routine cleaning more convenient.
Can the size and shape be changed?
Yes. The dimensions, outline, strap positions and LED layout can be adjusted for customized projects.
How should the wrap be cleaned?
Turn the device off and disconnect the controller before cleaning. Wipe the surface with a soft, slightly damp cloth and allow it to dry completely before the next use. Do not immerse the controller or charging components in water.
Can private-label packaging be provided?
Yes. Logo printing, labels, user manuals and retail packaging can be prepared according to your branding requirements.
