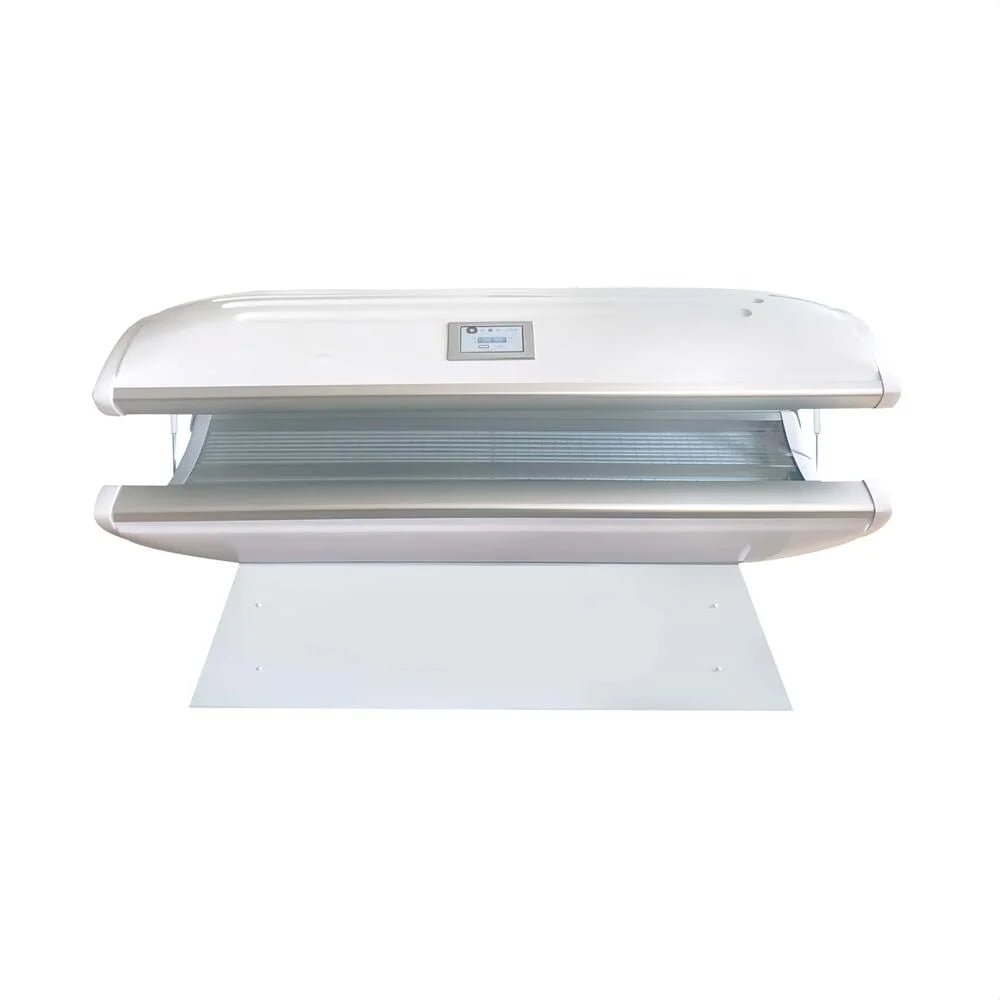

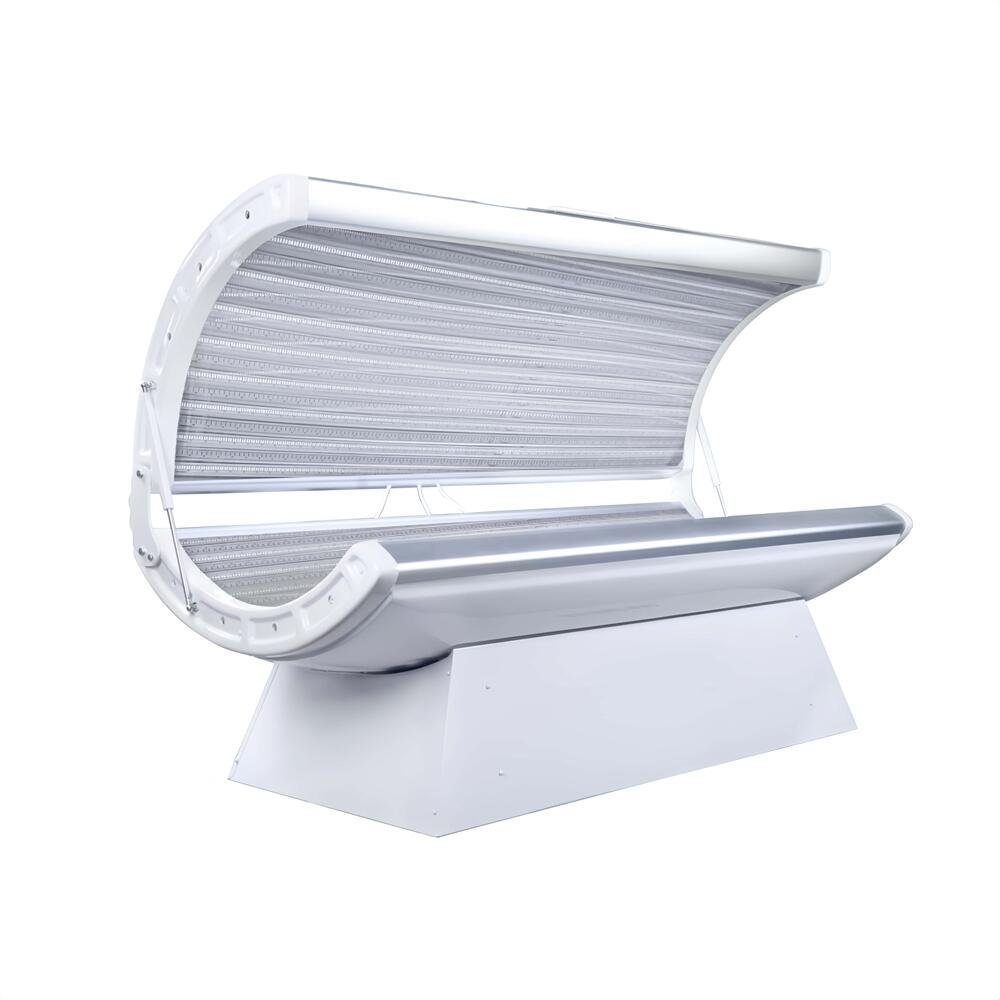

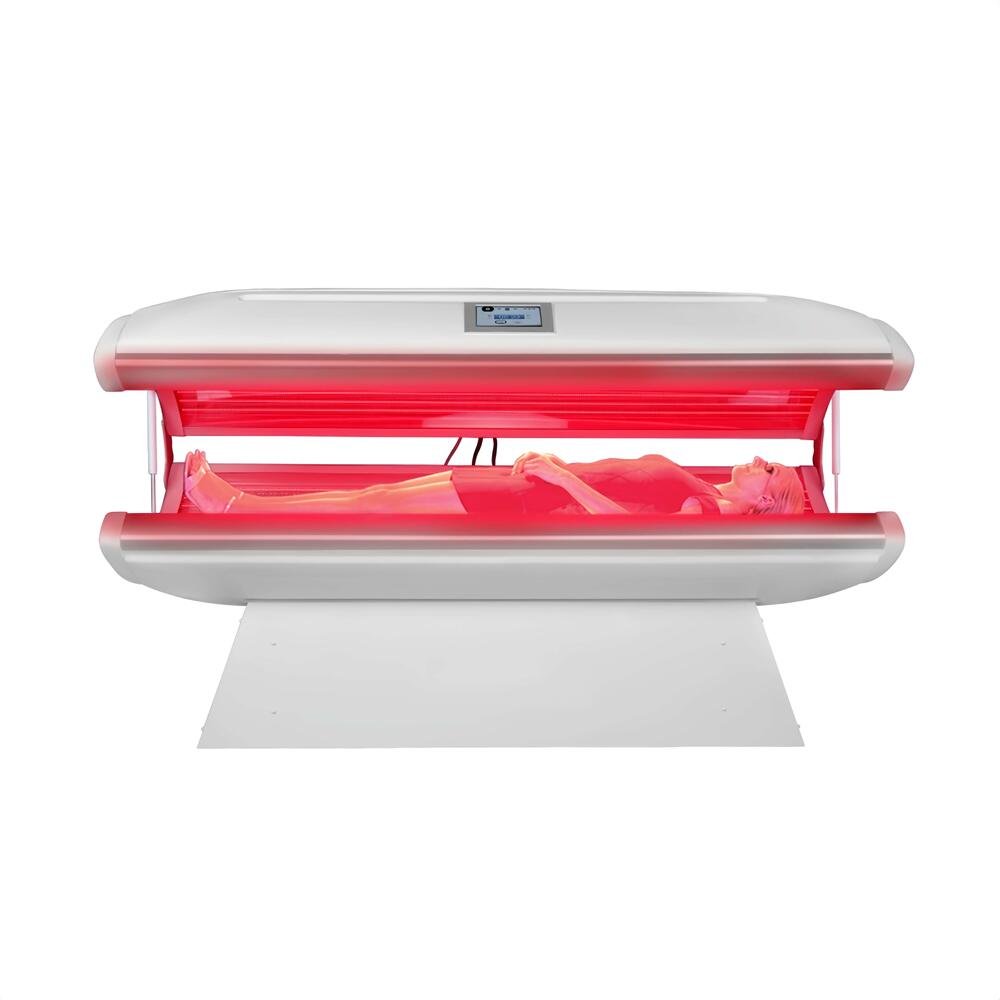

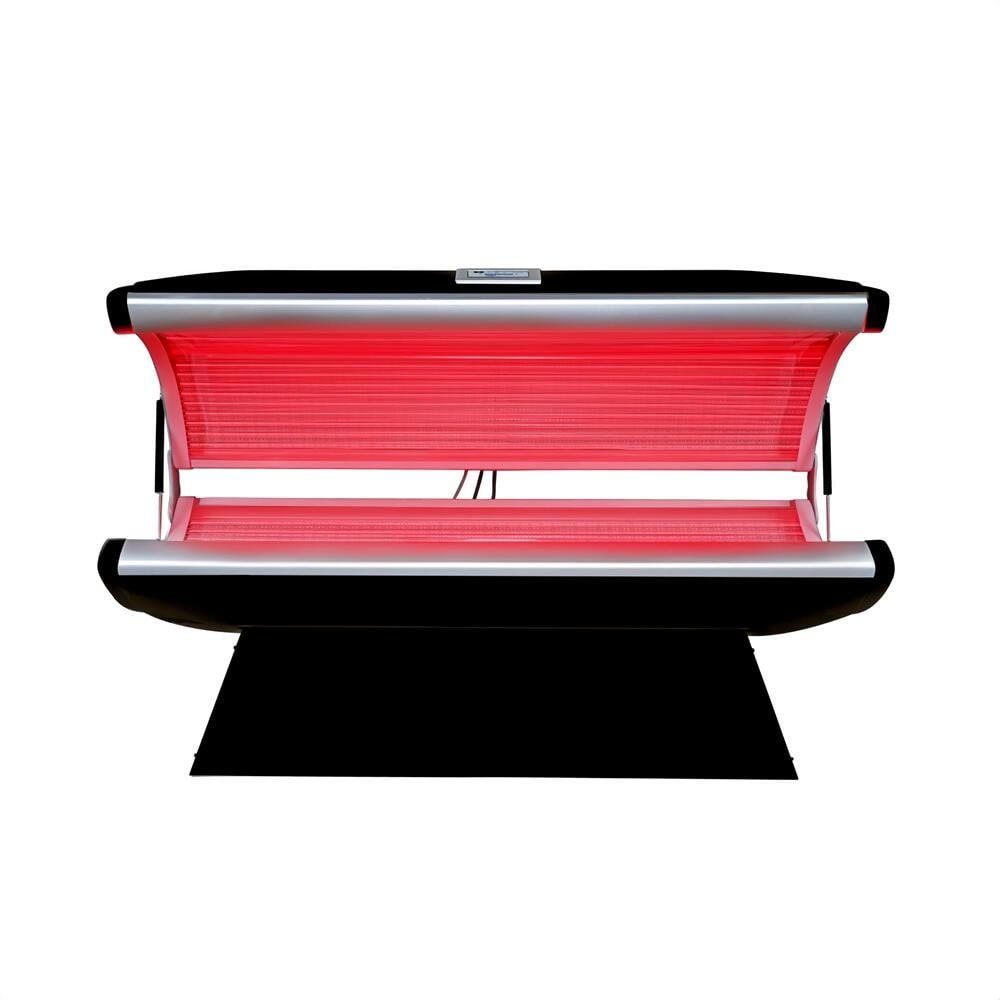

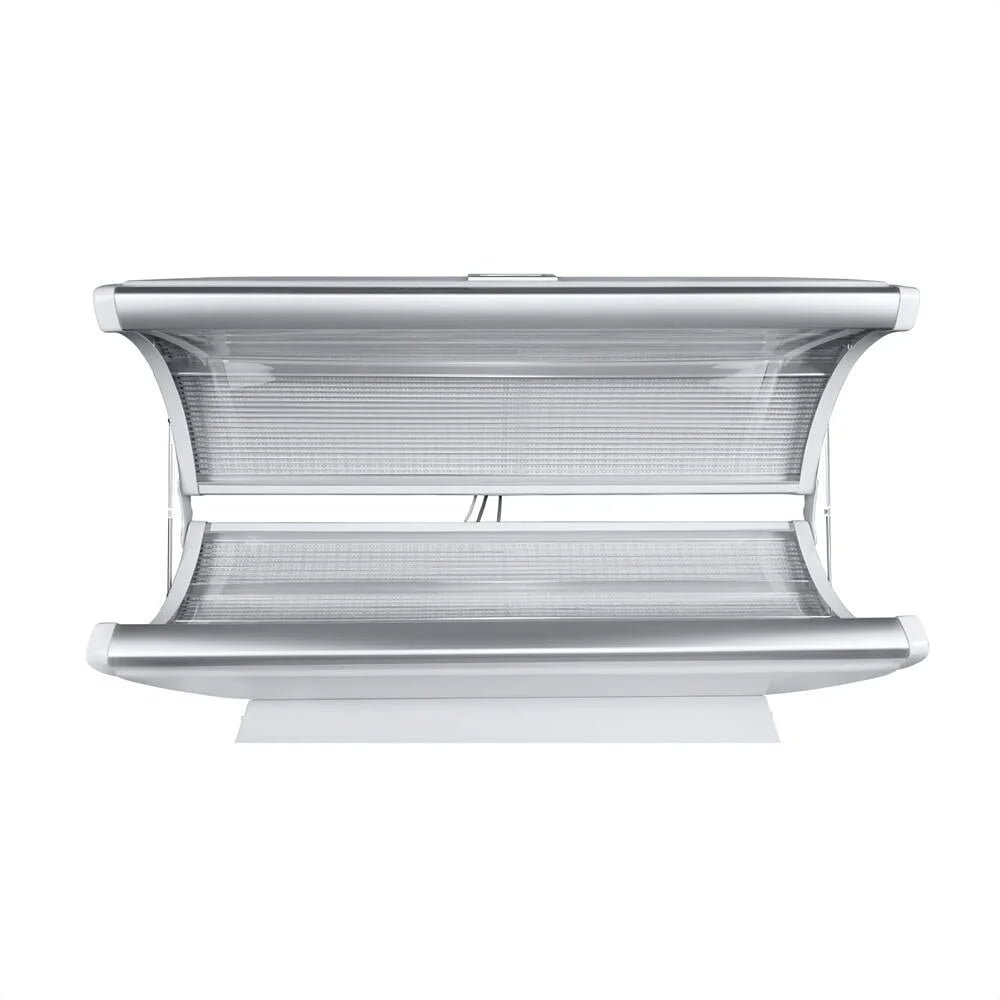

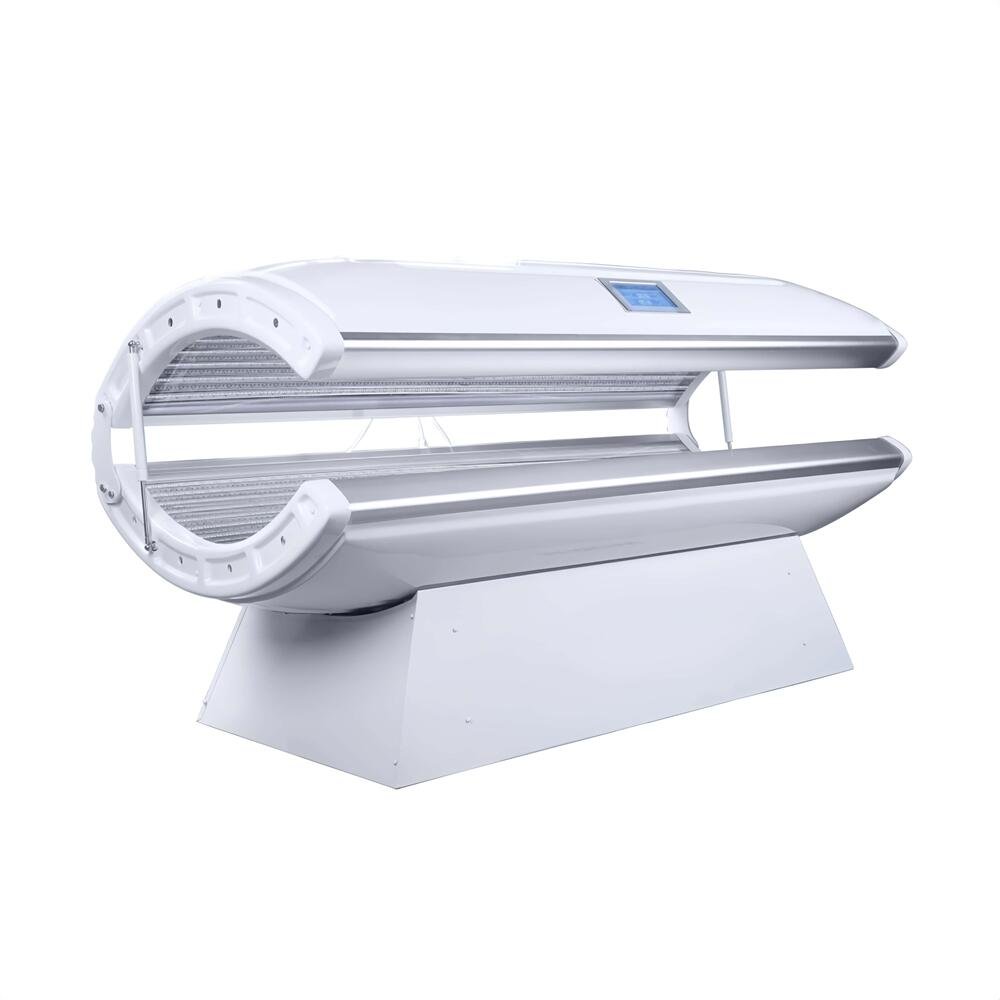

The MedLight M4 and M4+ are full-body red light therapy tanning beds designed for wellness centers, recovery studios, gyms, beauty salons and other professional facilities.
The familiar bed-style design provides broad exposure from above and below the body. Unlike a traditional tanning bed, the M4 series does not use ultraviolet light. It uses red and near-infrared LEDs to support muscle recovery, joint comfort, circulation and general skin wellness.
M4 and M4+ share the same compact body size and control functions. The main differences are LED quantity, power and electrical current. This gives buyers two practical options for different budgets, service volumes and performance requirements.
Description and Benefits
Full-body coverage in one session
The surrounding LED layout exposes large areas of the body at the same time. Clients do not need to turn around or reposition a small panel during the session.
This makes the M4 series suitable for businesses that want a straightforward full-body service with predictable appointment times. A typical session lasts 10–20 minutes, helping operators plan bookings and room usage more efficiently.
Red and near-infrared wavelengths
The M4 series uses 633 nm and 660 nm red light together with 850 nm and 940 nm near-infrared light.
Red light is mainly used for surface-level skin exposure, while near-infrared light penetrates more deeply and is commonly selected for muscle and joint recovery routines. Each wavelength can be controlled independently, allowing the operator to create different protocols for different services.
The final wavelength configuration should be confirmed before production, especially for customized orders.
M4 and M4+ options
The M4 is equipped with 11,616 LEDs and has a rated power of 1,160 W. It is the more economical option for facilities introducing full-body red light therapy or expecting moderate daily use.
The M4+ increases the LED quantity to 28,512 and the rated power to 2,850 W. It is more suitable for commercial operators who want a higher-output configuration or expect a heavier appointment schedule.
| Model | LED Quantity | Current at 220 V | Rated Power |
|---|---|---|---|
| M4 | 11,616 pcs | 6 A | 1,160 W |
| M4+ | 28,512 pcs | 13 A | 2,850 W |
LED quantity and power are not the only factors that affect treatment performance. Irradiance, treatment distance, wavelength selection, session time and protocol settings should also be considered.
Adjustable pulse and wavelength control
The pulse system can be adjusted from continuous output to frequencies up to 1,000 Hz. Operators can select wavelengths and configure pulse frequency and duty cycle through the controller.
The system also provides preset protocols and a manual mode. This makes daily operation easier for staff while still allowing experienced operators to create their own settings.
When the duty cycle is set to 100%, the light operates in continuous-wave mode. Lower duty-cycle settings create pulsed output.
Smart operation for commercial facilities
The M4 and M4+ can be configured with Smart Controller 2.0 or an optional Wireless Pad Controller 2.0. The control system supports:
- Independent wavelength selection
- Adjustable session time
- Preset and manual protocols
- Pulse frequency and duty-cycle settings
- Usage records
- Temperature monitoring
- Cooling-fan settings
- Wi-Fi and IoT management
- Bluetooth music control
The built-in Bluetooth stereo system allows clients to listen to music during a session. This is particularly useful for spas, wellness centers and recovery studios where the overall client experience matters.
Cooling and temperature protection
A full-body red light therapy tanning bed generates heat during operation, especially when used repeatedly throughout the day. The M4 series uses a forced-air cooling system to manage internal temperature and improve user comfort.
Operators can adjust the body-cooling fan from level 1 to level 3. The system also allows the facility to set:
- Cooling-fan startup temperature
- Overheat warning temperature
- Fan delay after each session
- Current internal temperature monitoring
If the internal temperature reaches the selected warning point, the system displays an overheat message. Proper ventilation around the machine is still required.
Compact footprint for a full-body bed
The M4 series measures 1935 × 855 × 990 mm when closed. Its open height is approximately 1390 mm, while the internal width and height are 710 mm and 370 mm.
Compared with larger commercial beds, this relatively compact footprint makes room planning easier. Buyers should still leave enough space around the machine for opening, ventilation, cleaning and maintenance.
Simple session preparation
For better light exposure, the treatment area should be uncovered. Cosmetics, jewellery and other accessories should be removed where practical. Protective eyewear is included and should be worn during operation.
A common routine is 10–20 minutes per session, 3–5 times per week. The final session plan should be based on the facility’s service protocol and the individual user’s condition and tolerance.
The M4 and M4+ are wellness products and should not replace professional medical advice or treatment.
Technical Specifications
| Parameter | M4 / M4+ Specification |
|---|---|
| Product Type | Whole-body red light therapy bed |
| Available Models | M4 and M4+ |
| Body Colors | White, orange or black |
| Light Source | Taiwan EPISTAR 0.2 W special LED |
| LED Quantity | 11,616 pcs / 28,512 pcs |
| Wavelengths | 633 nm, 660 nm, 850 nm and 940 nm |
| Irradiance | 35–61 mW/cm² |
| Wavelength Control | Independent control |
| Pulse System | 0–1,000 Hz |
| LED Lifespan | Up to 100,000 hours |
| Control System | Smart Controller 2.0 |
| Optional Controller | Wireless Pad Controller 2.0 |
| Bluetooth Music | Yes |
| Cooling Method | Forced-air cooling |
| Body Fan | Three adjustable levels |
| Input Voltage | 220 V or 110 V |
| Current at 220 V | 6 A / 13 A |
| Rated Power | 1,160 W / 2,850 W |
| Product Size | 1935 × 855 × 990 mm |
| Open Height | 1390 mm |
| Inner Width | 710 mm |
| Inner Height | 370 mm |
| Product Weight | 110 kg |
| Movable Wheels | Yes |
| Protective Eyewear | Included |
| Recommended Use | Commercial facilities or home use |
Electrical standards differ between countries. The required voltage, plug type, cable specification and circuit protection should be confirmed before placing the order. Installation should be completed or checked by a qualified electrician.
Applications
Wellness centers and recovery studios
The bed-style design allows businesses to add a premium full-body service without requiring staff to reposition panels during every appointment. Preset protocols help maintain consistent operation between different employees.
Gyms and sports facilities
The M4 series can be used as part of pre-workout or post-workout wellness routines. The 10–20 minute session time makes it easier to fit the service around training, stretching or other recovery activities.
Spas and beauty salons
Red light therapy can complement existing skin wellness and body-care services. The enclosed design, adjustable fan and Bluetooth music system provide a more private and comfortable client experience than a standard vertical panel.
Physiotherapy and rehabilitation environments
Clinics and recovery facilities may use the M4 series as a non-invasive wellness tool to support general comfort, mobility and exercise recovery. The operating protocol should be selected by qualified staff and should not replace medical treatment.
Home installations
The M4 can also be considered for private residences with sufficient space and a suitable electrical circuit. Before ordering, buyers should check the doorway, delivery route, installation area, floor access and local power requirements.
What’s Inside
A standard order is prepared according to the confirmed configuration and normally includes:
- One M4 or M4+ red light therapy tanning bed
- Protective eyewear
- Selected control system
- Bluetooth stereo system
- Cooling system
- Product operation manual
- Warranty card
- Electrical components and ordered accessories
The plug, controller, voltage, body color and optional accessories should be listed clearly in the Proforma Invoice before production. For overseas projects, buyers should also confirm door dimensions, transport access and installation requirements in advance.
Frequently Asked Questions
1. What is a red light therapy tanning bed?
A red light therapy tanning bed has a similar shape to a conventional tanning bed, but it uses red and near-infrared LEDs instead of ultraviolet lamps. It is designed for full-body photobiomodulation and may support muscle recovery, joint comfort, circulation and skin wellness without creating a UV tan.
2. Does the M4 red light therapy tanning bed use UV light?
No. The M4 and M4+ do not use ultraviolet light and are not designed to tan the skin. They use specific red and near-infrared wavelengths. Buyers should make this difference clear in their marketing, staff training and client instructions.
3. What is the difference between the M4 and M4+?
The body size, operating system and main functions are the same. The M4 has 11,616 LEDs and 1,160 W rated power, while the M4+ has 28,512 LEDs and 2,850 W rated power. The M4 suits moderate use, while the M4+ provides a higher-output commercial configuration.
4. What wavelengths does this red light therapy tanning bed use?
The standard specification includes 633 nm and 660 nm red light, plus 850 nm and 940 nm near-infrared light. Each wavelength can be controlled independently. As wavelength configurations may be customized, the final combination should be confirmed on the order before production.
5. How long is each red light therapy tanning bed session?
A common session lasts between 10 and 20 minutes. Many users schedule 3–5 sessions per week. Session time and frequency depend on the selected protocol, light intensity and individual tolerance. Facilities should create clear operating guidelines for staff and clients.
6. What is the irradiance of the M4 and M4+?
The specified irradiance range is approximately 35–61 mW/cm². Actual exposure may vary with wavelength selection, output settings and the user’s position inside the bed. Buyers comparing different machines should consider measured irradiance together with treatment distance and coverage uniformity.
7. What electrical supply is required?
The M4 series can be configured for 220 V or 110 V. At 220 V, the M4 is rated at 6 A and the M4+ at 13 A. A compliant dedicated circuit and protective grounding are recommended. Final electrical requirements should be checked by a qualified electrician.
8. How much installation space is needed?
The closed machine measures 1935 × 855 × 990 mm and reaches approximately 1390 mm when open. Additional clearance is required for the canopy, ventilation, cleaning and servicing. Buyers should check doorways, corridors, lifts and the final room layout before shipment.
9. Is the red light therapy tanning bed difficult to operate?
Daily operation is straightforward after staff training. The controller provides preset protocols, manual settings, session timing, fan control, Bluetooth music and wavelength selection. Administrative settings such as pulse frequency, duty cycle and overheat temperature should be managed only by trained staff.
10. Can the M4 and M4+ be customized for distributors?
Yes. Available options may include body color, voltage, electrical connection, controller configuration, branding and selected operating features. OEM requirements, order quantity, packaging and certification needs should be discussed before quotation so the final configuration matches the destination market.
For quotations, room planning or OEM requirements, please send us your preferred model, destination country, voltage and expected daily appointment volume. We can then recommend the more suitable M4 or M4+ configuration.
