This rechargeable red light therapy foot wrap covers the foot, heel and ankle in one flexible design. It combines 660nm red light, 850nm near-infrared light, adjustable heat and vibration massage for convenient daily foot care.
The wrap fastens securely around the foot with hook-and-loop straps. A detachable magnetic controller keeps the product cordless during use, while the optional remote makes it easier to change settings without bending down.
Product Introduction
The wrap contains 115 triple-chip LED modules. Each module combines two 660nm red light chips with one 850nm near-infrared chip, providing a total of 345 individual light chips across the treatment area.
Its flexible shape follows the foot and ankle more closely than a flat pad. The upper section wraps around the ankle, while the wider lower section covers the heel, arch and top of the foot.
Light, heat and vibration settings can be adjusted separately. Users can choose from three light levels, eight massage modes and multiple intensity levels according to their comfort.
Key Features
Foot and Ankle Coverage
The wrap is designed to cover the ankle, heel, arch and upper foot at the same time. Adjustable fastening makes it suitable for different foot shapes.

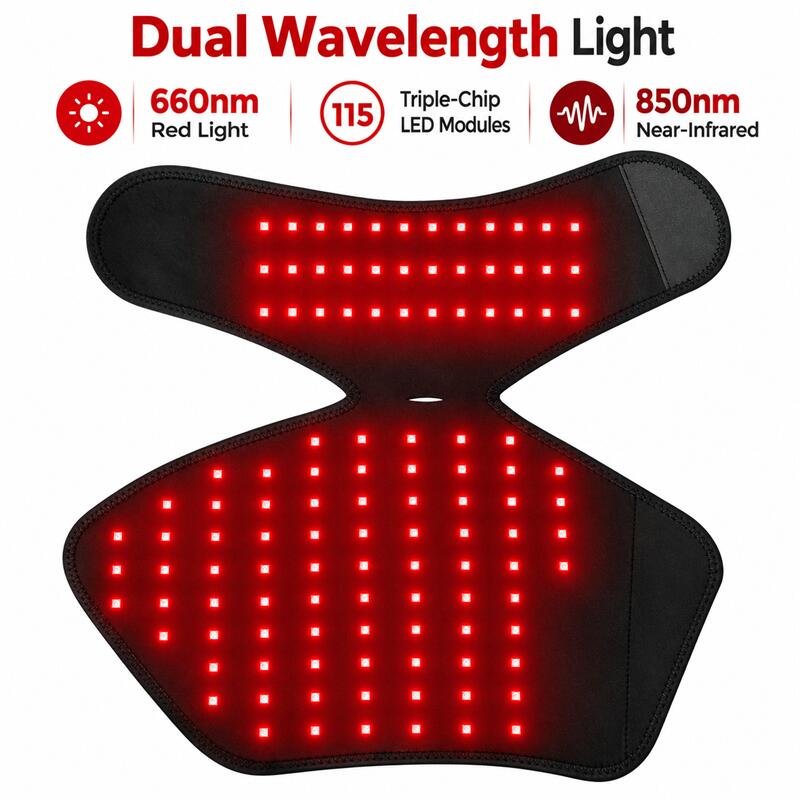

Dual-Wavelength LEDs
The LED surface combines visible 660nm red light with invisible 850nm near-infrared light. Both wavelengths operate together for convenient targeted use.

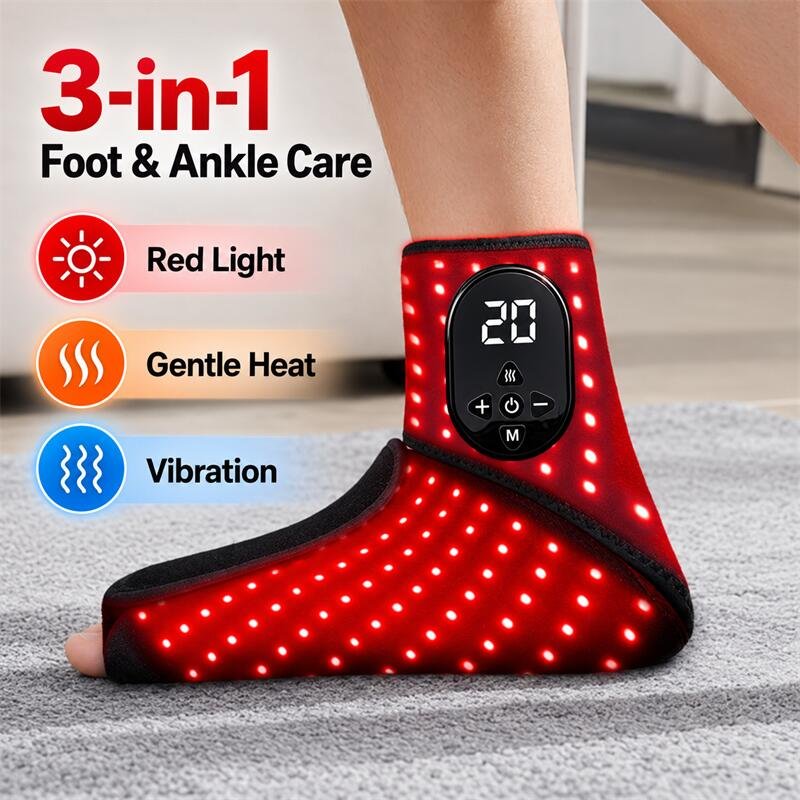

Light, Heat and Vibration
Red light, gentle heat and vibration massage are built into one wearable product. The settings can be adjusted to suit different daily routines.
Rechargeable and Cordless

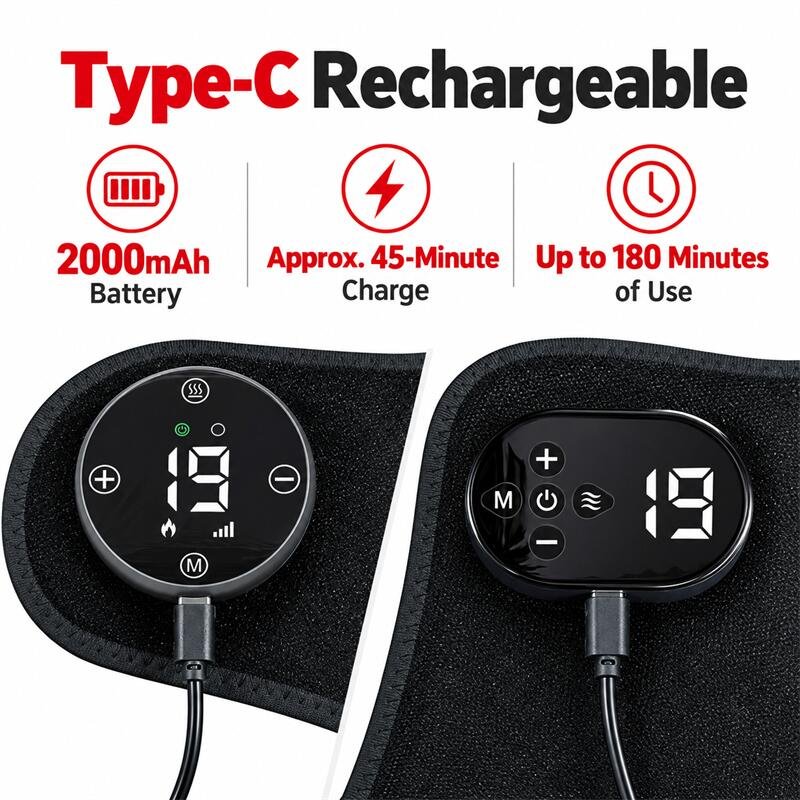

The 2000mAh rechargeable controller allows the wrap to be used without remaining connected to a wall outlet. Charging is through a standard Type-C port.

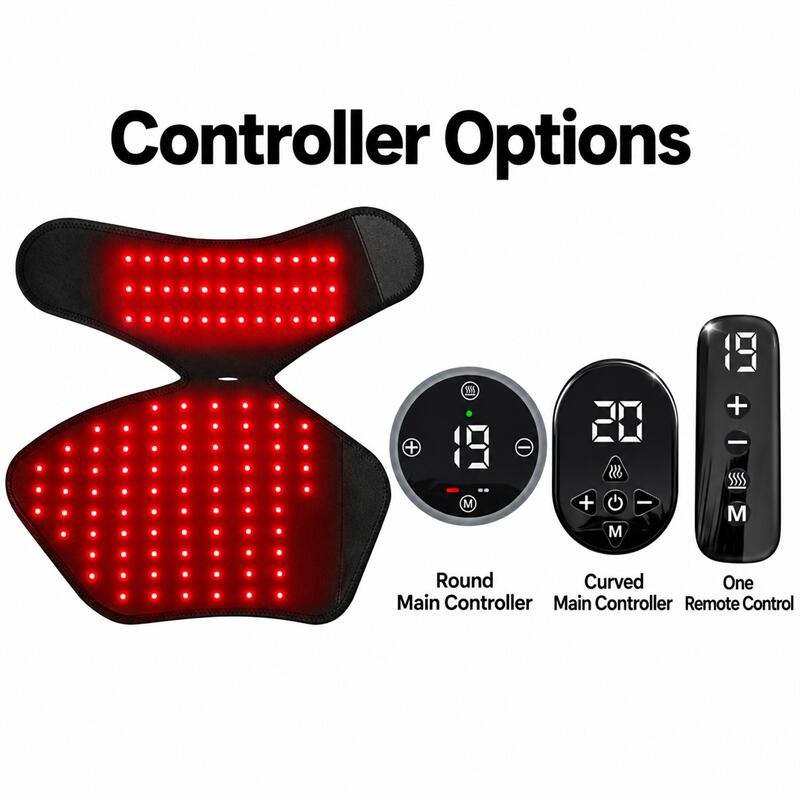

Detachable Magnetic Controller
The controller attaches magnetically to the wrap and can be removed before cleaning or storage. Round and curved controller styles are available.
Optional Remote Control
A remote-control version is available for users who prefer to adjust the mode or intensity without reaching the controller.
Optional Protective Film
The LED surface can be supplied with or without a transparent protective film. The film version is easier to wipe clean and helps protect the LED area during regular use.
Product Specifications
| Item | Specification |
|---|---|
| Model | WF004 |
| Product Type | Rechargeable red light therapy foot and ankle wrap |
| Target Areas | Foot, ankle, heel and arch |

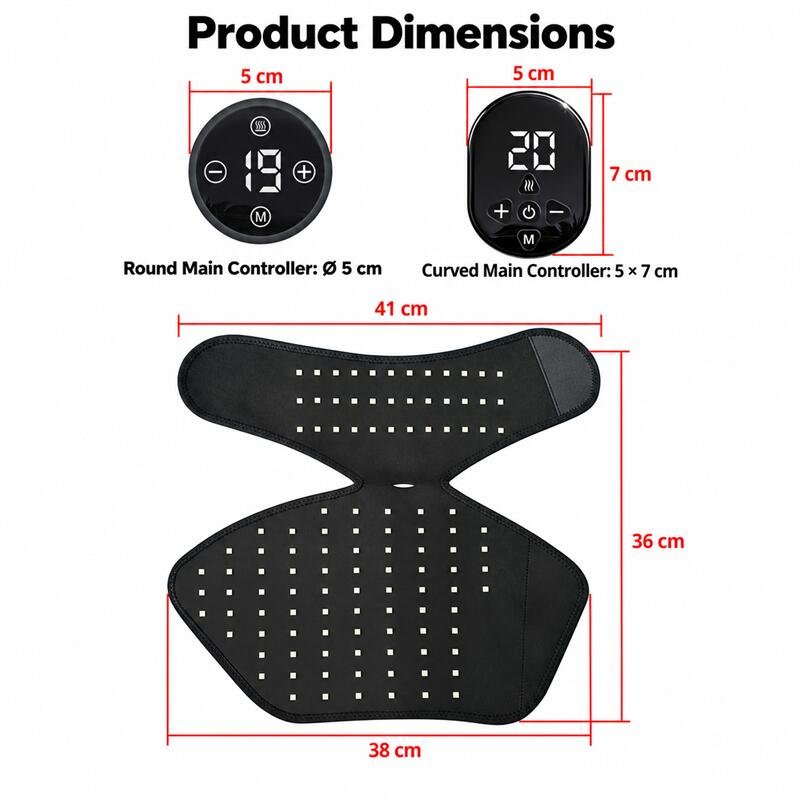

| Flat Product Size | Approx. 41 × 36 cm |
| Lower Section Width | Approx. 38 cm |
| LED Modules | 115 triple-chip modules |
| Individual Light Chips | 345 chips |
| LED Configuration | 230 × 660nm chips and 115 × 850nm chips |
| Wavelengths | 660nm red light and 850nm near-infrared |
| Light Levels | 3 levels |
| Massage Modes | 8 modes |
| Intensity Levels | 19 or 20 levels, depending on controller |
| Heating Function | Yes |
| Heating Layer | Graphene heating sheet |
| Battery Capacity | 2000mAh |
| Charging Method | Type-C, 5V |
| Rated Output | 0–10W |
| Working Time | Up to approximately 180 minutes, depending on settings |
| Controller | Detachable magnetic controller |
| Controller Options | Round or curved |
| Round Controller Size | Approx. 5 cm diameter |
| Curved Controller Size | Approx. 5 × 7 cm |
| Remote Control | Optional |
| Transparent Protective Film | Optional |
| Main Material | Flexible neoprene-style fabric |
| Controller Housing | ABS |
Available Configurations
| Option | Available Choices |
|---|---|
| Controller Shape | Round or curved |
| Remote Control | With remote or without remote |
| LED Surface | With transparent film or without transparent film |
| Battery | Rechargeable 2000mAh controller |
| Charging Cable | Type-C |
The controller, remote and protective-film options can be combined according to the required product configuration.
Easy Daily Use
- Open the wrap and position the wider section around the foot.
- Place the upper section around the ankle.
- Secure the hook-and-loop straps until the wrap feels comfortable.
- Attach the magnetic controller.
- Select the preferred light, heat and vibration settings.
- After use, switch off the controller and remove it before cleaning or storage.
The wrap should fit securely without restricting circulation.

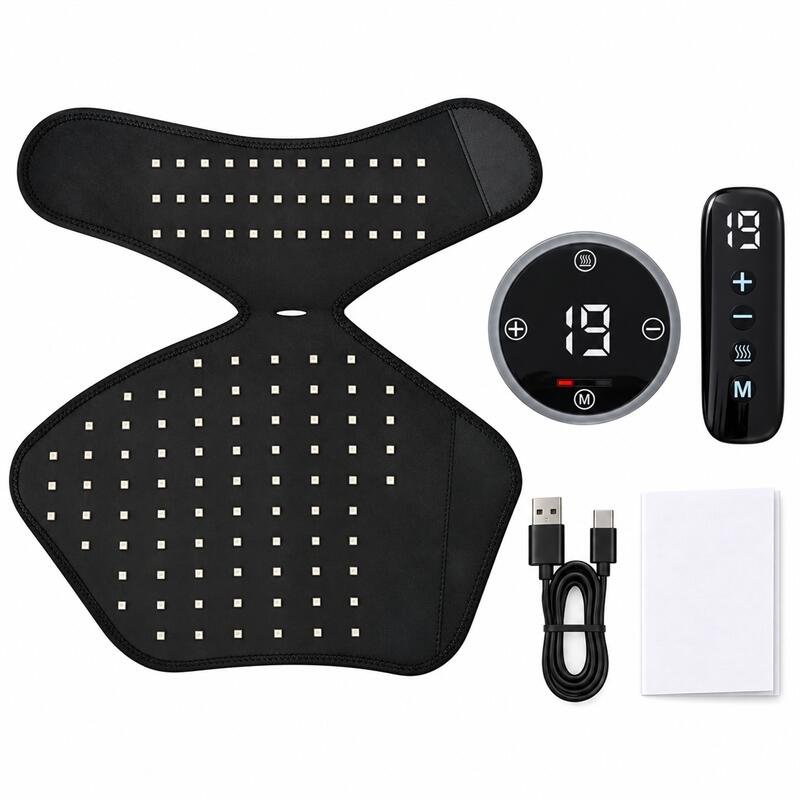

What Is Included
- Red light therapy foot and ankle wrap
- Rechargeable magnetic controller
- Type-C charging cable
- Remote control if selected
- User manual
- Retail packaging
Customization Options
The product can be adjusted for different brand and market requirements. Available customization may include:
- Logo printing
- Fabric color and surface material
- Controller shape
- Remote-control configuration
- Transparent protective film
- Wavelength combination
- LED arrangement
- Strap length and product dimensions
- Packaging design
- User manual and label language
Custom dimensions and electrical specifications are available for qualifying production orders.
Frequently Asked Questions
Does the wrap cover both the foot and ankle?
Yes. Its shaped design covers the ankle, heel, arch and upper foot rather than treating only one small area.
Does it have 115 or 345 LEDs?
The product contains 115 physical triple-chip LED modules. Each module has three light chips, giving a total of 345 individual chips.
Why can I only see the red light?
The 660nm wavelength is visible red light. The 850nm near-infrared wavelength is outside normal human vision, so it may appear dim or invisible even when operating correctly.
Can the light, heat and vibration be adjusted?
Yes. The wrap offers three light levels, eight vibration modes and multiple intensity levels. Available controls vary slightly between controller versions.
Is the remote control included?
The remote is optional. Versions with and without a remote control are available.
What is the difference between the film and non-film versions?
The film version has a transparent layer over the LED surface for easier cleaning and additional protection. The non-film version leaves the LED modules directly exposed.
Can the wrap be washed?
Remove the controller and charging components first. Wipe or gently spot-clean the fabric according to the supplied care instructions. Do not immerse the electronic parts in water.
How long does the battery last?
The 2000mAh battery can provide up to approximately 180 minutes of use. Actual working time depends on the selected light, heat and vibration settings.
Is this a medical device?
This product is intended for general wellness, comfort and routine recovery support. It is not intended to diagnose, treat or cure a medical condition.
