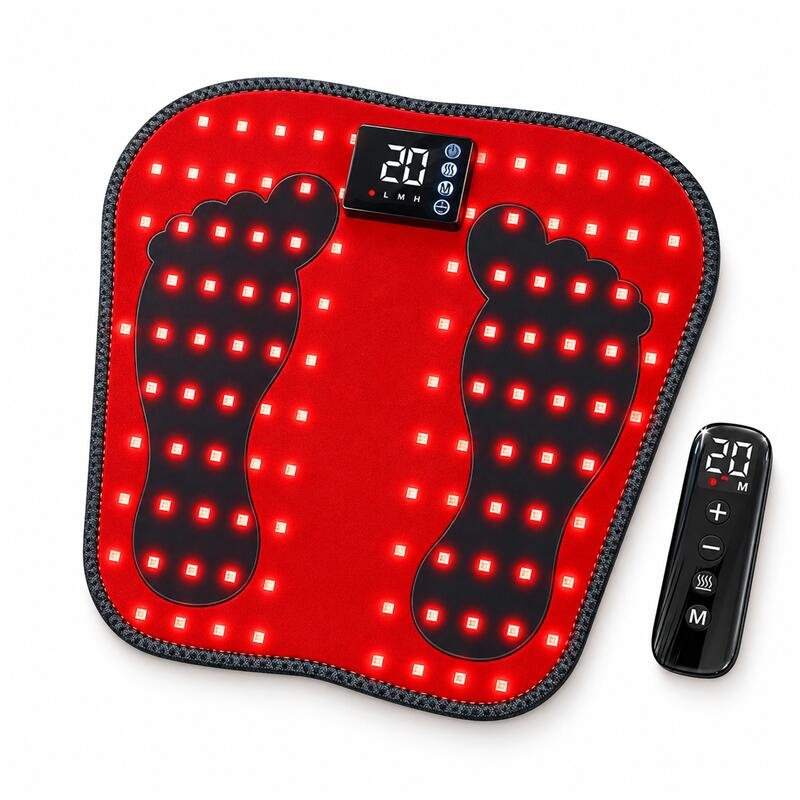

A rechargeable foot therapy mat combining 660 nm red light, 850 nm near-infrared light, adjustable heat and EMS/TENS pulse massage.
The 30 × 30 cm mat provides a defined treatment area for both feet. Users can adjust the light, temperature and pulse intensity through the rechargeable controller, with an optional remote control for easier operation.
Product Introduction
This red light therapy foot mat brings four functions together in one compact device: red light, near-infrared light, heat and EMS/TENS pulse massage.

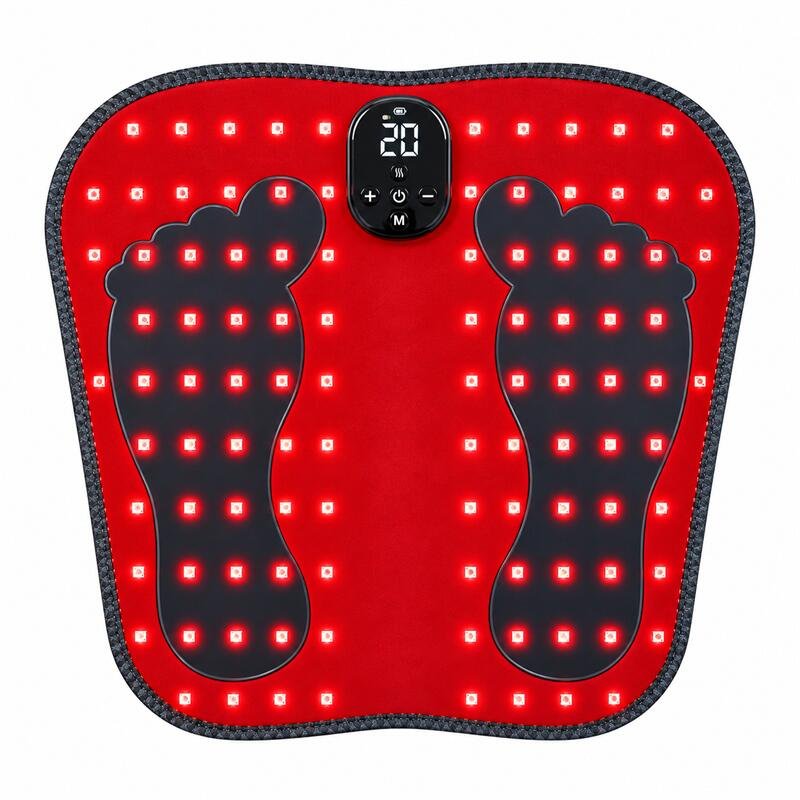

The mat contains 106 triple-chip LEDs arranged around the surface and within the two footprint areas. Each LED combines two 660 nm chips with one 850 nm chip, providing both visible red light and near-infrared light.

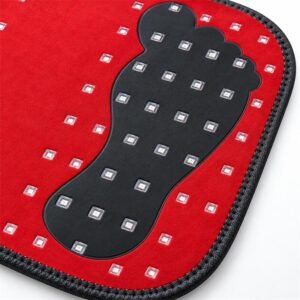

Two footprint-shaped conductive zones deliver the EMS/TENS pulse function. Three heat settings provide steady warmth, while the rechargeable controller allows cordless use without keeping the mat connected to a wall outlet.
Several controller and battery configurations are available, making the product easier to adapt for different price ranges and local markets.
Key Features
106 Triple-Chip LEDs
The LEDs are distributed across the full mat instead of being limited to a small area around the feet.
Each LED contains:
- Two 660 nm red-light chips
- One 850 nm near-infrared chip
- Three adjustable light levels
The 850 nm light is less visible to the human eye. A weaker visible glow does not mean that the near-infrared LEDs are not working.
EMS and TENS Pulse Massage
Two conductive electrode areas are positioned beneath the feet. The controller provides multiple massage programs and adjustable intensity levels.
Depending on the selected controller, the product supports:
- 6 or 8 pulse modes
- 19 or 20 intensity levels
- Independent intensity adjustment
- Optional remote operation
Users can begin at a low setting and increase the intensity gradually.
Three Heat Levels
The standard low-temperature configuration provides three settings:
- 38°C
- 40°C
- 43°C
This temperature range offers steady warmth without making the mat unnecessarily hot. Alternative temperature programs can be evaluated for customized orders.
Rechargeable and Cordless

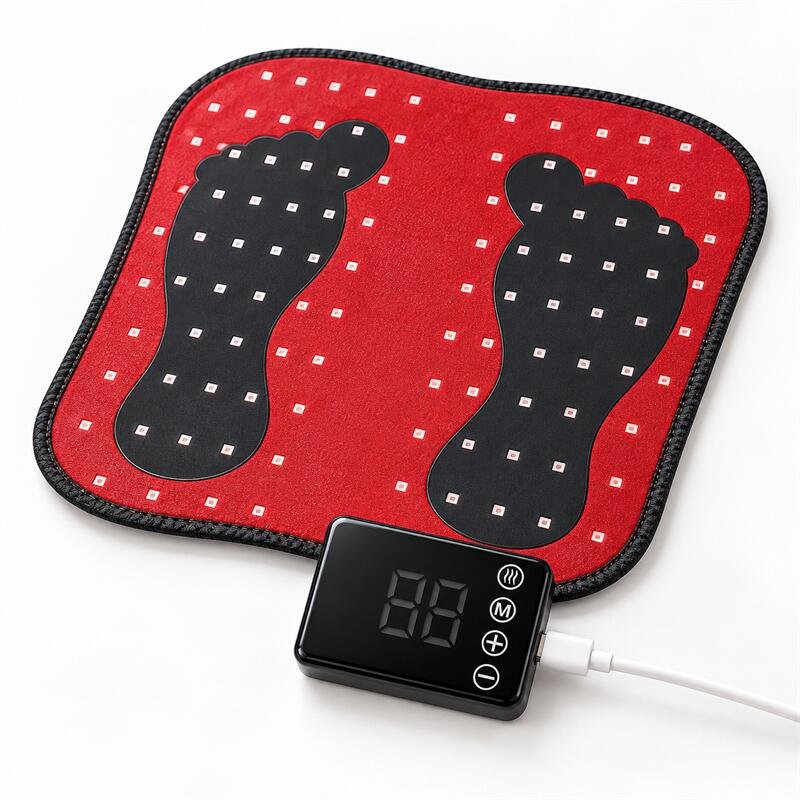

The controller uses a built-in rechargeable battery and supports Type-C charging.
Available battery options include:
- 2000 mAh
- 3000 mAh
A full charge takes approximately three to four hours, depending on the selected controller and charging source.
Compact Foot-Sized Design

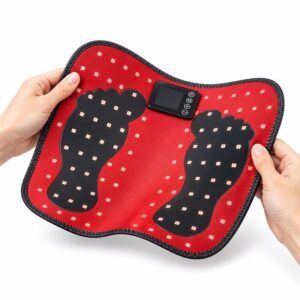

The therapy mat measures approximately 30 × 30 cm, with a lower width of approximately 24 cm. Its compact shape makes it suitable for use beside a sofa, under a desk or in a relaxation area.
Protective Surface
A transparent protective layer covers the light-emitting surface. It helps protect the internal LED and heating structure while making the mat easier to wipe clean after use.
Product Specifications
| Item | Specification |
|---|---|
| Model | WF003 |
| Product type | Rechargeable red light therapy foot mat |
| Main functions | Red light, near-infrared light, heat, EMS and TENS |
| LED quantity | 106 triple-chip LEDs |
| Wavelength configuration | 660 + 660 + 850 nm |
| Light levels | 3 levels |
| Heating technology | Graphene heating layer |
| Standard heat levels | 38°C, 40°C and 43°C |
| Conductive areas | 2 footprint-shaped electrode zones |
| Pulse modes | 6 or 8 modes, depending on controller |
| Pulse intensity | 19 or 20 levels, depending on controller |
| Product size | Approximately 30 × 30 cm |
| Lower edge width | Approximately 24 cm |
| Battery options | 2000 mAh or 3000 mAh |
| Rated input | 5V/2A |
| Charging port | Type-C |
| Charging time | Approximately 3–4 hours |

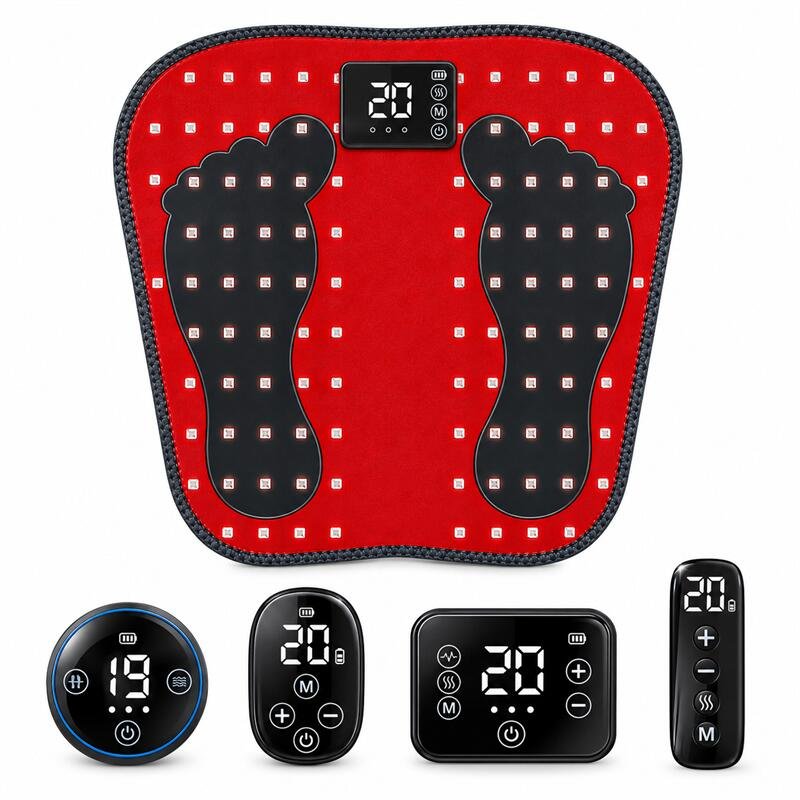

| Controller options | Round, curved or rectangular display |
| Remote control | Optional |
| Main materials | Fabric mat, conductive electrode film, graphene heating layer and ABS controller |
| Standard color | Black |
| Display language | English standard; other versions available |
Available Configurations
| Version | Controller | Battery | Remote |
|---|---|---|---|
| Option 1 | Round controller | 2000 mAh | No |
| Option 2 | Curved controller | 2000 mAh | No |
| Option 3 | Rectangular controller | 3000 mAh | No |
| Option 4 | Round controller | 2000 mAh | Included |
| Option 5 | Curved controller | 2000 mAh | Included |
| Option 6 | Rectangular controller | 3000 mAh | Included |
Massage modes, intensity levels and display layouts vary slightly between controllers. The final configuration will be confirmed before sampling or production.
Designed for Everyday Foot Care
The mat is suitable for daily routines such as:
- Relaxing the feet after standing or walking
- Providing comfortable warmth during cold weather

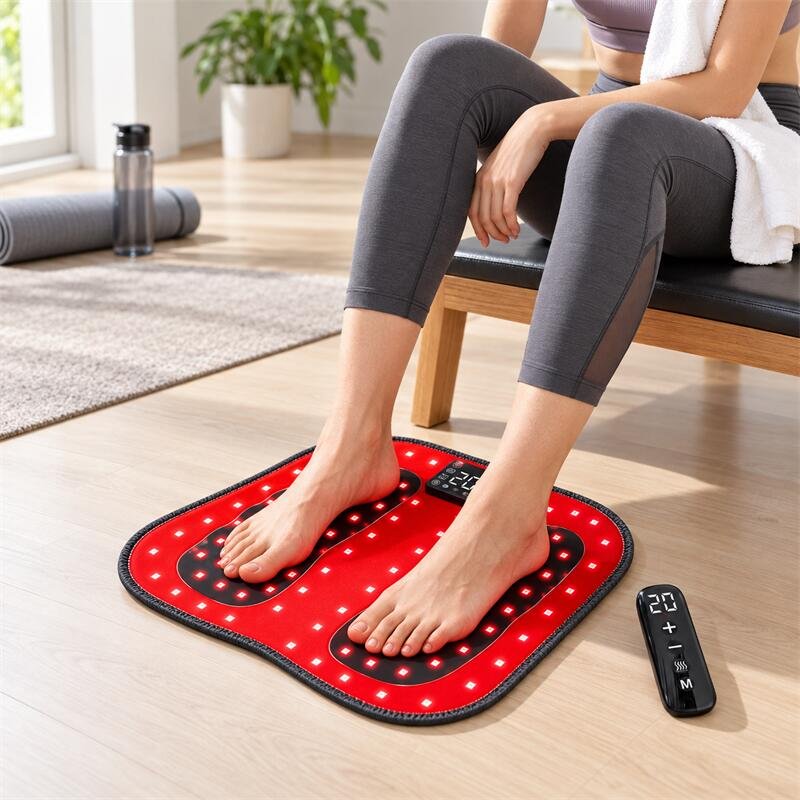

- Supporting post-exercise foot relaxation

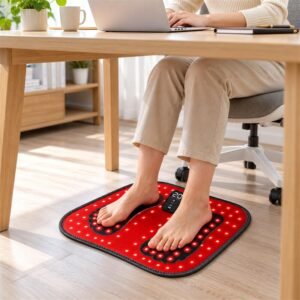

- Use under a desk or beside a sofa
- Adding a multifunction foot-care device to a wellness product range
The mat is intended for general wellness use and should not be presented as a replacement for professional diagnosis or medical treatment.
How to Use
- Place the mat on a flat, dry surface.
- Attach the charged controller.
- Place bare feet over the two conductive footprint areas.
- Start with the lowest EMS/TENS intensity.
- Select the preferred light and heat settings.
- Increase the pulse intensity gradually if comfortable.
- Stop using the mat if any discomfort or skin irritation occurs.
Do not use the product while it is charging.
Customization Options
The standard design provides a ready-made platform for different product lines. Available customization includes:
- Round, curved or rectangular controller
- 2000 mAh or 3000 mAh battery
- Remote control option
- Pulse modes and intensity program
- Heat temperature settings
- Red and near-infrared wavelength ratio
- LED layout
- Controller icons and display language
- Mat color and surface design
- Logo printing
- User manual
- Retail box and private-label packaging
Customized electrical programs and temperature settings are subject to engineering review and sample testing.
What to Confirm Before Sampling
To avoid differences between the sample and final production, buyers should confirm:
- Controller type
- Battery capacity
- Remote control requirement
- Heat temperature program
- Pulse modes and intensity levels
- Display language
- Logo position
- User manual language
- Packaging requirements
If the product will be sold using EMS or TENS claims, the required technical documents and regulatory classification should also be reviewed for the destination market.

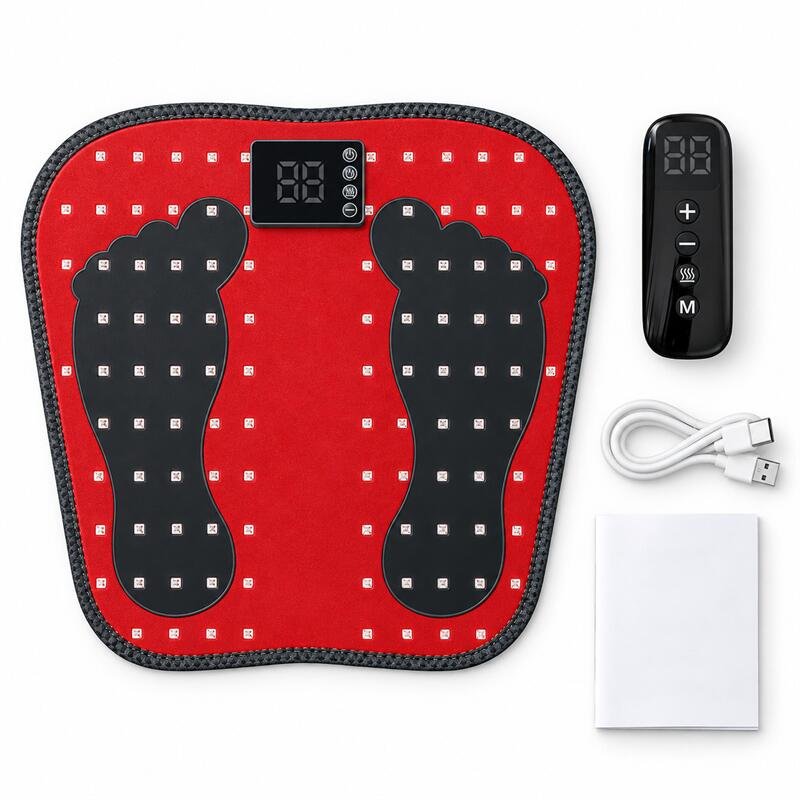

Package Includes
- 1 × Foot therapy mat
- 1 × Rechargeable controller
- 1 × Type-C charging cable
- 1 × User manual
- 1 × Remote control, if selected
Care and Safety
- Use the mat on a clean and dry surface.
- Begin with the lowest pulse intensity.
- Keep the controller and charging port dry.
- Do not fold the mat sharply.
- Do not use it on broken or irritated skin.
- Do not use the product while charging.
- Stop use if the feet become uncomfortable or excessively warm.
- Users with implanted electronic devices or existing medical conditions should seek professional advice before using electrical stimulation products.
Frequently Asked Questions
What functions are included?
The standard product combines 660 nm red light, 850 nm near-infrared light, graphene heating and EMS/TENS pulse massage.
How many LEDs does the mat contain?
It contains 106 physical triple-chip LEDs. Each LED uses two 660 nm chips and one 850 nm chip.
Can the heat and pulse massage be adjusted separately?
Yes. The controller provides separate controls for light, heat and pulse massage. The exact operating logic depends on the selected controller.
What is the difference between the three controllers?
The controllers differ in shape, battery capacity, display layout, massage programs and intensity levels. Round and curved versions use a 2000 mAh battery, while the rectangular version uses a 3000 mAh battery.
Is a remote control included?
The remote is optional. Each controller type is available with or without a remote.
Why is the 850 nm light difficult to see?
Near-infrared light at 850 nm is largely outside the visible range. It may appear dim even when operating normally.
Can the heat settings be customized?
Yes. The standard program uses 38°C, 40°C and 43°C. Other temperature programs can be evaluated according to the product positioning and safety requirements.
Can we add our own logo and packaging?
Yes. Logo printing, controller graphics, manuals, labels and retail packaging can be customized.
Develop a Foot Therapy Product for Your Market
Choose a standard configuration or tell us the controller, battery, heat settings, pulse program and branding required for your market. We will review the specifications and prepare a matching sample proposal.
