Overview
—

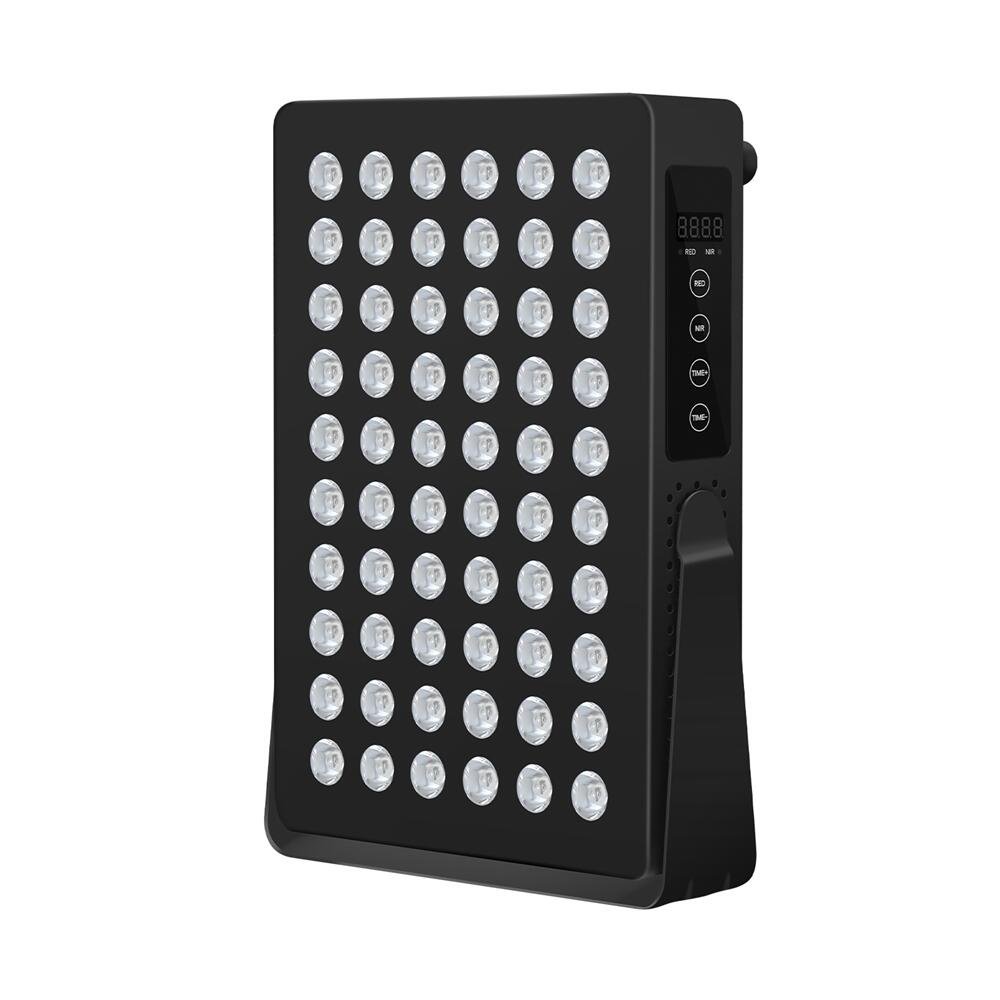

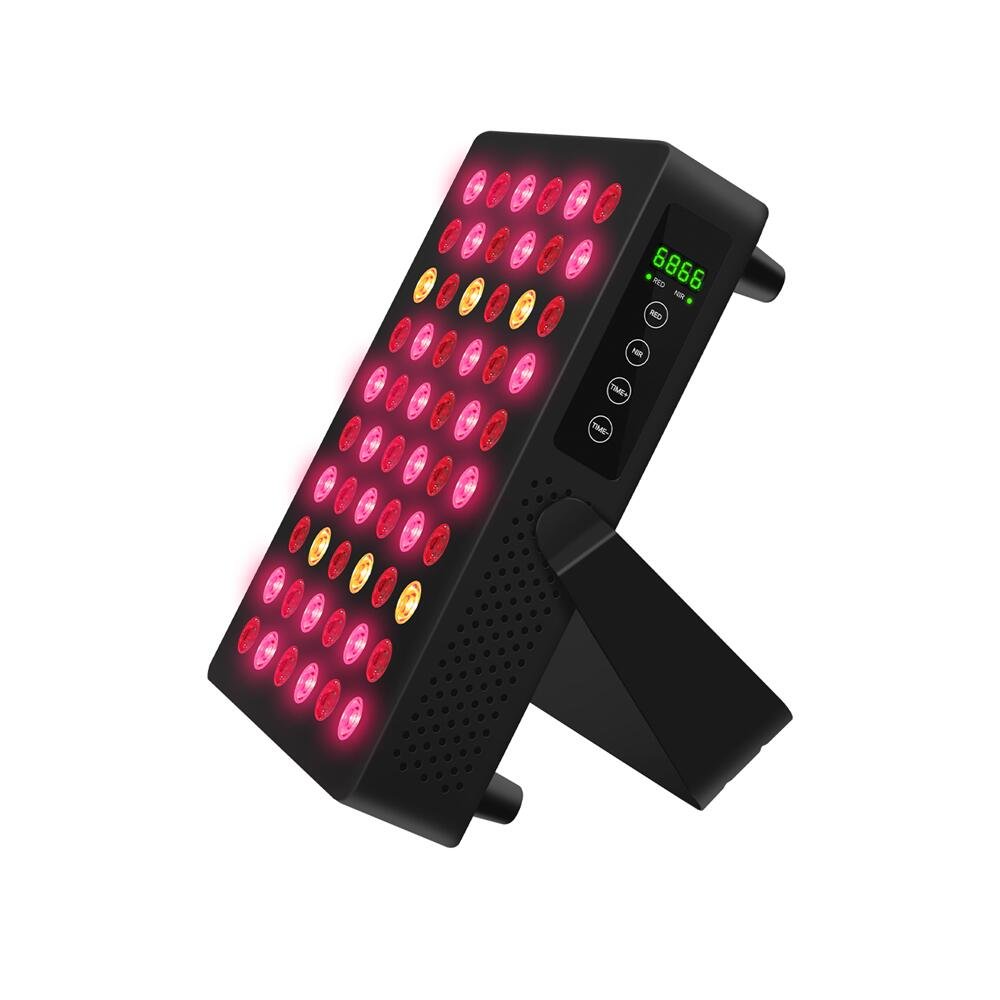

PL60 is a compact red light therapy LED panel for targeted wellness, beauty care, recovery support, and home-use applications. It combines red light and near-infrared light in one small panel, making it suitable for starter product lines, sample testing, compact treatment rooms, and private label red light therapy product programs.
This model uses five wavelengths:
• 630nm
• 660nm
• 810nm
• 830nm
• 850nm
Red wavelengths are commonly used for surface-level wellness and beauty care applications. Near-infrared wavelengths are used when deeper light penetration is required.
The device supports three working modes:
• Red + NIR
• Red only
• NIR only
Because of its compact size, this red light therapy device is easier to package, ship, display, and use in smaller spaces. It can work as a standalone led light therapy device or as an entry model in a wider red light therapy product range.
Key Features to Consider
—
When shopping for an LED red light therapy panel, look for these foundational technical specifications:
• The Dual-Wavelength Standard: High-utility panels typically combine a 1:1 ratio of 660nm red light (which targets skin tone, wrinkles, and surface cellular repair) and 850nm near-infrared (NIR) light (which penetrates deep tissues for joints, muscles, and pain relief).
• Irradiance: This measures the power output and light intensity. Look for devices that deliver over 100 mW/cm² at a distance of 3 to 6 inches to ensure clinical-grade penetration.
• Size Configurations: Panels span from compact, portable desktop units ideal for targeted facial or joint care, to large half-body and door-mounted vertical systems designed for full-body wellness and athletic recovery.
For this compact red light led therapy panel, the main value is targeted use. It is not designed to replace large full-body systems, but it offers a practical size for local treatment areas, home wellness kits, and entry-level red light therapy product programs.
Technical Data Sheet
—
| Item | Specification |
|---|---|
| Model | PL60 |

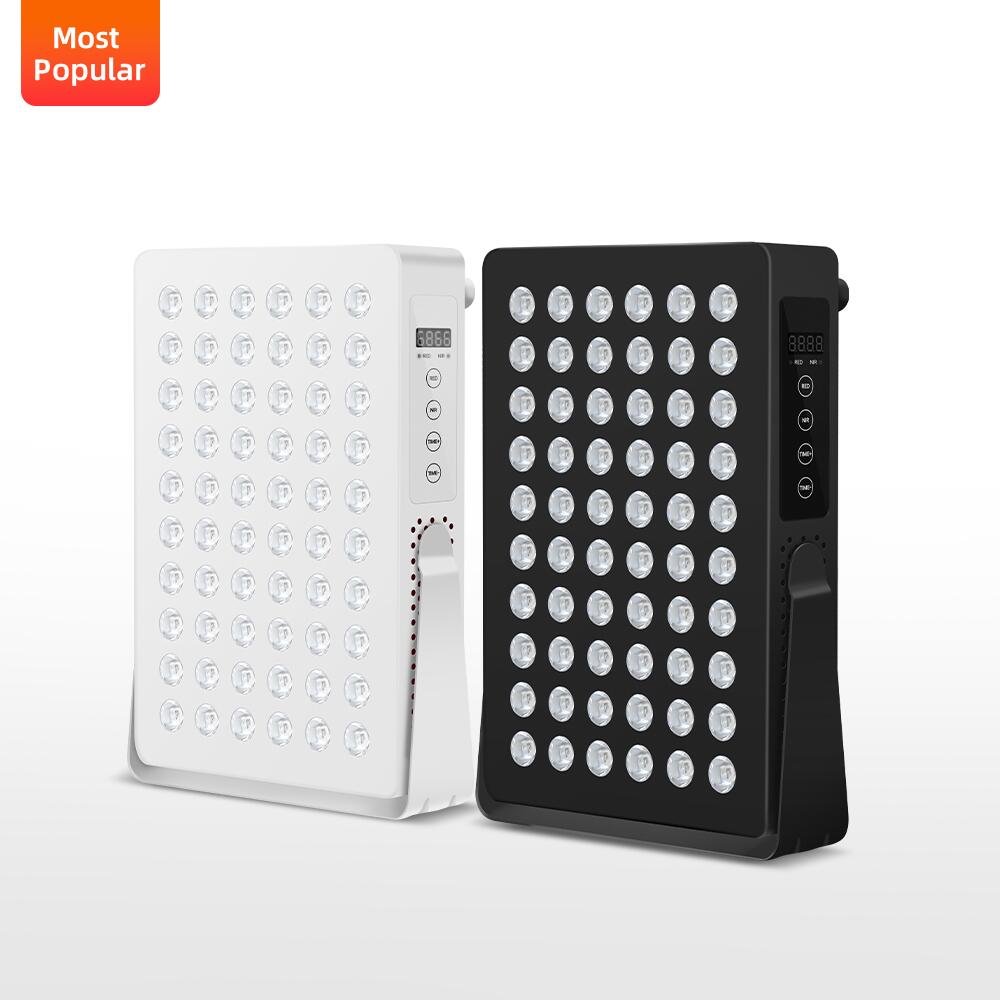

| Color | Black & White |
| LED Quantity | 60 pcs |
| Power Consumption | 90W |
| Output Power | 85W |
| Wavelengths | 630 / 660 / 810 / 830 / 850nm |
| Beam Angle | 30° |
| Irradiance at 3” / 6” / 9” / 12” / 18” | 210 / 178 / 140 / 127 / 114 mW/cm² |
| Energy at 3” / 6” / 9” / 12” / 15” / 18” | 12.6 / 11.64 / 10.98 / 10.44 / 9.96 J/cm² per minute |
| Pulse | No |
| Timer | 0–30 min |
| Dimmer | No |
| Working Modes | Red + NIR / Red / NIR |
| Synchronous Working | Yes |
| Input Voltage | 90–240V |
| Max Current | 1A |
| EMF Emission | 0 |
| Flicker | No |
| Material | Steel |

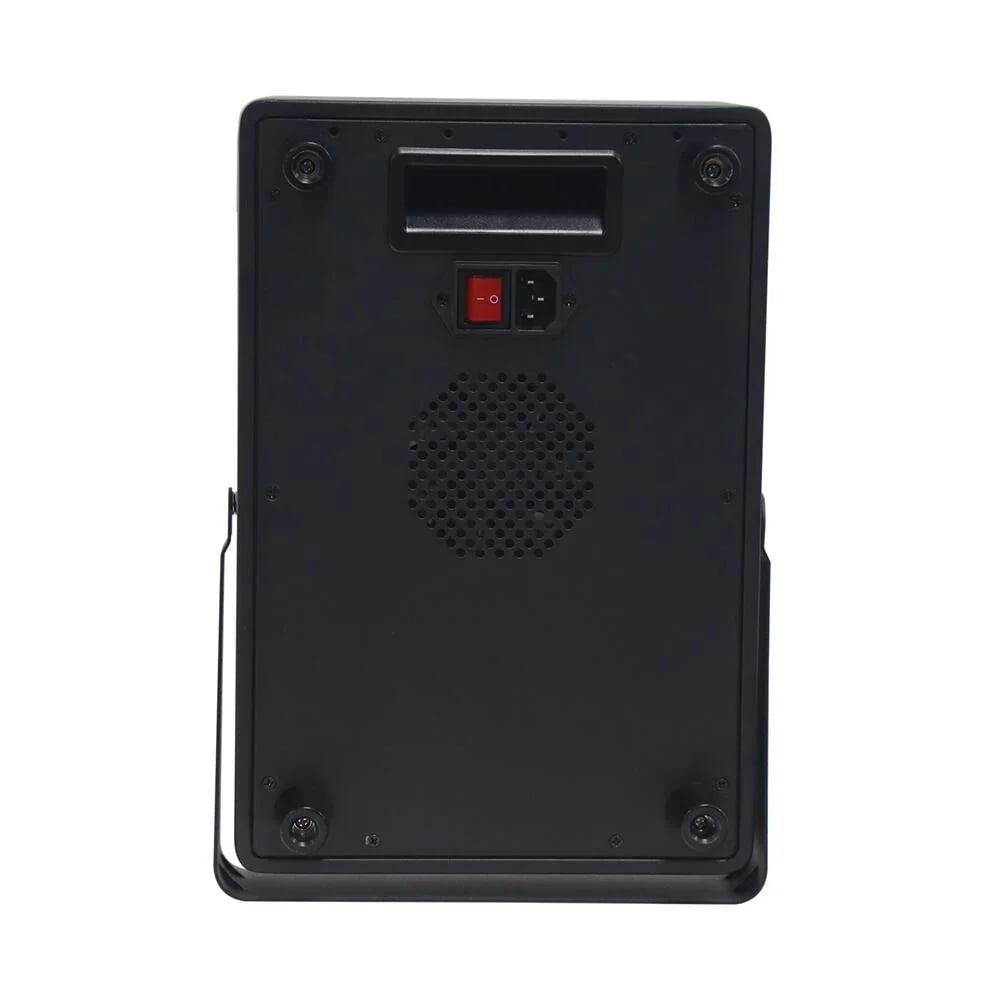

| Cooling Fans | 1 pc |
| LED Lifespan | 100,000 hours |
| Working Temperature | -25°C to +65°C |
| Working Humidity | 15–90% RH |
| Accessories | Standard |
| Warranty | 2 years |
| Product Size | 31.6 × 21.4 × 6 cm |
| Unit Packaging Size | 34 × 14 × 39.5 cm |
| Net Weight | 2.5 kg |
| Gross Weight | 3.5 kg |
| Remote Control | Yes |
| Bluetooth & APP | No |
| Sound Level at 15cm | 45 dB |
| IP Level | IP21 |
Simple positioning:
| Product Need | Fit |
|---|---|
| Entry-level red light therapy led panel | Suitable |
| Targeted body area use | Suitable |
| Home wellness product line | Suitable |
| Sample testing | Suitable |
| Private label starter model | Suitable |
| Full-body coverage | Better to choose a larger panel |
| Large commercial recovery room | Better to choose a larger model |
Applications
—
This compact panel is suitable for small-area and targeted applications. It is often used when a large red light therapy panel is not necessary, or when a smaller device is easier to sell, ship, and operate.
| Application Area | How It Can Be Used |
|---|---|
| Home Wellness | Personal wellness routines, compact home setups, starter kits |
| Beauty Care | Face, neck, and surface-level beauty care applications |
| Fitness Recovery | Targeted post-workout recovery support for smaller body areas |
| Wellness Studios | Small private rooms, tabletop use, compact service add-ons |
| Spas & Beauty Clinics | Localized care areas, facial rooms, beauty device product lines |
| Yoga & Pilates Studios | Post-class wellness add-ons and private room use |
| Veterinary & Pet Wellness | Targeted pet wellness applications, depending on setup and professional guidance |
| OEM / Private Label | Branded entry-level red light therapy product programs |
For home wellness brands, this type of red light therapy product is easier to package and position as an entry-level model. For studios and clinics, it can work as a compact add-on for targeted sessions or small treatment areas.
It can also be used as a smaller model within a complete product family, together with medium and large red light therapy LED panel options.
How to Use a Panel Safely
—
Correct use helps make the product easier to operate in both personal and commercial environments. Final usage guidance should always follow the user manual, product label, and local market requirements.
Positioning:
• Place the panel approximately 6 to 12 inches away from clean, bare skin.
• Near-infrared light, such as 850nm, is invisible to the human eye. During a combined session, some LED chips may look unlit, but they are still working.
• Keep the panel stable during use and avoid placing it too close to the body unless the manual allows it.
Timing:
• Start with 5 to 10 minutes per target zone.
• Gradually scale up to 15 or 20 minutes if needed.
• A common routine is 3 to 5 times per week, depending on user comfort and application needs.
Eye Protection:
• High-power LED panels feature strong irradiance.
• Use the included opaque protective goggles or sunglasses if the panel is angled near the face.
• Do not stare directly into the LEDs during operation.
For product selection, it is helpful to confirm the main goal first, such as facial skin care, muscle recovery support, joint comfort, or general wellness use. Panel size, treatment distance, and session setup may vary by application.
What’s Inside
—

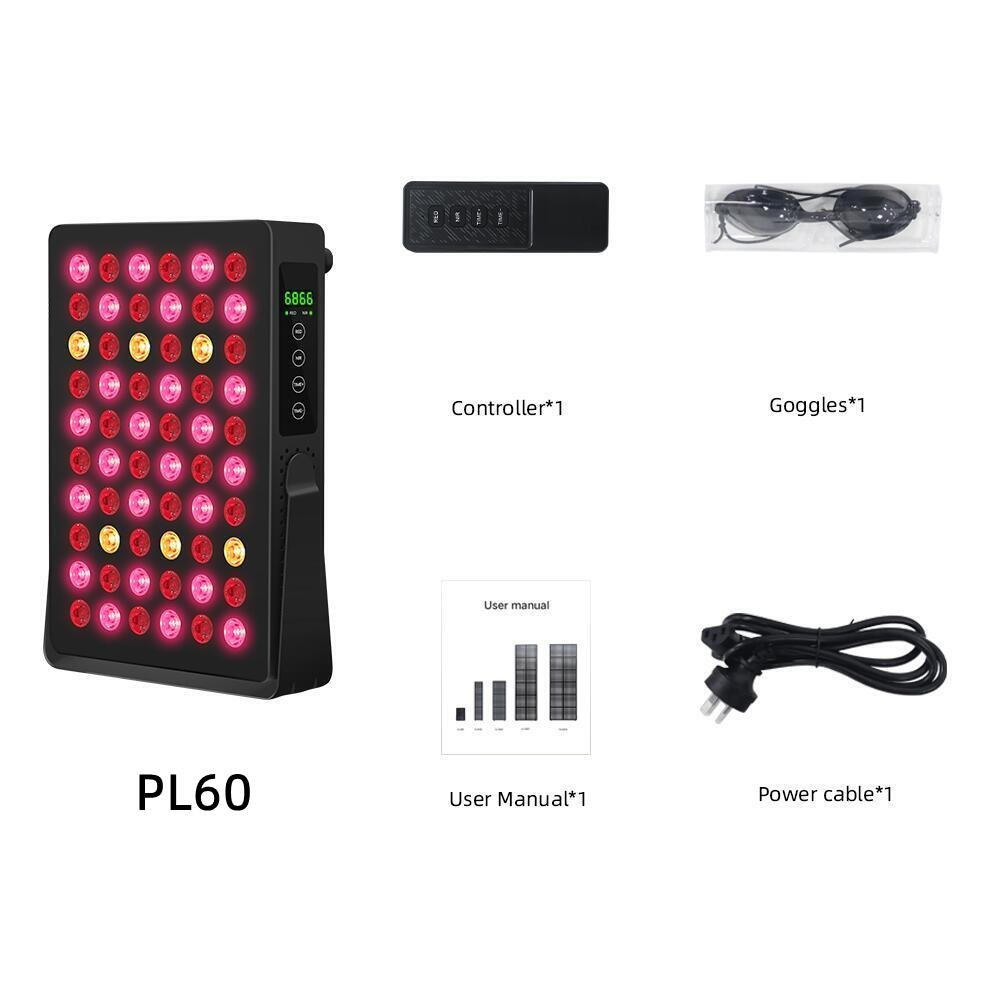

A standard package usually includes:
• Red light therapy LED panel
• Power cable
• Remote control
• User manual
• Protective packaging
• Standard accessories
For private label and custom projects, packaging and documentation can be adjusted based on market needs.
Optional support may include:
• Logo customization
• Neutral packaging
• Custom color box
• Product label design
• User manual customization
• Outer carton design
• Barcode and SKU support
• Market-specific documentation support
• Sample support before bulk order
The final package can be confirmed based on order quantity, sales channel, and branding requirements.
FAQ
—
1. Why are some LEDs not bright or dim when in use?
Near-infrared light is invisible to the naked eye, so some LEDs may look dim or not lit at all. This is normal and does not mean the
LEDs are not working.
2. Will it harm my eyes?
Do not look directly into the LEDs. The device comes with goggles to help reduce glare and improve comfort during use.
3. Can I use the device every day?
For general use, 15 minutes per session and 3-5 sessions per week is recommended. Once results are visible, reduce to 2-3
sessions per week. Overuse may cause skin redness or dryness.
4. Can red light therapy be used with skin care products?
Mild moisturizing essence, face cream, sunscreen, and other gentle products with moisturizing, repairing, or antioxidant benefits
may be used as part of a skin care routine.
5. How long until I start to see visible results?
Some consumer perception studies report visible improvement in skin tone and fine lines after about 5-6 weeks. Actual results
may vary depending on the user and usage consistency.
6. Is LED light therapy safe to use?
LED light therapy is generally considered safe and suitable for many skin types. Start slowly with 10 minutes per session to test
individual tolerance.
7. Can the light penetrate clothing?
Near-infrared light may penetrate clothing to some degree, but red light does not effectively penetrate fabric. For better exposure,
we generally recommend exposing clean, bare skin to the light as the usage environment allows.
8. What is the difference between red and near-infrared light?
Red light is mainly absorbed by the skin and may support collagen production and skin condition improvement. Near-infrared light
reaches deeper tissue and may support muscle relaxation, cellular vitality, and overall recovery.
9. Can pregnant or nursing women use red light therapy?
There is no sufficient clinical research on red light therapy use for pregnant or nursing subjects. Do not use the device if pregnant
or lactating before consulting with your healthcare provider.
10. Does the light produce heat?
Yes, the panel may feel warm during use, but it primarily delivers light energy rather than heat energy. The intended effect comes
from the light itself, not from heating the body like a sauna or heating pad.
