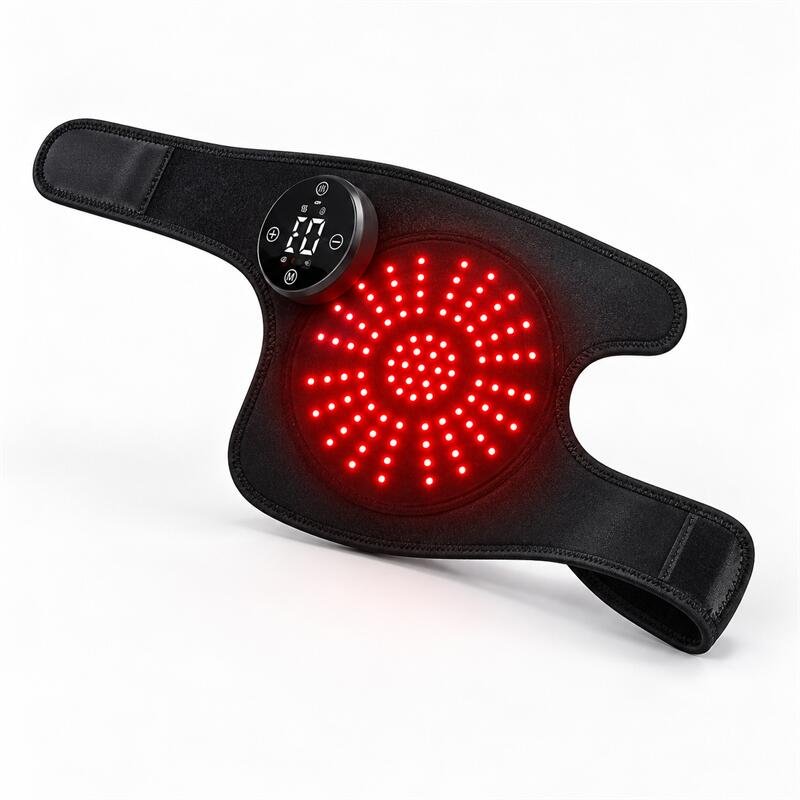

The wrap contains 99 triple-chip LED modules arranged around the central treatment area. Visible red light and invisible near-infrared light are delivered directly to the covered joint area.
Users can adjust the light level, massage mode and intensity from the controller. Several controller and battery options are available, with an optional remote control for easier operation.
The same wrap can be fitted around different parts of the body. This makes it a practical option for buyers who want one product for the knee, shoulder and elbow instead of purchasing several separate devices.

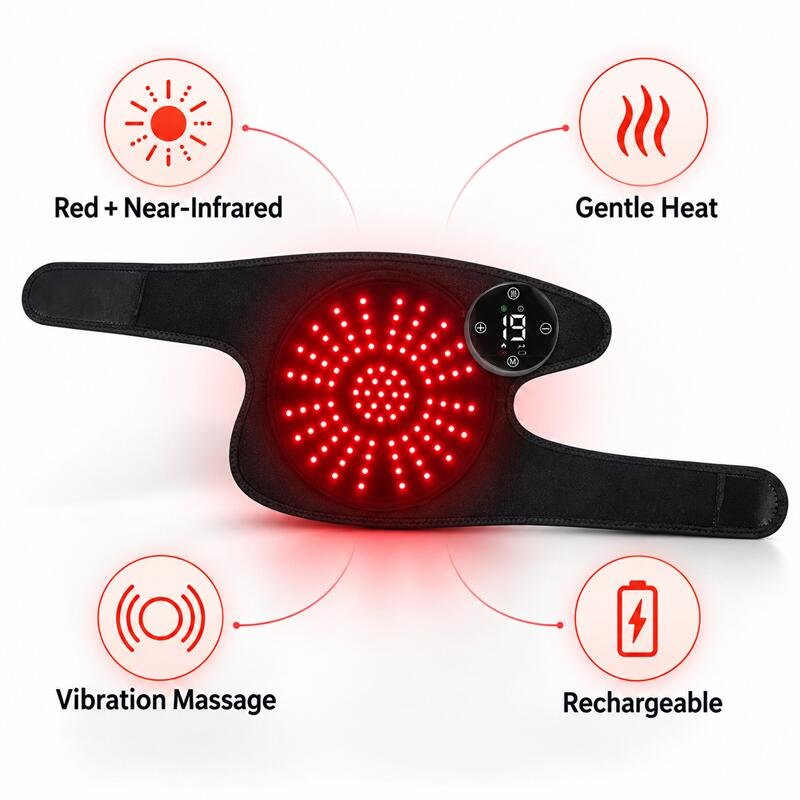

Key Features
Red and Near-Infrared Light
The standard configuration combines 630nm red light with 850nm near-infrared light. Other wavelength combinations can be discussed for OEM orders.

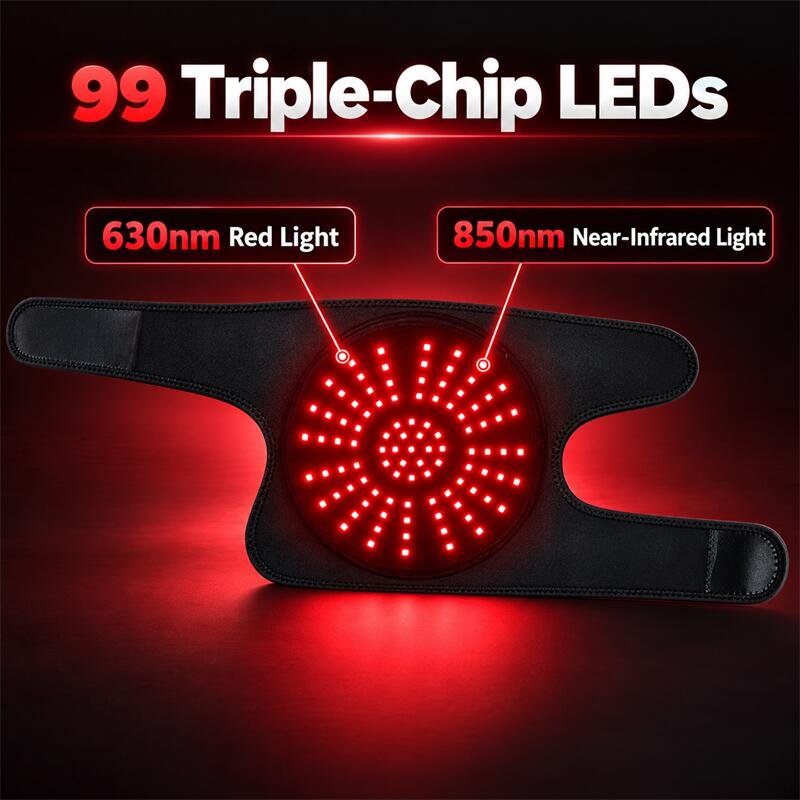

99 Triple-Chip LED Modules
The circular LED layout provides even coverage across the central therapy area. Each module contains multiple light chips rather than a single conventional LED.

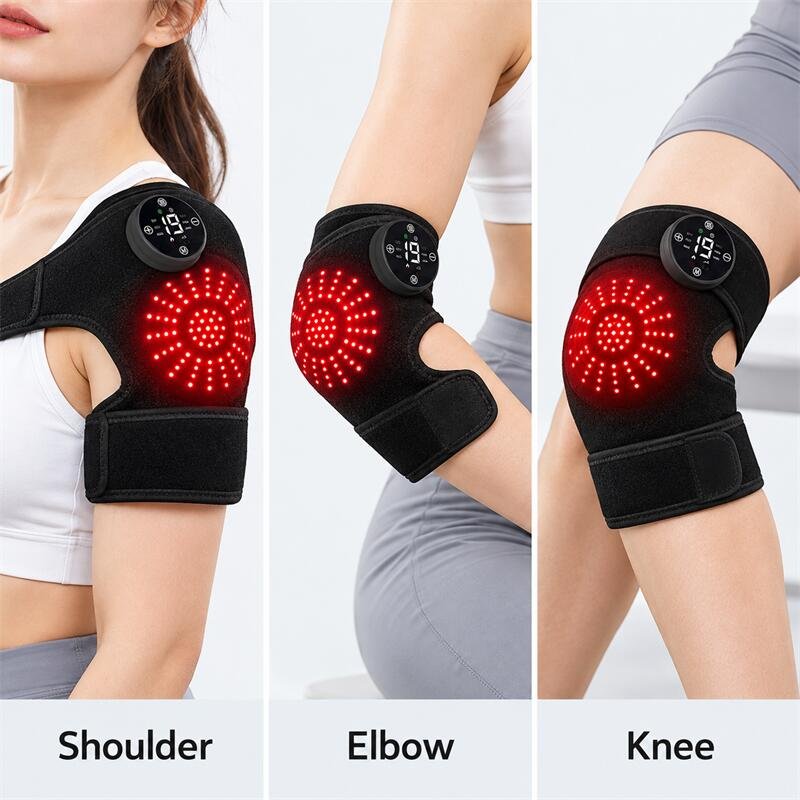

One Wrap for Multiple Joints
The adjustable design can be used on:
- Knees
- Shoulders
- Elbows
- Upper arms
- Thighs and calves, depending on body size
Heat and Vibration Massage
Light therapy can be used together with heat and vibration, or adjusted according to the selected controller and program.
Adjustable Controls
The standard control system provides:
- 3 light levels
- 6 massage modes
- 19 intensity levels
Rechargeable and Cordless
The detachable controller has a built-in rechargeable battery and Type-C charging. Battery capacities from 1000mAh to 3000mAh are available.
Optional Remote Control
The wrap can be supplied with or without a wireless remote. Remote control is useful when the controller is difficult to reach during shoulder or knee use.
Optional Protective Film
A transparent film can be added over the LED area. It creates a smoother surface that is easier to wipe after use.
Product Specifications
| Item | Specification |
|---|---|
| Model | WF034 |
| Product type | Rechargeable red light therapy joint wrap |
| Recommended areas | Knee, shoulder, elbow, arm, thigh and calf |

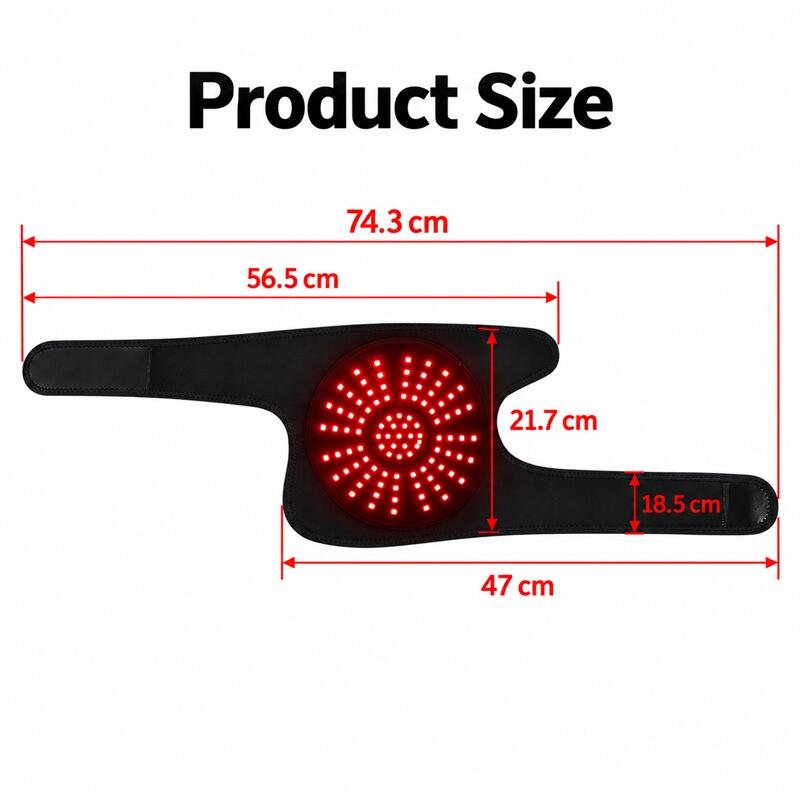

| Overall size | Approximately 74.3 × 21.7 cm |
| LED quantity | 99 triple-chip LED modules |
| Standard wavelengths | 630nm red light + 850nm near-infrared light |
| Light adjustment | 3 levels |
| Massage programs | 6 modes |
| Intensity adjustment | 19 levels |
| Functions | Red light, near-infrared light, heat and vibration |
| Battery options | 1000mAh, 2000mAh or 3000mAh |
| Charging connection | Type-C |
| Rated charging voltage | 5V |
| Input current | Below 2000mA |
| Output power | Approximately 0.5–10W |
| Controller | Detachable magnetic controller |
| Remote control | Optional |
| LED protective film | Optional |
| Main material | Flexible neoprene-style fabric and ABS controller housing |
| Color | Black; custom colors available |
| Logo and packaging | Customizable |
Specifications may vary according to the selected controller, battery and customized configuration.
Available Configurations
| Configuration | Battery | Controller Style | Remote |
|---|---|---|---|
| Basic version | 1000mAh | Compact controller | Optional |
| Standard version | 2000mAh | Round or curved controller | Optional |
| Extended battery version | 3000mAh | Rectangular display controller | Optional |
| Wrap only | Not included | Not included | Not included |
The 1000mAh version provides approximately 90 minutes of operation under typical settings. The 2000mAh version can provide up to approximately 180 minutes. Actual operating time depends on the light, heat and vibration settings.
Why Buyers Choose This Design
- Fits several commonly treated joints
- Flexible construction is easier to position than a rigid device
- Adjustable straps accommodate different users
- Cordless design allows more freedom of movement
- Detachable controller simplifies storage and cleaning
- Multiple controller and battery options suit different price points
- Suitable for private-label and customized product lines
OEM and ODM Customization
We can customize the product for distributors, therapy brands and private-label projects.
Available options include:
- Custom logo
- Custom product color
- Wavelength combinations
- LED quantity and layout
- Controller design
- Battery capacity
- Remote-control configuration
- Transparent LED protective film
- Display language
- Fabric and strap length
- Retail box and user manual
Please confirm the required controller, battery capacity, remote control and protective-film option when requesting a quotation.

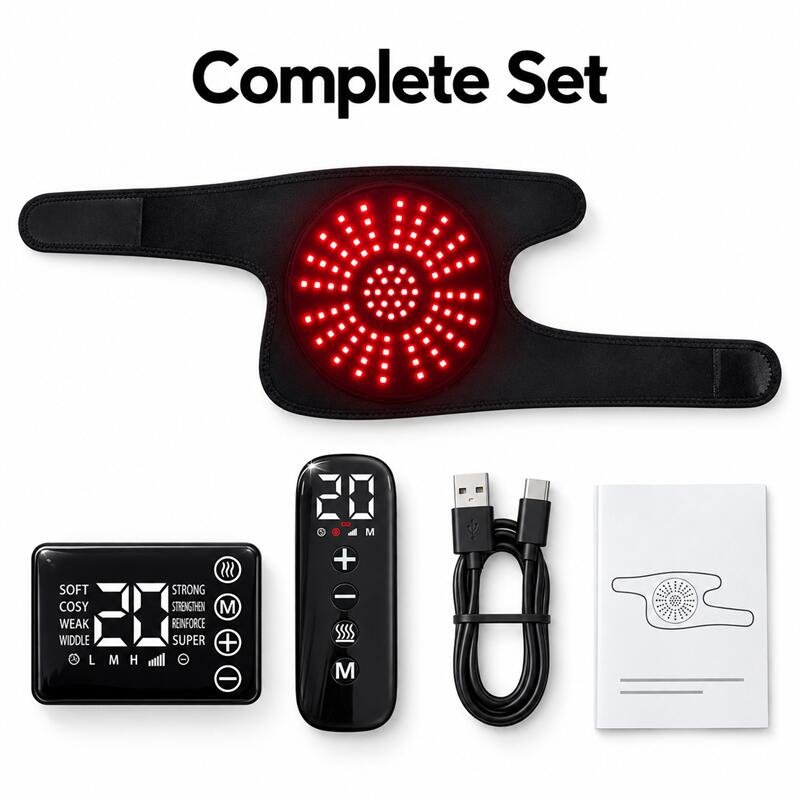

What Is Included
A standard complete set includes:
- 1 × red light therapy joint wrap
- 1 × rechargeable controller
- 1 × Type-C charging cable
- 1 × user manual
- 1 × retail box
- 1 × remote control, if selected
How to Use

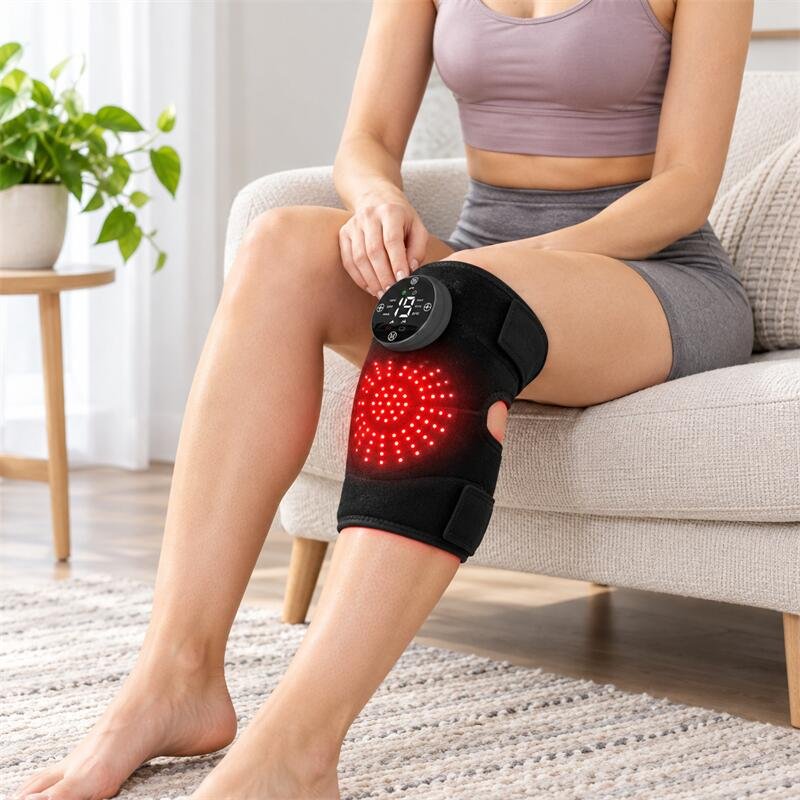

- Position the LED area over the knee, shoulder or elbow.
- Secure the wrap with the adjustable hook-and-loop straps.
- Attach the magnetic controller.
- Select the light level, massage mode and intensity.
- After use, switch off the controller and remove the wrap.
Start with a comfortable setting and follow the instructions supplied with the selected configuration.
Frequently Asked Questions
Can the same wrap be used on different joints?
Yes. Its flexible shape and adjustable straps allow it to be fitted around the knee, shoulder and elbow. Fit may vary depending on the user’s body size.
Are all 99 LEDs visible?
No. The red-light chips are visible, while the 850nm near-infrared chips produce light that is mostly invisible to the human eye.
Does it work without being connected to a wall outlet?
Yes. The controller contains a rechargeable battery, so the wrap can be used without a power cable during operation.
Is the remote control included?
The remote is optional. Both remote and non-remote configurations are available.
What is the difference between versions with and without protective film?
The film covers the LED area with a smooth transparent surface, making it easier to wipe clean. The version without film provides more direct contact with the fabric-mounted LEDs.
Can the wrap be washed?
Do not immerse the product in water. Remove the controller and wipe the surface with a soft, slightly damp cloth. Allow it to dry completely before use.
Can the wavelengths be customized?
Yes. The standard version uses 630nm and 850nm. Other red and near-infrared wavelength combinations can be discussed for bulk orders.
Can you customize the straps for larger users?
Yes. Strap length, product dimensions and fitting structure can be adjusted for qualifying OEM orders.
Is this a medical device?
The standard product is intended for general wellness and personal-care applications. It is not a replacement for professional medical diagnosis or treatment.
