This rechargeable red light therapy wrap is made for targeted use on the arm, thigh, knee or calf. Its flexible U-shaped design wraps around different body areas and stays in place with adjustable hook-and-loop straps.

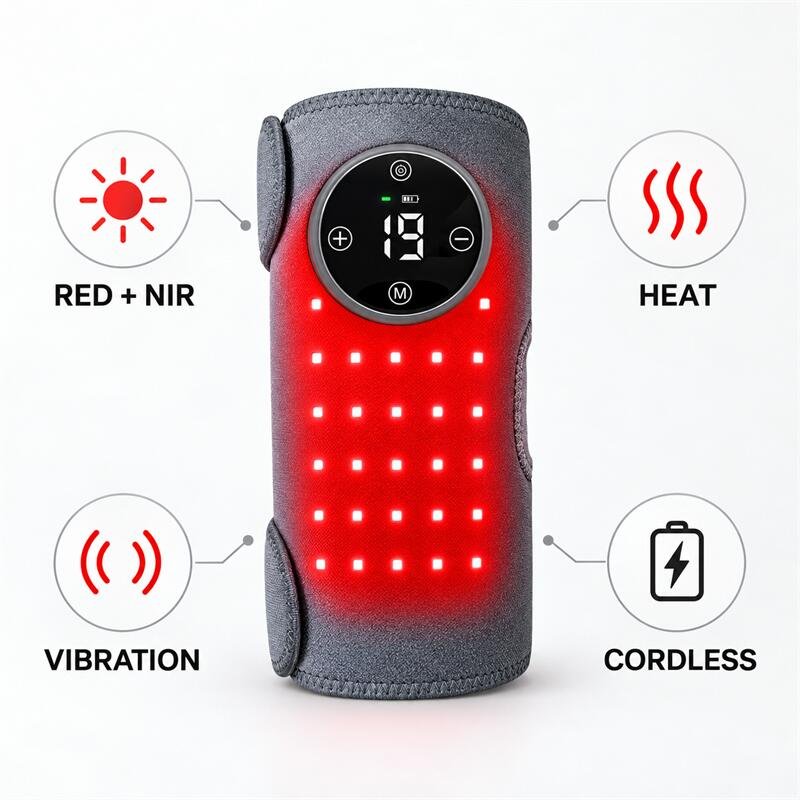

The wrap combines 660nm red light, 850nm near-infrared light, heat and vibration massage in one portable unit. A built-in rechargeable battery means it can be used without remaining connected to a wall outlet.
Different controller and battery configurations are available, including optional remote control. This makes the product suitable for home wellness brands, sports recovery products and private-label projects.
Key Features

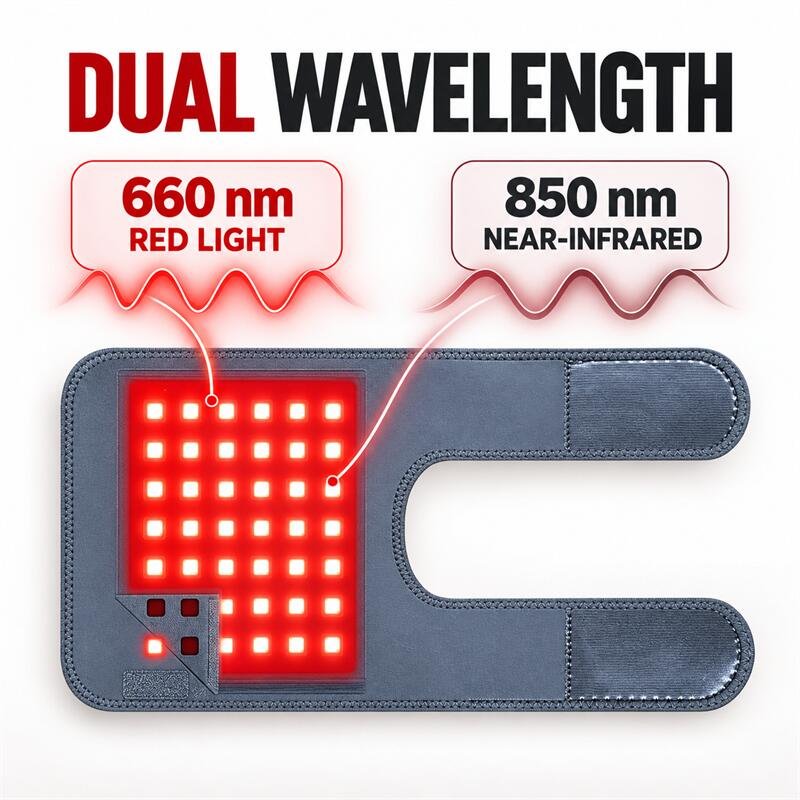

660nm Red Light and 850nm Near-Infrared Light
The 36 triple-chip LED modules provide both visible red light and near-infrared light. The two wavelengths are commonly used together in localized wellness and recovery routines.
Suitable for Multiple Body Areas
The adjustable design can be wrapped around the:
- Forearm or upper arm
- Thigh
- Knee
- Calf
The straps allow the fit to be adjusted without needing a separate product for each area.
Heat and Vibration Massage
A graphene heating element provides a warming function, while the built-in miniature motor produces vibration massage. Settings can be adjusted through the attached controller.
Cordless and Rechargeable
Battery options range from 2000mAh to 3000mAh. The controller attaches magnetically to the wrap, keeping the product compact and free from long power cables during use.
Adjustable Settings
Depending on the selected controller, the product offers:
- 3 light output levels
- 6 or 8 massage modes
- 19 or 20 intensity levels
- Optional handheld remote control
- English-language display option

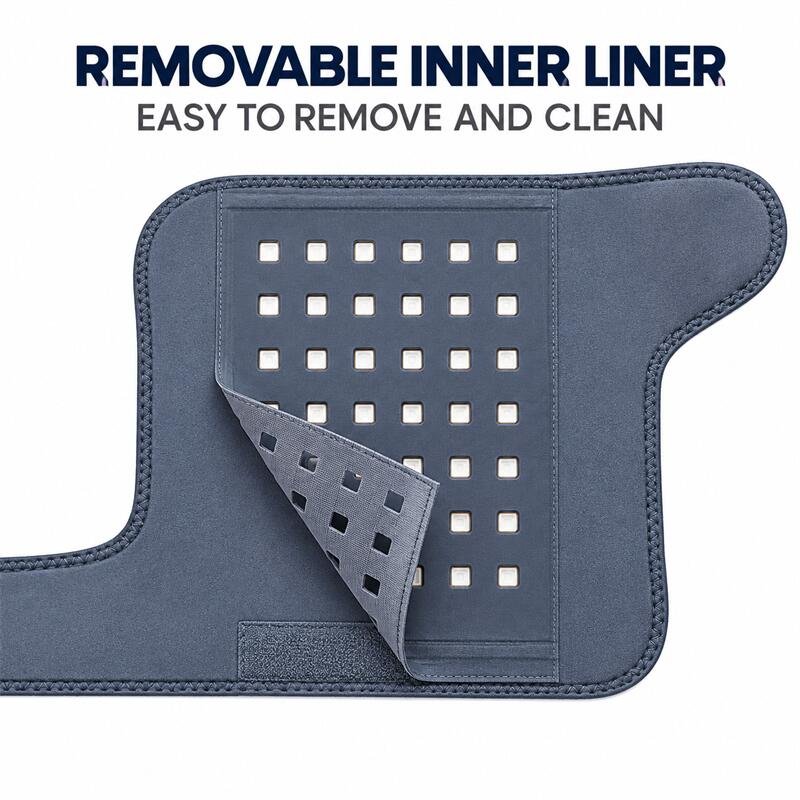

Removable Inner Liner
The inner liner can be removed for cleaning. The controller and electronic section should always be detached and kept dry.
Product Specifications
| Item | Specification |
|---|---|
| Model | WF033 |
| Product Type | Rechargeable red light therapy wrap |
| Main Applications | Arm, thigh, knee and calf |

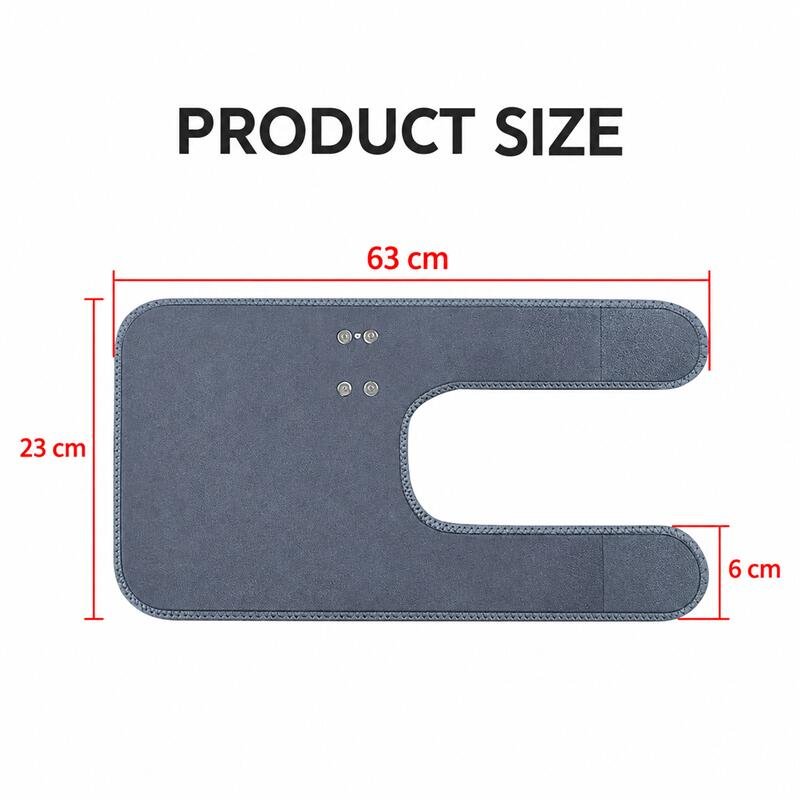

| Product Size | 63 × 23 cm |
| Strap Width | 6 cm |
| LED Quantity | 36 triple-chip LED modules |
| Wavelengths | 660nm red light and 850nm near-infrared light |
| Light Levels | 3 levels |
| Additional Functions | Heat and vibration massage |
| Massage Programs | 6 or 8 modes, depending on controller |
| Intensity Levels | 19 or 20 levels, depending on controller |
| Battery Options | 2000mAh or 3000mAh |
| Rated Charging Voltage | 5V |
| Input Current | Less than 3000mA |
| Output Power | 0.5–10W |
| Charging Port | Type-C |
| Approximate Charging Time | About 45 minutes for the 2000mAh version; 3–4 hours for the 3000mAh version |
| Approximate Operating Time | Up to 120–180 minutes, depending on settings |
| Controller Installation | Magnetic attachment |
| Main Materials | ABS housing, flexible neoprene-style fabric, graphene heating element and removable liner |
| Remote Control | Optional |
| Display Language | English or Chinese |
| Washable Part | Removable inner liner only |
Charging and operating times may vary with the controller, battery capacity and selected intensity.
Available Configurations
| Controller | Battery | Remote Control | Best For |
|---|---|---|---|
| Round controller | 2000mAh | Optional | Compact everyday use |
| Oval controller | 2000mAh | Optional | Larger buttons and display |
| Rectangular controller | 3000mAh | Optional | Higher-capacity configuration |
Please confirm the required controller, battery and remote-control option when placing an order.
How to Use
- Position the light-emitting section over the target area.
- Wrap the straps around the arm or leg and fasten them securely.
- Keep the fit snug but not overly tight.
- Turn on the controller and select the required light, heat or massage setting.
- Begin with a low setting and increase it gradually if comfortable.
- Turn off the device and remove the controller before cleaning or storage.
OEM and Private-Label Options
The product can be prepared for different brands and markets. Available customization includes:
- Logo printing
- Fabric color
- Controller style
- Battery capacity
- Remote-control configuration
- English or customized display labels
- User manual and retail packaging
- LED and wavelength configuration, subject to project review
Package Contents
A standard set includes:
- 1 red light therapy wrap
- 1 rechargeable controller
- 1 removable inner liner
- 1 Type-C charging cable
- 1 user manual
- 1 packaging box
- 1 remote control, if selected
Frequently Asked Questions
Does the wrap fit both arms and legs?
Yes. The adjustable 63cm design can be used on the arm, thigh, knee or calf. The actual fit depends on the circumference of the target area.
Does it contain 36 or 72 LEDs?
The product contains 36 physical triple-chip LED modules. Each module supports the specified red and near-infrared wavelengths.
What wavelengths does it use?
The standard configuration combines 660nm red light and 850nm near-infrared light.
Is the remote control included?
The remote is optional. Versions with and without a remote are available.
Which battery should I choose?
The 2000mAh version is lighter and more compact. The 3000mAh version is intended for buyers who prefer a higher-capacity controller.
Can the whole product be washed?
No. Only the removable inner liner should be cleaned. The controller, LED section, charging port and other electronic components must be kept dry.
Can the controller display be supplied in English?
Yes. English-language controller displays are available for international orders.
Can the product be customized?
Yes. Logo, color, controller, battery, packaging and manual customization are available. Other changes can be evaluated according to the order quantity and technical requirements.
Is this product intended to replace medical treatment?
No. It is designed for personal wellness and localized recovery routines. Anyone with a medical condition, implanted electronic device, light sensitivity or other health concern should consult a qualified healthcare professional before use.
