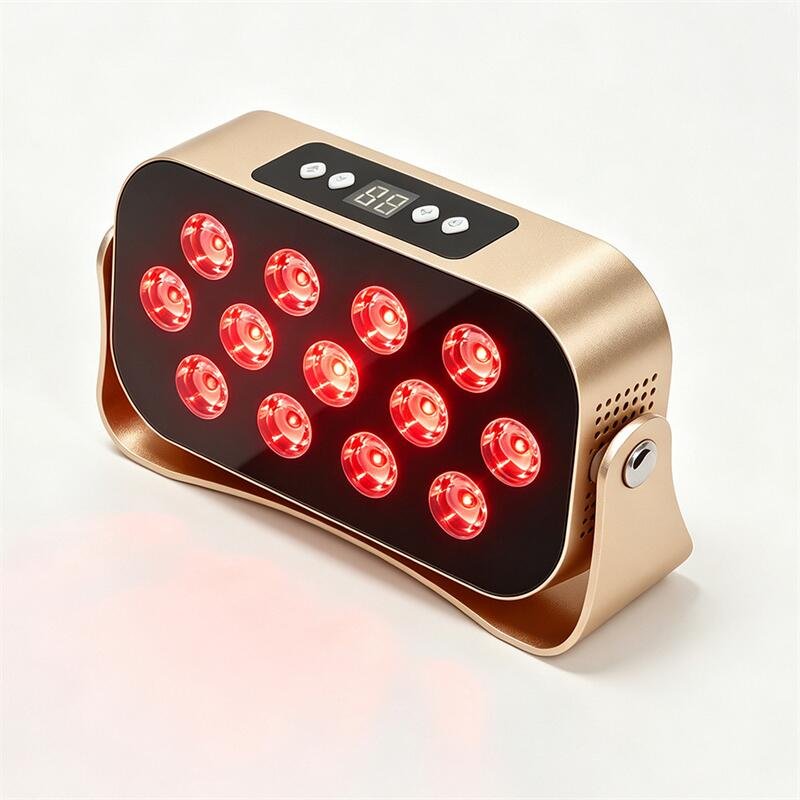

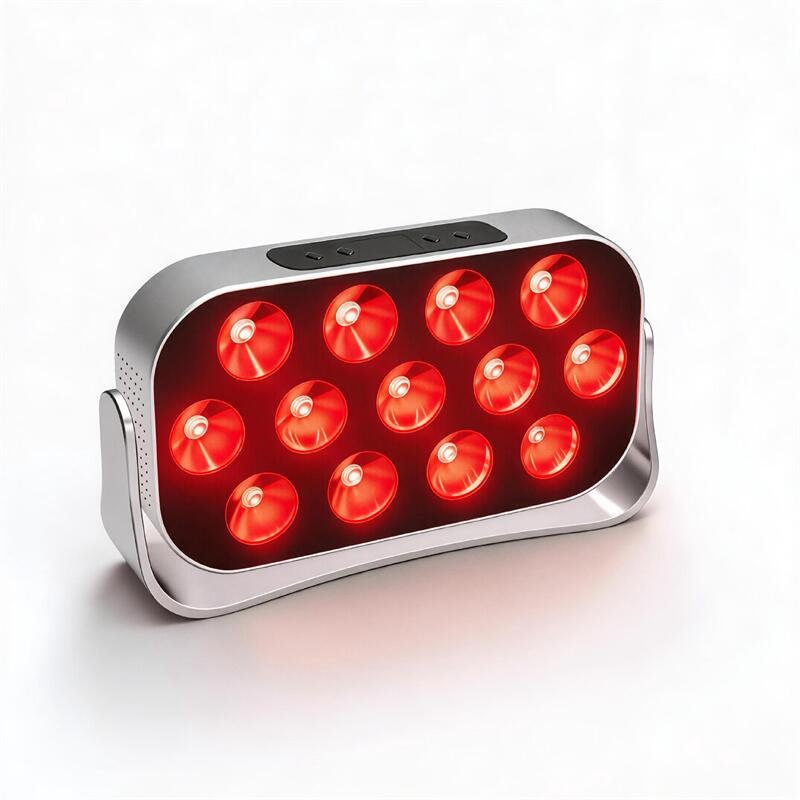

This compact handheld red light therapy device is developed for skincare, beauty-tech and wellness product lines. It uses 13 dual-chip LEDs to deliver 660 nm red light and 850 nm near-infrared light.
The two wavelengths can operate separately or together. Users can also select five intensity levels, six timer settings, continuous output or 10 Hz pulsed operation.
The aluminum-alloy housing, built-in 6000 mAh battery and integrated stand make the device suitable for home, office and travel use.
Product Description
This model combines the output of a small portable red light therapy panel with the convenience of a rechargeable handheld unit.
At the recommended working distance of 3 cm, it provides an illuminated area of approximately 17 × 10 cm. The digital display, four-button control and memory function keep daily operation simple.
The aluminum-alloy housing provides a clean, premium appearance while helping with heat dissipation. It is a practical base product for private-label skincare and beauty-tech projects.
Key Features
- 660 nm red light and 850 nm near-infrared light
- 13 dual-chip LED beads
- Separate or combined wavelength operation
- Five adjustable intensity levels
- Continuous and 10 Hz pulsed output
- Six timer settings from 5 to 30 minutes
- Automatic shut-off
- Memory function
- Digital display with four control buttons
- 6000 mAh rechargeable battery
- USB Type-C charging
- Aluminum-alloy housing
- Compact design with integrated stand
Four Operating Modes
| Mode | Output |
|---|---|
| Red | 660 nm red light |
| NIR | 850 nm near-infrared light |
| Combined | 660 nm red and 850 nm near-infrared light together |
| Pulse | 10 Hz pulsed operation |
The separate and combined light settings allow brands to provide different programs within one device.

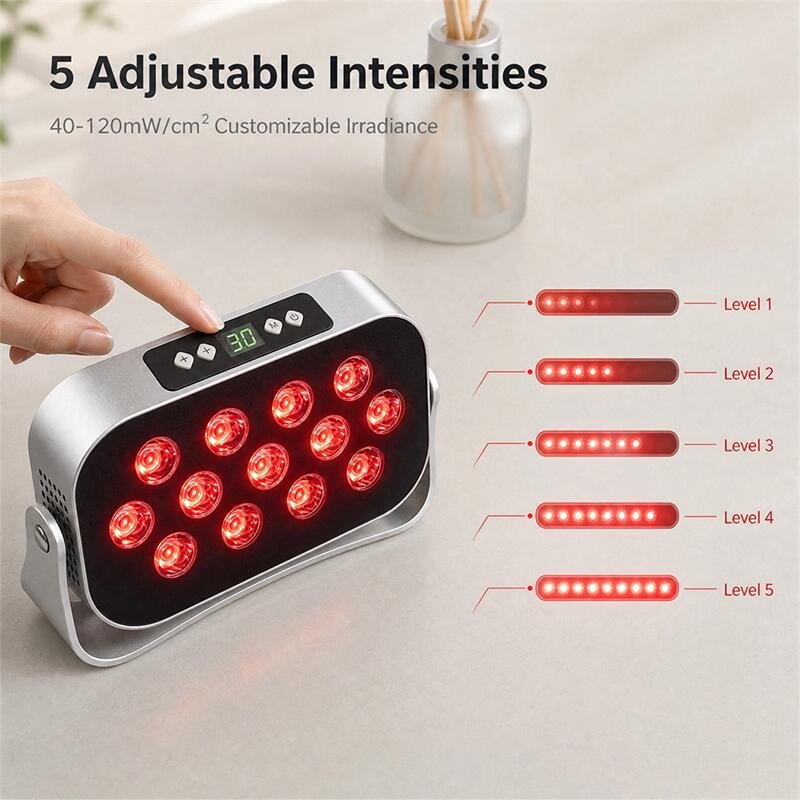

Five Adjustable Intensity Levels
| Level | Red + NIR Combined Irradiance |
|---|---|
| L1 | >40 mW/cm² |
| L2 | >56 mW/cm² |
| L3 | >72 mW/cm² |
| L4 | >99 mW/cm² |
| L5 | >120 mW/cm² |
The listed values apply to combined red and near-infrared output at the recommended distance of 3 cm. Actual measurements may vary with distance, operating mode, test equipment and production tolerance.
Technical Specifications
| Item | Specification |
|---|---|
| Product model | HP002 |
| Product type | Portable red and near-infrared light device |
| Housing material | Aluminum alloy |
| LED quantity | 13 dual-chip LEDs |
| Wavelengths | 660 nm red + 850 nm near-infrared |
| Wavelength tolerance | ±5 nm |
| Beam angle | 30° |
| Intensity settings | Five levels |
| Maximum listed irradiance | >120 mW/cm² at L5 |
| Light channels | Red and NIR, separate or simultaneous |
| Emission modes | Continuous and 10 Hz pulsed |
| Timer settings | 5 / 10 / 15 / 20 / 25 / 30 minutes |
| Automatic shut-off | Yes |
| Memory function | Yes |
| Recommended distance | 1.2 in / 3 cm |
| Illuminated area | 6.7 × 3.9 in / 17 × 10 cm |
| Rated power | 15W |
| Battery | 6000 mAh, 3.7V |
| Charging input | 5V / 3A |
| Charging port | USB Type-C |
| Listed operating time | Up to 300 minutes at the lowest setting |
| Highest-setting operating time | Approximately 60 minutes |
| Controls | Power, mode, timer and intensity |
| Display | Digital display |
| Waterproof rating | Not waterproof |
Battery operating time depends on the selected wavelength, intensity level, pulse setting and battery condition.
Portable and Easy to Position
The rechargeable battery allows the device to operate without remaining connected to a power outlet. Its integrated stand helps users position the light near the selected area.
Compared with a full-size panel, this handheld red light therapy panel is easier to carry and store. It provides a practical balance between light output, coverage area and portability.
Red and Near-Infrared Light
The 660 nm visible red channel is suitable for skincare-focused beauty routines. The 850 nm near-infrared channel is invisible to the human eye and is commonly used in wellness and recovery products.
Both channels can be combined when a broader red and near-infrared light program is required.
The device may be positioned as part of a regular skincare, beauty or general wellness routine. Final product claims and instructions should follow the regulations of the destination market.
Simple Controls
The top control panel includes four buttons:
- Power
- Light mode
- Timer
- Intensity
The digital display shows the selected settings. The timer automatically switches off the device when the session ends, while the memory function saves the most recently used settings.
Applications
- Premium skincare brands
- Beauty-tech product companies
- Wellness and recovery product lines
- Private-label red light therapy products
- Beauty equipment distributors
- Online and offline retailers
- Spas and beauty service providers
- Corporate and promotional gift projects
OEM and Private-Label Customization
The device can be supplied as a standard ready-to-brand product or adjusted for an OEM/ODM project.
| Customization Area | Available Options |
|---|---|
| Product branding | Logo on the housing and product label |
| Appearance | Housing color, surface finish and decorative details |
| Light configuration | Wavelength and LED configuration, subject to technical review |
| Operating program | Intensity levels, timer presets and pulse settings |
| User interface | Button icons, display information and default settings |
| Packaging | Custom color box, inner tray, barcode and warning labels |
| User manual | Branded and multilingual versions |
| Accessories | Charging cable, protective glasses and customized bundles |
| Documentation | Product specifications, QC documents and testing support |
Customization options depend on order quantity and technical feasibility. Final specifications are confirmed through sample or pre-production approval.

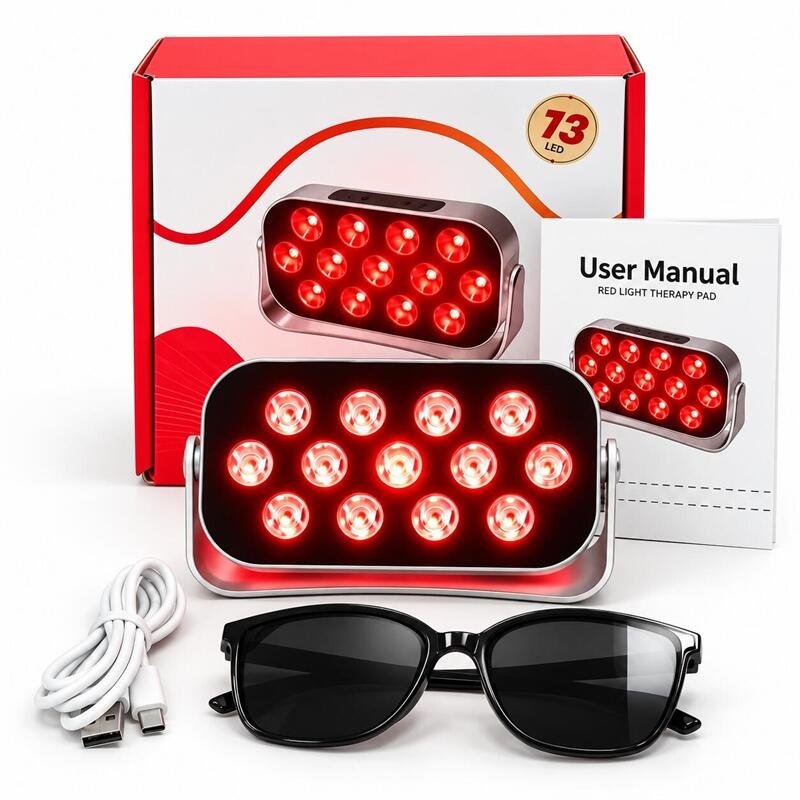

Standard Package
- Red and near-infrared light device
- Color box
- User manual
- USB Type-C charging cable
- Protective glasses
Package contents can be adjusted for private-label orders.
Basic Operation
- Charge the device with the supplied USB Type-C cable.
- Position it approximately 3 cm from the selected area.
- Select red light, near-infrared light or combined output.
- Choose continuous or 10 Hz pulsed operation.
- Select the required intensity level.
- Set a session time between 5 and 30 minutes.
Follow the supplied user manual and eye-protection instructions. The device is not waterproof and should be kept away from water and wet environments.
Frequently Asked Questions
What wavelengths does the device use?
It uses 660 nm red light and 850 nm near-infrared light, with a listed wavelength tolerance of ±5 nm.
Are there 13 red LEDs and 13 near-infrared LEDs?
The device uses 13 dual-chip LED beads. Each LED position contains both red and near-infrared chips.
Can the wavelengths operate separately?
Yes. Red and near-infrared light can operate separately or simultaneously.
How many intensity levels are available?
There are five intensity levels. The listed combined irradiance ranges from more than 40 mW/cm² to more than 120 mW/cm².
What is the recommended working distance?
The recommended distance is approximately 3 cm.
What area does the light cover?
At the recommended distance, the illuminated area is approximately 17 × 10 cm.
How long does the battery last?
The listed operating time is up to 300 minutes at the lowest setting and approximately 60 minutes at the highest setting. Actual runtime depends on the selected mode and intensity.
Does it remember the previous settings?
Yes. The memory function saves the most recently used settings.
Is the device waterproof?
No. It should not be immersed in water or used in wet environments.
Can it be customized for our brand?
Yes. Logo application, housing details, packaging, manuals, operating programs and accessory configurations can be customized according to project requirements.
Develop Your Private-Label Product
Send us your target market, branding requirements, estimated quantity and preferred packaging.
We will confirm the standard configuration, available customization options, sample arrangement and quotation for your project.
